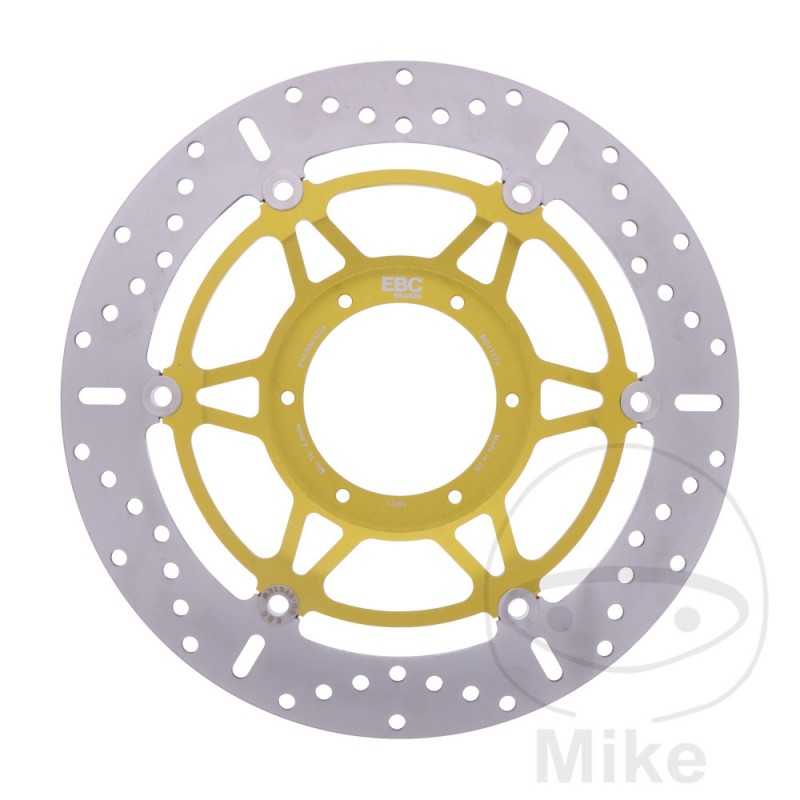

EBC Brake disc stainless steel X / XC 760.07.60
€187.15
€248.76
Save €61.61Tax included
EBC X / XC series: fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 330MM
INSIDE DIAMETER: 94.3MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.5MM
FILLING: 12.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 900 RR FIREBLADE 147 CV, 108 KW 4CIL. SC44B 1 BASTIDORES: JH2 SC44B-1M100001-- 2001
HONDA CBR 900 RR FIREBLADE 147 CV, 108 KW 4CIL. SC44B Y BASTIDORES: JH2 SC44B-YM000001-- 2000
HONDA CBR 900 RR FIREBLADE 150 CV, 110 KW 4CIL. SC50A 2 BASTIDORES: JH2 SC50A-2M000001-- 2002
HONDA CBR 900 RR FIREBLADE 150 CV, 110 KW 4CIL. SC50A 3 BASTIDORES: JH2 SC50A-3M000001-- 2003
HONDA CBR 900 RR FIREBLADE 98 CV, 72 KW 4CIL. SC50B 2 BASTIDORES: JH2 SC50B-2M000001-- 2002
HONDA CBR 900 RR FIREBLADE 98 CV, 72 KW 4CIL. SC50B 3 BASTIDORES: JH2 SC50B-3M100001-- 2003
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 330MM
INSIDE DIAMETER: 94.3MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.5MM
FILLING: 12.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 900 RR FIREBLADE 147 CV, 108 KW 4CIL. SC44B 1 BASTIDORES: JH2 SC44B-1M100001-- 2001
HONDA CBR 900 RR FIREBLADE 147 CV, 108 KW 4CIL. SC44B Y BASTIDORES: JH2 SC44B-YM000001-- 2000
HONDA CBR 900 RR FIREBLADE 150 CV, 110 KW 4CIL. SC50A 2 BASTIDORES: JH2 SC50A-2M000001-- 2002
HONDA CBR 900 RR FIREBLADE 150 CV, 110 KW 4CIL. SC50A 3 BASTIDORES: JH2 SC50A-3M000001-- 2003
HONDA CBR 900 RR FIREBLADE 98 CV, 72 KW 4CIL. SC50B 2 BASTIDORES: JH2 SC50B-2M000001-- 2002
HONDA CBR 900 RR FIREBLADE 98 CV, 72 KW 4CIL. SC50B 3 BASTIDORES: JH2 SC50B-3M100001-- 2003
760.07.60
10 Items
Data sheet
- EXTERNAL DIAMETER
- 330MM
- CIRCLE MEASUREMENT
- 110 MM
- HOLE DIAMETER
- 6.3MM
- INSIDE DIAMETER
- 110 MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 6
- STUFFED
- 12.5MM
- THICKNESS
- 4.5 MM
