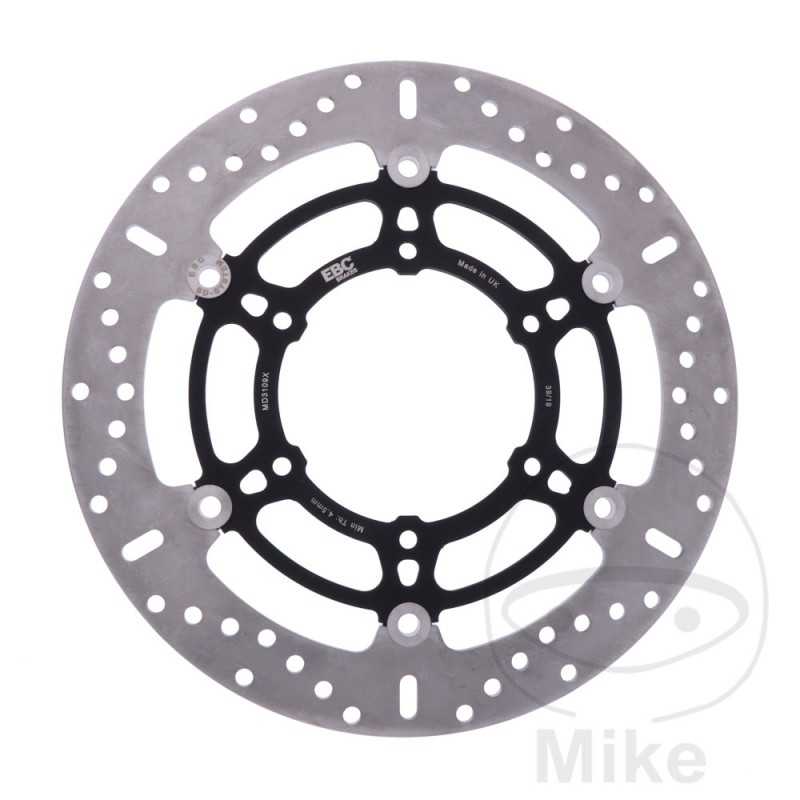

EBC Brake disc stainless steel X / XC 760.05.37

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new ´´X´´ and ´´XC´´ series is reduced by 5-10% more thanks to the 6-rivet system with a light inner ring, which in turn is an improvement over discs conventional brake.

The new brake discs are equipped with EBC's unique and patented SD system, whose square rivets in the brake disc recesses under the heat generated during braking allow the outer and inner ring to expand without affecting the rivet connection.

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem that causes 100% of brake disc defects caused by disc deformations and vibrations.

What is the SD system? This is EBC's new square rivet system. With this system, deformation of the brake disc is completely prevented, the service life of the brake disc is increased, and the durability of the braking effect is improved.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 101.2MM
HOLES QUANTITY: 6
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-S 1000 A ABS 145,5 CV, 107 kw 4cil. DG1122 L6 Bastidores: DG1122-G0100001-- 2015-2017
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 L8 Bastidores: DG3222-J0100001-DG3222-J0199999 2018
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 L9 Bastidores: DG3222-K7100001-DG3222-K7199999 2019
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 M0 Bastidores: DG3222-L7100001-DG3222-L7999999 2020-2021
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG2122 L6 Bastidores: DG2122-G0100001-- 2015-2017
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 L8 Bastidores: DG4522-J0100001-DG4522-J0199999 2018
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 L9 Bastidores: DG4522-K7100001-DG4522-K7199999 2019
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 M0 Bastidores: DG4522-L7100001-DG4522-L7999999 2020-2021
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 L8 Bastidores: DG3222-J0100001-DG3222-J0199999 2018
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 L9 Bastidores: DG3222-K7100001-DG3222-K7199999 2019
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 M0 Bastidores: DG3222-L7100001-DG3222-L7999999 2020-2021
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 L8 Bastidores: DG4522-J0100001-DG4522-J0199999 2018
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 L9 Bastidores: DG4522-K7100001-DG4522-K7199999 2019
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 M0 Bastidores: DG4522-L7100001-DG4522-L7999999 2020-2021
Suzuki GSX-S 1000 F 145,5 CV, 107 kw 4cil. DG1133 L6 Bastidores: DG1133-G0100001-- 2015-2016
Suzuki GSX-S 1000 FA ABS 145,5 CV, 107 kw 4cil. DG1144 L6 Bastidores: DG1144-G0100001-- 2015-2017
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 L8 Bastidores: DG3244-J0100001-DG3244-J0199999 2018
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 L9 Bastidores: DG3244-K7100001-DG3244-K7199999 2019
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 M0 Bastidores: DG3244-L7100001-DG3244-L7999999 2020-2021
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG2144 L6 Bastidores: DG2144-G0100001-- 2015-2017
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 L8 Bastidores: DG4544-J0100001-DG4544-J0199999 2018
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 L9 Bastidores: DG4544-K7100001-DG4544-K7199999 2019
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 M0 Bastidores: DG4544-L7100001-DG4544-L7999999 2020-2021
Suzuki GSX-S 1000 FUF 106 CV, 78 kw 4cil. DG2133 L6 Bastidores: DG2133-G0100001-- 2015-2016
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 L8 Bastidores: DG3244-J0100001-DG3244-J0199999 2018
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 L9 Bastidores: DG3244-K7100001-DG3244-K7199999 2019
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 M0 Bastidores: DG3244-L7100001-DG3244-L7999999 2020-2021
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 L8 Bastidores: DG4544-J0100001-DG4544-J0199999 2018
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 L9 Bastidores: DG4544-K7100001-DG4544-K7199999 2019
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 M0 Bastidores: DG4544-L7100001-DG4544-L7999999 2020-2021
Suzuki GSX-S 1000 GT TRQ ABS 152 CV, 112 kw 4cil. EK12AZ M2 Bastidores: EK12AZ-N7100001-EK12AZ-N7999999 2022
Suzuki GSX-S 1000 GT TRQ Traval Edition ABS 152 CV, 112 kw 4cil. EK12AZ M2 Bastidores: EK12AZ-N7100001-EK12AZ-N7999999 2022
Suzuki GSX-S 1000 RQ ABS 152 CV, 112 kw 4cil. EK11AZ M2 Bastidores: EK11AZ-N7000001-EK11AZ-N7999999 2022
Suzuki GSX-S 1000 SRQ Katana ABS 150 CV, 110 kw 4cil. DG3255 M0 Bastidores: DG3255-L7100001-DG3255-L7999999 2019-2020
Suzuki GSX-S 1000 SRQ Katana ABS 150 CV, 110 kw 4cil. DG3255 M1 Bastidores: DG3255L-7100001-DG3255L-7999999 2021
Suzuki GSX-S 1000 SRQ Katana ABS 152 CV, 112 kw 4cil. EK13AZ M2 Bastidores: EK13AZ-N7100001-EK13AZ-N7999999 2022
Suzuki GSX-S 1000 STQ Katana ABS 106 CV, 78 kw 4cil. DG4555 M0 Bastidores: DG4555-L7100001-DG4555-L7999999 2019-2020
Suzuki GSX-S 1000 STQ Katana ABS 106 CV, 78 kw 4cil. DG4555 M1 Bastidores: DG4555-L7100001-DG4555-L7999999 2021
