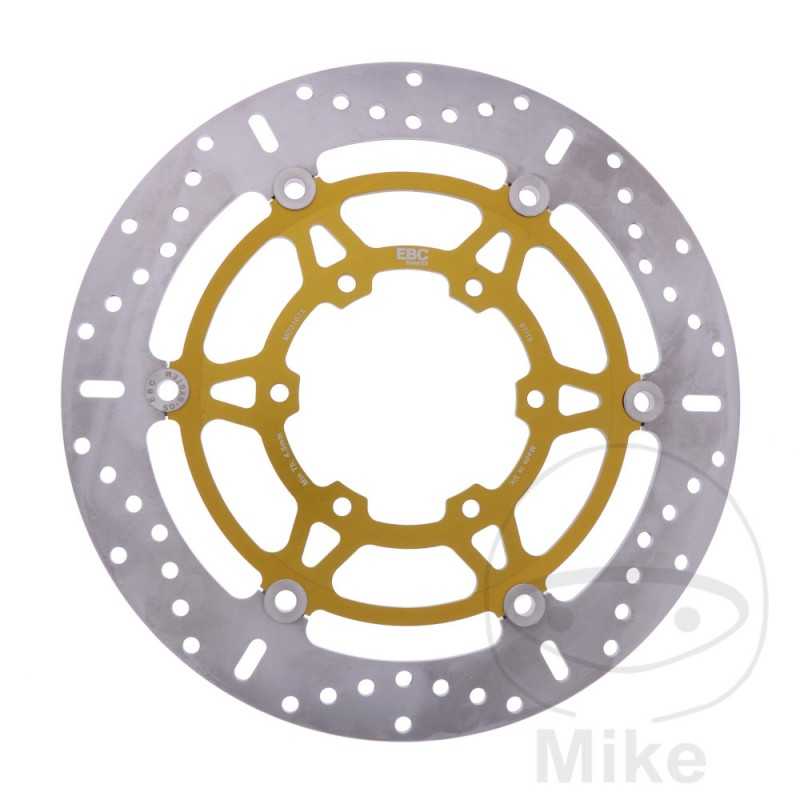

EBC Brake disc stainless steel X / XC 760.05.36

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new ´´X´´ and ´´XC´´ series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn means an improvement over the previous ones. conventional brake discs

The new brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses allow the outer and inner ring to expand without restriction under the heat generated during braking, without damaging the brake disc. riveted joint.

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system eliminates this problem, which causes 100% of brake disc defects caused by disc deformation and vibration.

What is the SD system? It is the new square rivet system from EBC. This system completely prevents deformation of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
HOLES QUANTITY: 6
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ L7 Bastidores: DM11AZ-H2100001-DM11AZ-H2199999 2017
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ L8 Bastidores: DM11AZ-J2100001-DM11AZ-J2199999 2018
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ L9 Bastidores: DM11AZ-K7100001-DM11AZ-K7999999 2019
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ M0 Bastidores: DM11AZ-L7100001-DM11AZ-L7999999 2020
Suzuki GSX-R 1000 A ABS 202 CV, 149 kw 4cil. DM11AZ M1 Bastidores: DM11AZ-M7100001-DM11AZ-M7999999 2021
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ L7 Bastidores: DM11GZ-H2100001-DM11GZ-H2199999 2017
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ L8 Bastidores: DM11GZ-J2100001-DM11GZ-J2199999 2018
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ L9 Bastidores: DM11GZ-K7100001-DM11GZ-K7999999 2019
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ M0 Bastidores: DM11GZ-L7100001-DM11GZ-L7999999 2020
Suzuki GSX-R 1000 RA ABS 202 CV, 149 kw 4cil. DM11GZ M1 Bastidores: DM11GZ-M7100001-DM11GZ-M7999999 2021-2022
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ L7 Bastidores: DM11GZ-H2100001-DM11GZ-H2199999 2017
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ L8 Bastidores: DM11GZ-J2100001-DM11GZ-J2199999 2018
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ L9 Bastidores: DM11GZ-K7100001-DM11GZ-K7999999 2019
Suzuki GSX-R 1000 RZA ABS 202 CV, 149 kw 4cil. DM11GZ M0 Bastidores: DM11GZ-L7100001-DM11GZ-L7999999 2020
Suzuki GSX-R 1000 RZA Limited Edition ABS 202 CV, 149 kw 4cil. DM11GZ M1 Bastidores: DM11GZ-M7100001-DM11GZ-M7999999 2021-2022
Suzuki GSX-R 1000 ZA ABS 202 CV, 149 kw 4cil. DM11AZ M1 Bastidores: DM11AZ-M7100001-DM11AZ-M7999999 2021
