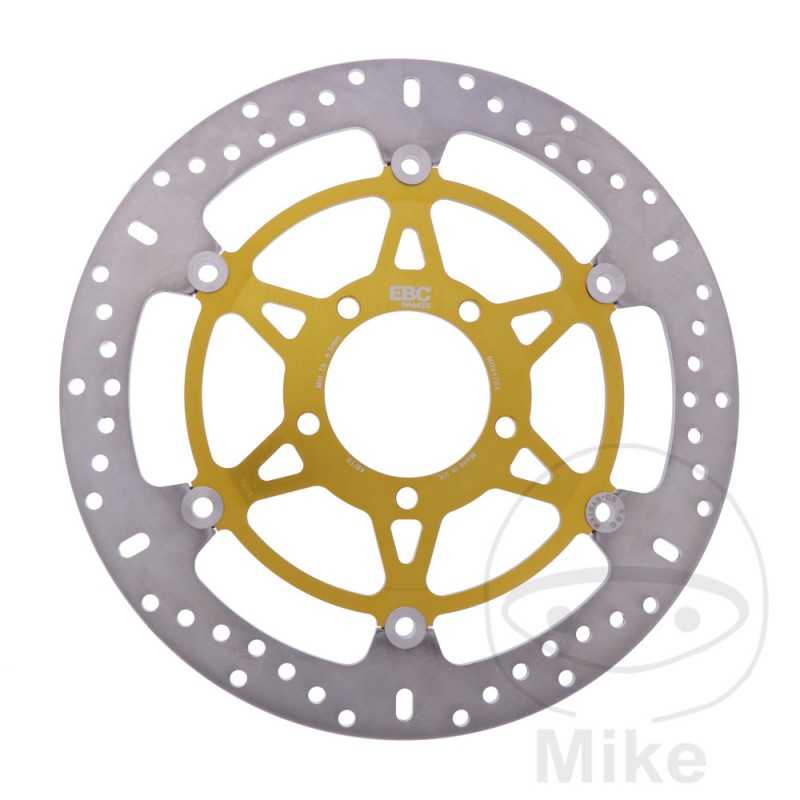

EBC Brake disc stainless steel X / XC 760.05.34

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new ´´X´´ and ´´XC´´ series is reduced by an additional 5-10% by the 6-rivet system with a lightweight inner ring, which in turn means an improvement over the previous ones. conventional brake discs

The new brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses allow the outer and inner rings to expand without restriction under the heat generated during braking, without affecting the seal. riveted

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system eliminates this problem, which causes 100% of brake disc defects caused by disc deformation and vibration.

What is the SD system? It is the new square rivet system from EBC. This system completely prevents deformation of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 330MM
INSIDE DIAMETER: 80.2MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZX-10R 1000 E Ninja KRT Replica ABS 203 CV, 149 kw 4cil. ZXT02EEA KFA Bastidores: ZXT02EEA henceforth00001-ZXT02EEA henceforth04000 2019
Kawasaki ZX-10R 1000 EL Ninja KRT Replica ABS 203 CV, 149 kw 4cil. ZXT02EEA F Bastidores: ZXT02EEA henceforth04001-ZXT02EEA-999999 2020
Kawasaki ZX-10R 1000 L Ninja ABS 203 CV, 149 kw 4cil. ZXT02LLA MFAN Bastidores: ZXT02LLA henceforth00001-ZXT02LLA-999999 2021
Kawasaki ZX-10R 1000 L Ninja ABS 203 CV, 149 kw 4cil. ZXT02LLA NFAN Bastidores: ZXT02LLA henceforth05001-ZXT02LLA-999999 2022
Kawasaki ZX-10R 1000 S Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA GF Bastidores: ZXT00SSA henceforth00001-ZXT00SSA henceforth08000 2016
Kawasaki ZX-10R 1000 S Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA HF Bastidores: ZXT00SSA henceforth08001-ZXT00SSA henceforth14000 2017
Kawasaki ZX-10R 1000 S Ninja ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA JF Bastidores: ZXT00SSA henceforth14001-ZXT00SSA-999999 2018
Kawasaki ZX-10R 1000 S Ninja KRT Replica ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA GFA Bastidores: ZXT00SSA henceforth00001-ZXT00SSA henceforth08000 2016
Kawasaki ZX-10R 1000 S Ninja KRT Replica ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA HFA Bastidores: ZXT00SSA henceforth08001-ZXT00SSA henceforth14000 2017
Kawasaki ZX-10R 1000 S Ninja KRT Replica ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA JFA Bastidores: ZXT00SSA henceforth14001-ZXT00SSA-999999 2018
Kawasaki ZX-10R 1000 S Ninja Winter Test Edition ABS 200/98 CV, 147/72 kw 4cil. ZXT00SSA GFB Bastidores: ZXT00SSA henceforth00001-ZXT00SSA henceforth08000 2016-2017
