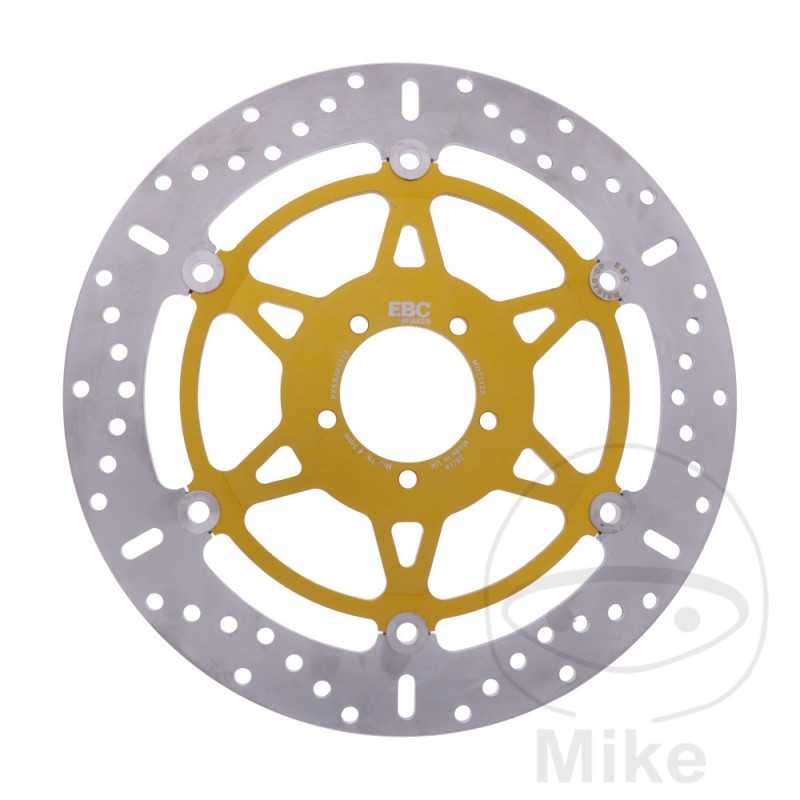

EBC Brake disc stainless steel X / XC 760.05.29

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new ´´X´´ and ´´XC´´ series is reduced by an additional 5-10% by the 6-rivet system with a lightweight inner ring, which in turn means an improvement over the previous ones. conventional brake discs

The new brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses allow the outer and inner rings to expand without restriction under the heat generated during braking, without affecting the seal. riveted

Such deterioration occurs when the brake disc heats up due to heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system eliminates this problem, which causes 100% of brake disc defects caused by disc deformation and vibration.

What is the SD system? It is the new square rivet system from EBC. This system completely prevents deformation of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM SUPER DUKE 1290 GT LC8 ABS 173 CV, 127 KW 2CIL. - BASTIDORES: --- 2016-2018
KTM SUPER DUKE 1290 GT LC8 ABS 175 CV, 128,7 KW 2CIL. - BASTIDORES: --- 2019-2020
KTM SUPER DUKE 1290 R LC8 ABS 173 CV, 127 KW 2CIL. - BASTIDORES: --- 2014-2016
KTM SUPER DUKE 1290 R LC8 ABS 177 CV, 130 KW 2CIL. - BASTIDORES: --- 2017-2019
KTM SUPER DUKE 1290 R LC8 ABS 180 CV, 132 KW 2CIL. - BASTIDORES: --- 2020
KTM SUPER DUKE 1290 R LC8 SPECIAL EDITION ABS 173 CV, 127 KW 2CIL. - BASTIDORES: --- 2016-2017
KTM SUPER DUKE 1290 RR LC8 ABS EURO5 180 CV, 132 KW 2CIL. - BASTIDORES: --- 2021-2022
YAMAHA YZF-R1 1000 SP 175 CV, 129 KW 4CIL. RN129 4B11 BASTIDORES: RN129 henceforth00301-- 2006
