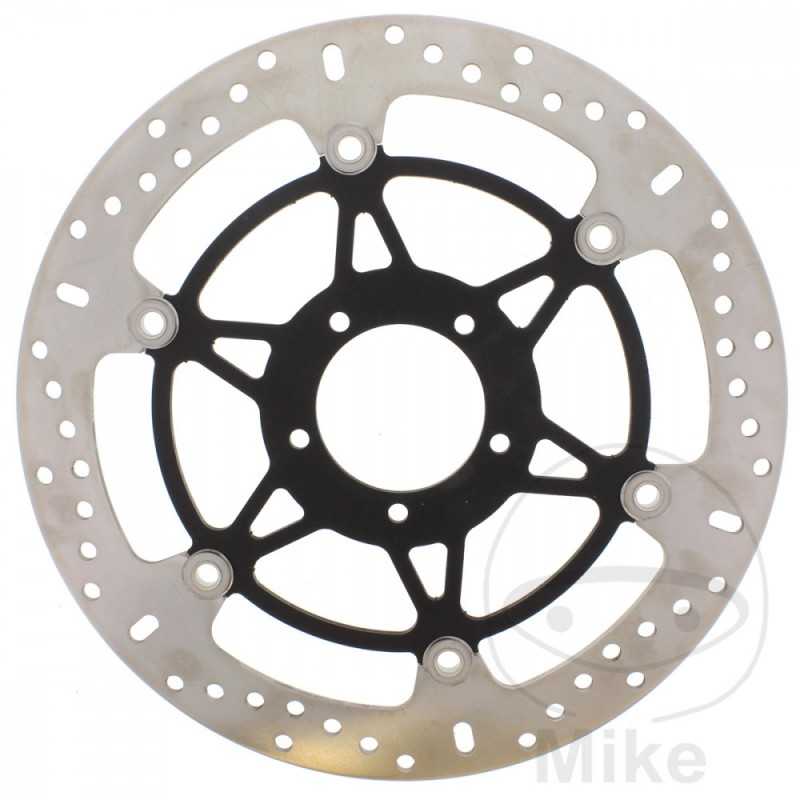

EBC Brake disc stainless steel X / XC 760.03.98

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 330MM
INSIDE DIAMETER: 72.2MM
CIRCLE SIZE: 90 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DUCATI SCRAMBLER 800 CAFE RACER ABS 46 CV, 34 KW 2CIL. KC02AA BASTIDORES: --- 2017
DUCATI SCRAMBLER 800 CAFE RACER ABS 46 CV, 34 KW 2CIL. KC02AA/KD35CR BASTIDORES: --- 2018
DUCATI SCRAMBLER 800 CAFE RACER ABS 46 CV, 34 KW 2CIL. KC06AA/KD01CR BASTIDORES: --- 2020-2021
DUCATI SCRAMBLER 800 CAFE RACER ABS 46 CV, 34 KW 2CIL. KC06AA/M6 BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 CAFE RACER ABS 73 CV, 54 KW 2CIL. KC02AA BASTIDORES: --- 2017
DUCATI SCRAMBLER 800 CAFE RACER ABS 73 CV, 54 KW 2CIL. KC02AA/KD35CR BASTIDORES: --- 2018
DUCATI SCRAMBLER 800 CAFE RACER ABS 73 CV, 54 KW 2CIL. KC06AA/KD01CR BASTIDORES: --- 2020-2021
DUCATI SCRAMBLER 800 CAFE RACER ABS 73 CV, 54 KW 2CIL. KC06AA/M6 BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 CLASSIC ABS 31 CV, 23 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 CLASSIC ABS 46 CV, 34 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 CLASSIC ABS 46 CV, 34 KW 2CIL. KA01AA/KC00AA/KD35AA BASTIDORES: --- 2017
DUCATI SCRAMBLER 800 CLASSIC ABS 46 CV, 34 KW 2CIL. KC00AA/KD35AA BASTIDORES: --- 2018-2020
DUCATI SCRAMBLER 800 CLASSIC ABS 73 CV, 54 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 CLASSIC ABS 73 CV, 54 KW 2CIL. KA01AA/KC00AA/KD35AA BASTIDORES: --- 2017
DUCATI SCRAMBLER 800 CLASSIC ABS 73 CV, 54 KW 2CIL. KC00AA/KD35AA BASTIDORES: --- 2018-2020
DUCATI SCRAMBLER 800 DESERT SLED ABS 46 CV, 34 KW 2CIL. KB02AA/KE00DS BASTIDORES: --- 2020
DUCATI SCRAMBLER 800 DESERT SLED ABS 46 CV, 34 KW 2CIL. KB02AA/M4/KE00DS BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 DESERT SLED ABS 46 CV, 34 KW 2CIL. KE35DS/KB00AA BASTIDORES: --- 2017-2018
DUCATI SCRAMBLER 800 DESERT SLED ABS 73 CV, 54 KW 2CIL. KB02AA/KE00DS BASTIDORES: --- 2020
DUCATI SCRAMBLER 800 DESERT SLED ABS 73 CV, 54 KW 2CIL. KB02AA/M4/KE00DS BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 DESERT SLED ABS 73 CV, 54 KW 2CIL. KE35DS/KB00AA BASTIDORES: --- 2017-2018
DUCATI SCRAMBLER 800 FLAT TRACK PRO ABS 31 CV, 23 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2016
DUCATI SCRAMBLER 800 FLAT TRACK PRO ABS 46 CV, 34 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2016
DUCATI SCRAMBLER 800 FLAT TRACK PRO ABS 73 CV, 54 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2016
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 31 CV, 23 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 46 CV, 34 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 46 CV, 34 KW 2CIL. KC04AA/KD00AA BASTIDORES: --- 2020-2021
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 46 CV, 34 KW 2CIL. KC04AA/M6/KD00AA BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 46 CV, 34 KW 2CIL. KD35AA/KC00AA BASTIDORES: --- 2017-2018
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 73 CV, 54 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 73 CV, 54 KW 2CIL. KC04AA/KD00AA BASTIDORES: --- 2020-2021
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 73 CV, 54 KW 2CIL. KC04AA/M6/KD00AA BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 FULL THROTTLE ABS 73 CV, 54 KW 2CIL. KD35AA/KC00AA BASTIDORES: --- 2017-2018
DUCATI SCRAMBLER 800 ICON ABS 31 CV, 23 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. K00AA/K35AA BASTIDORES: --- 2022
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. K00AA/M0/M4/M6/K35AA BASTIDORES: --- 2021
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. KC04AA/KD00AA BASTIDORES: --- 2020
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. KC04AA/M5/KD00AA BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. KD35AA/KC00AA BASTIDORES: --- 2018
DUCATI SCRAMBLER 800 ICON ABS 46 CV, 34 KW 2CIL. KD35AA/KC00AA/KA01AA BASTIDORES: --- 2017
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. K00AA/K35AA BASTIDORES: --- 2022
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. K00AA/M0/M4/M6/K35AA BASTIDORES: --- 2021
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. KC04AA/KD00AA BASTIDORES: --- 2020
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. KC04AA/M5/KD00AA BASTIDORES: --- 2019
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. KD35AA/KC00AA BASTIDORES: --- 2018
DUCATI SCRAMBLER 800 ICON ABS 73 CV, 54 KW 2CIL. KD35AA/KC00AA/KA01AA BASTIDORES: --- 2017
DUCATI SCRAMBLER 800 ICON DARK ABS 46 CV, 34 KW 2CIL. K00AA/K35AA BASTIDORES: --- 2021-2022
DUCATI SCRAMBLER 800 ICON DARK ABS 46 CV, 34 KW 2CIL. KC04AA/M1/KD00AA BASTIDORES: --- 2020
DUCATI SCRAMBLER 800 ICON DARK ABS 73 CV, 54 KW 2CIL. K00AA/K35AA BASTIDORES: --- 2021-2022
DUCATI SCRAMBLER 800 ICON DARK ABS 73 CV, 54 KW 2CIL. KC04AA/M1/KD00AA BASTIDORES: --- 2020
DUCATI SCRAMBLER 800 ITALIA INDEPENDENT ABS 31 CV, 23 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2016
DUCATI SCRAMBLER 800 ITALIA INDEPENDENT ABS 46 CV, 34 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2016
DUCATI SCRAMBLER 800 ITALIA INDEPENDENT ABS 73 CV, 54 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2016
DUCATI SCRAMBLER 800 MACH 20 ABS 46 CV, 34 KW 2CIL. KD35AA/KC00AA BASTIDORES: --- 2018-2019
DUCATI SCRAMBLER 800 MACH 20 ABS 73 CV, 54 KW 2CIL. KD35AA/KC00AA BASTIDORES: --- 2018-2019
DUCATI SCRAMBLER 800 NIGHTSHIFT ABS 46 CV, 34 KW 2CIL. K00AA/M0/M6/K35AA BASTIDORES: --- 2021
DUCATI SCRAMBLER 800 NIGHTSHIFT ABS 46 CV, 34 KW 2CIL. K00AA/M1/K35AA BASTIDORES: --- 2022
DUCATI SCRAMBLER 800 NIGHTSHIFT ABS 73 CV, 54 KW 2CIL. K00AA/M0/M6/K35AA BASTIDORES: --- 2021
DUCATI SCRAMBLER 800 NIGHTSHIFT ABS 73 CV, 54 KW 2CIL. K00AA/M1/K35AA BASTIDORES: --- 2022
DUCATI SCRAMBLER 800 STREET CLASSIC ABS 46 CV, 34 KW 2CIL. KC00AA/KD35AA BASTIDORES: --- 2018-2019
DUCATI SCRAMBLER 800 STREET CLASSIC ABS 73 CV, 54 KW 2CIL. KC00AA/KD35AA BASTIDORES: --- 2018-2019
DUCATI SCRAMBLER 800 URBAN ENDURO ABS 31 CV, 23 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 URBAN ENDURO ABS 46 CV, 34 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 URBAN ENDURO ABS 73 CV, 54 KW 2CIL. K100AA/K102AA BASTIDORES: --- 2015-2016
DUCATI SCRAMBLER 800 URBAN MOTARD ABS 46 CV, 34 KW 2CIL. K00AA/M5/K35AA BASTIDORES: --- 2022
DUCATI SCRAMBLER 800 URBAN MOTARD ABS 73 CV, 54 KW 2CIL. K00AA/M5/K35AA BASTIDORES: --- 2022
