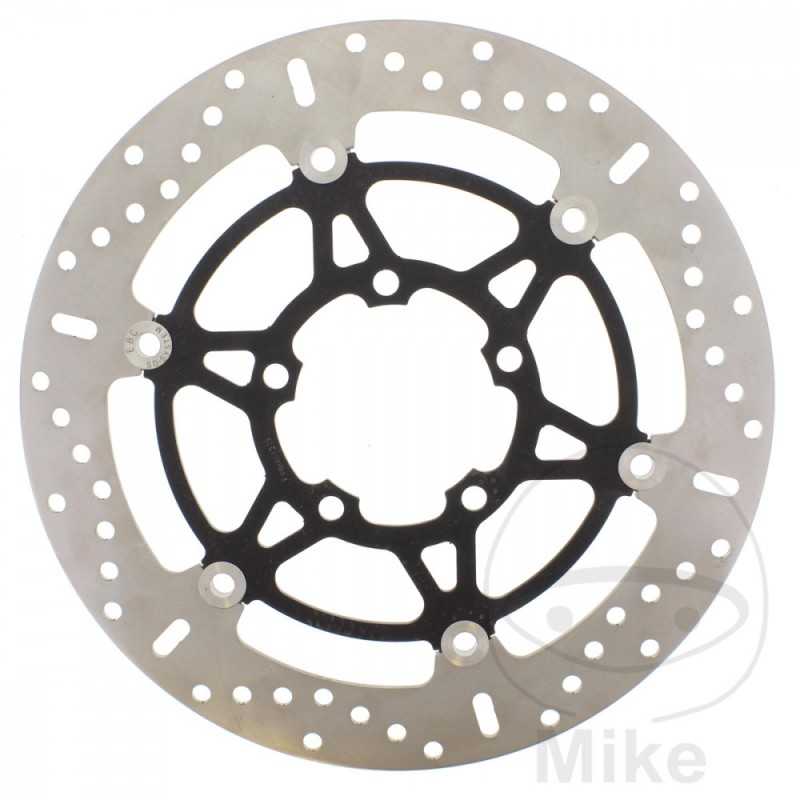

EBC Brake disc stainless steel X / XC 760.03.91

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 82.4MM
CIRCLE SIZE: 100.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Daytona 675 128 CV, 94 kw 3cil. H67 Bastidores: SMTTTA10FA - 564948-SMTTTA10FA - 2013
Triumph Daytona 675 98 CV, 72 kw 3cil. H67 Bastidores: SMTTTA10FA - 564948-SMTTTA10FA - 2013
Triumph Daytona 675 ABS 128 CV, 94 kw 3cil. H67 Bastidores: SMTTTA12FA --SMTTTA12FA - 2013-2017
Triumph Daytona 675 ABS 98 CV, 72 kw 3cil. H67 Bastidores: SMTTTA12FA --SMTTTA12FA - 2013
Triumph Street Triple 660 S A2 ABS 48 CV, 35 kw 3cil. HD02 Bastidores: 1 - 803572-1 - 2017
Triumph Street Triple 660 S A2 ABS 48 CV, 35 kw 3cil. HD02 Bastidores: 1 --1 - 2018
Triumph Street Triple 660 S A2 ABS 48 CV, 35 kw 3cil. HD02A Bastidores: 1 --1 - 2018
Triumph Street Triple 660 S A2 ABS 48 CV, 35 kw 3cil. HD02A Bastidores: 1 --1 - 968958 2019
Triumph Street Triple 660 S A2 ABS 48 CV, 35 kw 3cil. HD06 Bastidores: 1 - 974463-1 - 2020
Triumph Street Triple 660 S A2 ABS 95 CV, 70 kw 3cil. - Bastidores: 1 - 974463-1 - 2020
Triumph Street Triple 660 S A2 ABS 95 CV, 70 kw 3cil. HD03 Bastidores: 1 - 803572-1 - 2017
Triumph Street Triple 660 S A2 ABS 95 CV, 70 kw 3cil. HD03 Bastidores: 1 --1 - 2018
Triumph Street Triple 660 S A2 ABS 95 CV, 70 kw 3cil. HD03A Bastidores: 1 --1 - 2018
Triumph Street Triple 660 S A2 ABS 95 CV, 70 kw 3cil. HD03A Bastidores: 1 --1 - 968958 2019
Triumph Street Triple 675 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1066 - 560477-SMTTTL1066 - 2013
Triumph Street Triple 675 95 CV, 70 kw 3cil. L67LR3 Bastidores: SMTTTL4066 - 560477-SMTTTL4066 - 2013
Triumph Street Triple 675 ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1166 - 560477-SMTTTL1166 - 2013
Triumph Street Triple 675 ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1166 --SMTTTL1166 - 2014-2017
Triumph Street Triple 675 ABS 95 CV, 70 kw 3cil. L67LR3 Bastidores: SMTTTL4166 - 560477-SMTTTL4166 - 2013
Triumph Street Triple 675 ABS 95/48 CV, 70/35 kw 3cil. L67LR3 Bastidores: SMTTTL4166 --SMTTTL4166 - 2014-2017
Triumph Street Triple 675 R 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1266 - 560477-SMTTTL1266 - 2013
Triumph Street Triple 675 R ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1366 - 560477-SMTTTL1366 - 2013
Triumph Street Triple 675 R ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1366 --SMTTTL1366 - 2014-2015
Triumph Street Triple 675 R ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL1366 --SMTTTL1366 - 806645 2016-2017
Triumph Street Triple 675 RX ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL4366 - 560477-SMTTTL4366 - 2015
Triumph Street Triple 675 RX ABS 106 CV, 78 kw 3cil. L67LR Bastidores: SMTTTL4366 --SMTTTL4366 - 806645 2016
Triumph Street Triple 765 R ABS 118 CV, 87 kw 3cil. HD04 Bastidores: --- 2022
Triumph Street Triple 765 R ABS 118 CV, 87 kw 3cil. HD04 Bastidores: 2 - 982752-2 - 2020
Triumph Street Triple 765 R ABS 118 CV, 87 kw 3cil. HD04 Bastidores: 2 --2 - 2021
Triumph Street Triple 765 R Low ABS 118 CV, 87 kw 3cil. HD04 Bastidores: --- 2022
Triumph Street Triple 765 R Low ABS 118 CV, 87 kw 3cil. HD04 Bastidores: 2 - 982752-2 - 2020
Triumph Street Triple 765 R Low ABS 118 CV, 87 kw 3cil. HD04 Bastidores: 2 --2 - 2021
Triumph Street Triple 765 RS ABS 123 CV, 90 kw 3cil. HD01 Bastidores: 3 --3 - 2018
Triumph Street Triple 765 RS ABS 123 CV, 90 kw 3cil. HD01A Bastidores: 3 --3 - 2018
Triumph Street Triple 765 RS ABS 123 CV, 90 kw 3cil. HD01A Bastidores: 3 --3 - 965682 2019
Triumph Street Triple 765 RS ABS 123 CV, 90 kw 3cil. HD04 Bastidores: --- 2022
Triumph Street Triple 765 RS ABS 123 CV, 90 kw 3cil. HD04 Bastidores: 1 --1 - 2021
Triumph Street Triple 765 RS ABS 123 CV, 90, kw 3cil. HD04 Bastidores: 1 - 966534-1 - 2020
