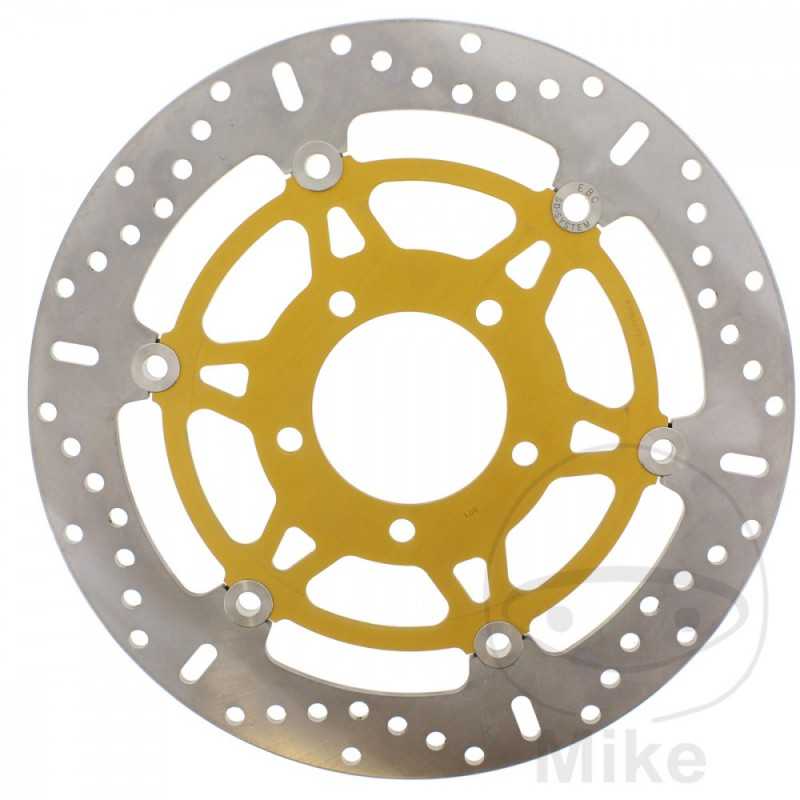

EBC Brake disc stainless steel X / XC 760.03.86

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 78.3MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Bonneville 865 EFI 67/34 CV, 49/25 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 2009-2010
Triumph Bonneville 865 EFI 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9107G - 463262-SMTTJ9107G - 2011
Triumph Bonneville 865 EFI 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 2012
Triumph Bonneville 865 EFI 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 463261 2011
Triumph Bonneville 865 EFI 68/48 CV, 50/37 kw 2cil. 986MF Bastidores: SMTTJ9107G - 694352-SMTTJ9107G - 2015-2016
Triumph Bonneville 865 EFI 68/48 CV, 50/37 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 2013
Triumph Bonneville 865 EFI 68/48 CV, 50/37 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 694351 2014-2015
Triumph Bonneville 865 EFI Newchurch 68/48 CV, 50/37 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 694351 2015
Triumph Bonneville 865 SE EFI 67/34 CV, 49/25 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 2009-2010
Triumph Bonneville 865 SE EFI 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9107G - 463262-SMTTJ9107G - 2011
Triumph Bonneville 865 SE EFI 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 2012
Triumph Bonneville 865 SE EFI 68/34 CV, 50/25 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 463261 2011
Triumph Bonneville 865 SE EFI 68/48 CV, 50/35 kw 2cil. 986MF Bastidores: SMTTJ9107G --SMTTJ9107G - 2013
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R - 469051-SMTTJ9168R - 2011
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2010-2010
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2012-2012
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 469050 2011
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R - 694387-SMTTJ9168R - 2015
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2013-2013
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2016-2017
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 694386 2014-2015
