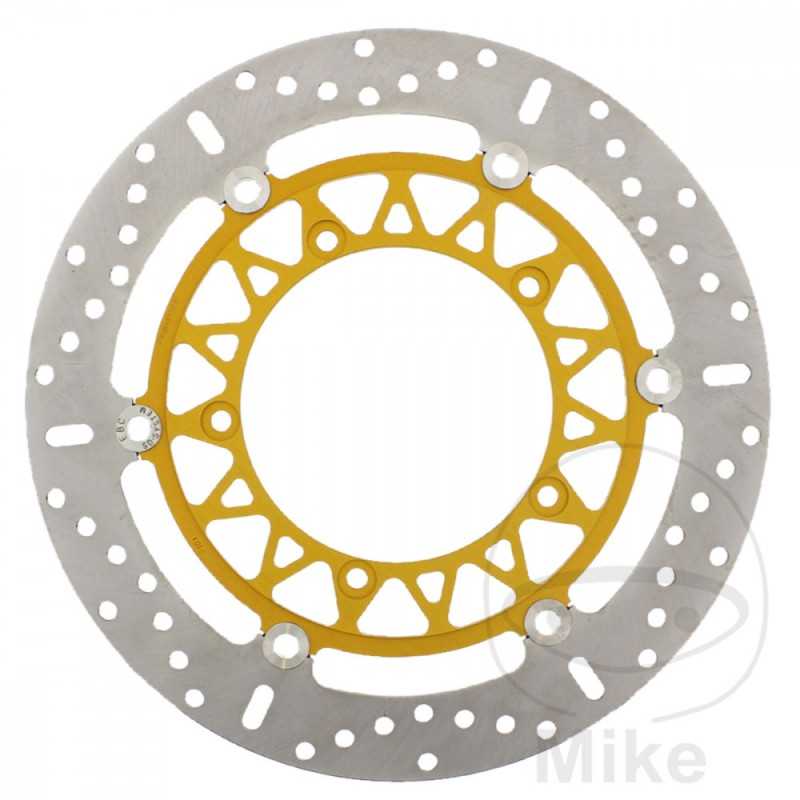

EBC Brake disc stainless steel X / XC 760.01.54

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's unique and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D11 BASTIDORES: RN165 henceforth00301-- 2006
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D14 BASTIDORES: RN165 henceforth05705-- 2007
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D17 BASTIDORES: RN165 henceforth05786-- 2007
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D1B BASTIDORES: RN165 henceforth12454-- 2008
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D1E BASTIDORES: RN165 henceforth12510-- 2008
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D1J BASTIDORES: RN165 henceforth14792-- 2009
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D1M BASTIDORES: RN165 henceforth14852-- 2009
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D1R BASTIDORES: RN165 henceforth15861-- 2010
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN165 2D1U BASTIDORES: RN165 henceforth15895-- 2010
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN166 2D12 BASTIDORES: RN166 henceforth00301-- 2006
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN16H 1EC1 BASTIDORES: RN16H henceforth00301-- 2011
YAMAHA FZ1 1000 N 150 CV, 110 KW 4CIL. RN16H 1EC4 BASTIDORES: RN16H henceforth00855-- 2012-2015
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16A 22C1 BASTIDORES: RN16A henceforth00732-- 2008
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16A 22C3 BASTIDORES: RN16A henceforth00798-- 2008
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16A 22C5 BASTIDORES: RN16A henceforth02172-- 2009
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16A 22C7 BASTIDORES: RN16A henceforth02205-- 2009
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16A 22C9 BASTIDORES: RN16A henceforth03232-- 2010
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16A 22CB BASTIDORES: RN16A henceforth03381-- 2010
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16R 22CD BASTIDORES: RN16R henceforth00301-- 2011
YAMAHA FZ1 1000 NA ABS 150 CV, 110 KW 4CIL. RN16R 22CF BASTIDORES: RN16R henceforth00676-- 2012-2015
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 1CA5 BASTIDORES: RN161 henceforth13389-- 2010
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 3C31 BASTIDORES: RN161 henceforth00381-- 2006
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 3C37 BASTIDORES: RN161 henceforth00301-- 2006
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 3C3A BASTIDORES: RN161 henceforth05655-- 2007
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 3C3H BASTIDORES: RN161 henceforth09498-- 2008
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 3C3P BASTIDORES: RN161 henceforth12295-- 2009
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN161 3C3X BASTIDORES: RN161 henceforth13257-- 2010
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN16D 1CA9 BASTIDORES: RN16D henceforth00301-- 2011
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN16D 1CAF BASTIDORES: RN16D henceforth00348-- 2011
YAMAHA FZ1 1000 S FAZER 150 CV, 110 KW 4CIL. RN16D 1CAK BASTIDORES: RN16D henceforth00519-- 2012-2015
YAMAHA FZ1 1000 S GT FAZER 150 CV, 110 KW 4CIL. RN161 3C3A BASTIDORES: RN161 henceforth05655-- 2007
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN168 5D01 BASTIDORES: RN168 henceforth00719-- 2007
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN168 5D03 BASTIDORES: RN168 henceforth03455-- 2008
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN168 5D05 BASTIDORES: RN168 henceforth05914-- 2009
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN168 5D07 BASTIDORES: RN168 henceforth06852-- 2010
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN168 5D09 BASTIDORES: RN168 henceforth06832-- 2010
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN16M 5D0B BASTIDORES: RN16M henceforth00301-- 2011
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN16M 5D0D BASTIDORES: RN16M henceforth00341-- 2011
YAMAHA FZ1 1000 SA FAZER ABS 150 CV, 110 KW 4CIL. RN16M 5D0F BASTIDORES: RN16M henceforth01018-- 2012-2015
YAMAHA FZ1 1000 SA GT FAZER ABS 150 CV, 110 KW 4CIL. RN168 5D01 BASTIDORES: RN168 henceforth00719-- 2007
