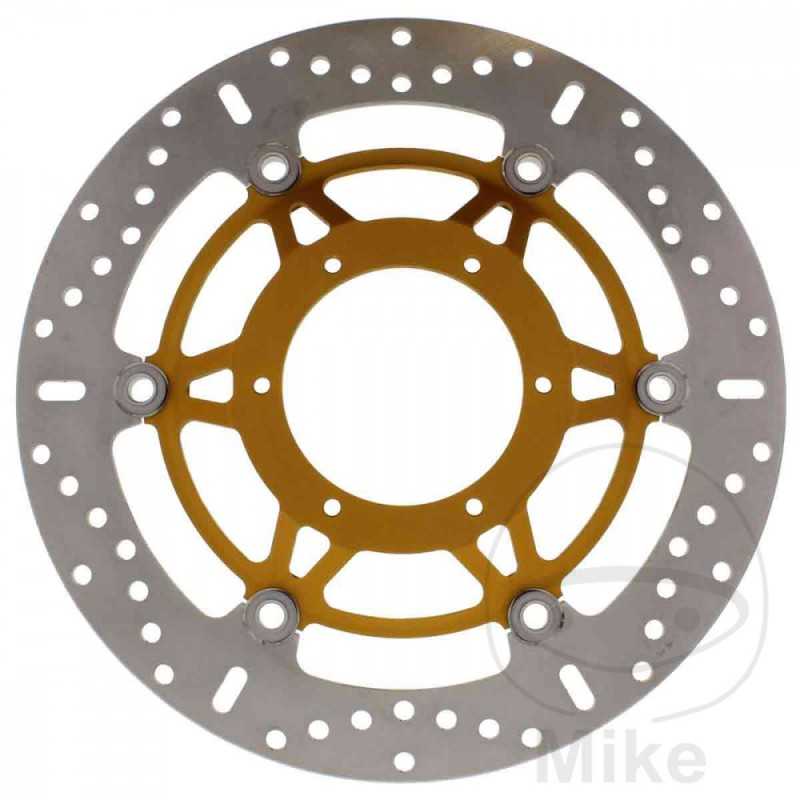

EBC Brake disc stainless steel X / XC 760.00.69

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
PADDING: 21.6MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA ST 1300 A PAN EUROPEAN ABS CBS 127 CV, 93 KW 4CIL. SC51A 2 BASTIDORES: JH2 SC51A-2M000001-JH2 SC51A-2M099999 2002-2003
HONDA ST 1300 A PAN EUROPEAN ABS CBS 127 CV, 93 KW 4CIL. SC51A 4 BASTIDORES: JH2 SC51A-4M200001-JH2 SC51A-4M299999 2004-2005
HONDA ST 1300 A PAN EUROPEAN ABS CBS 127 CV, 93 KW 4CIL. SC51A 6 BASTIDORES: JH2 SC51A-6M400001-- 2006-2007
HONDA ST 1300 A PAN EUROPEAN ABS CBS 127 CV, 93 KW 4CIL. SC51A 8 BASTIDORES: JH2 SC51A-8M600001-JH2 SC51A-8M609999 2008
HONDA ST 1300 A PAN EUROPEAN ABS CBS 127 CV, 93 KW 4CIL. SC51A 9 BASTIDORES: JH2 SC51A-9K700001-JH2 SC51A-9K709999 2009-2013
HONDA ST 1300 A PAN EUROPEAN ABS CBS 127 CV, 93 KW 4CIL. SC51A E BASTIDORES: JH2 SC51A-EK800001-- 2014-2017
HONDA ST 1300 PAN EUROPEAN CBS 127 CV, 93 KW 4CIL. SC51C 2 BASTIDORES: JH2 SC51C-2M000001-JH2 SC51C-2M099999 2002-2003
HONDA ST 1300 PAN EUROPEAN CBS 127 CV, 93 KW 4CIL. SC51C 4 BASTIDORES: JH2 SC51C-4M200001-JH2 SC51C-4M299999 2004-2005
HONDA ST 1300 PAN EUROPEAN CBS 127 CV, 93 KW 4CIL. SC51C 6 BASTIDORES: JH2 SC51C-6M400001-- 2006-2007
HONDA ST 1300 PAN EUROPEAN CBS 127 CV, 93 KW 4CIL. SC51C 8 BASTIDORES: JH2 SC51C-8M600001-JH2 SC51C-8M609999 2008
