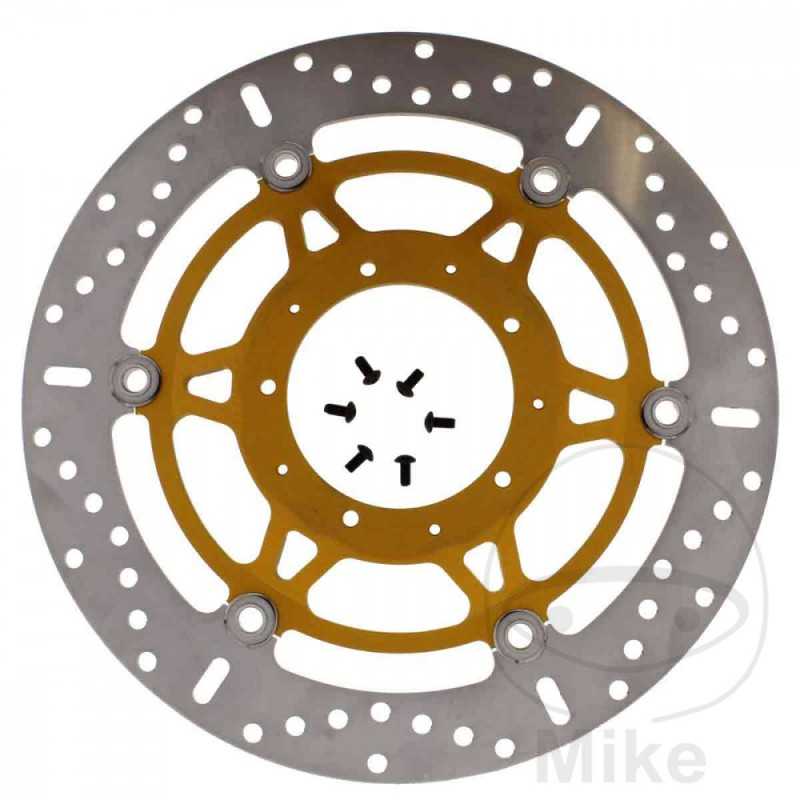

EBC Brake disc stainless steel X / XC 760.00.68

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's unique and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.3 MM
thickness: 5mm
FILLING: 12.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA VFR 1200 F ABS 173 CV, 127 KW 4CIL. SC63A A BASTIDORES: JH2 SC63A-AK000001-JH2 SC63A-AK099999 2010
HONDA VFR 1200 F ABS 173 CV, 127 KW 4CIL. SC63A B BASTIDORES: JH2 SC63A-BK100001-JH2 SC63A-BK199999 2011
HONDA VFR 1200 F ABS 173 CV, 127 KW 4CIL. SC63A C BASTIDORES: JH2 SC63A-CK200001-JH2 SC63A-CK299999 2012
HONDA VFR 1200 F ABS 173 CV, 127 KW 4CIL. SC63A D BASTIDORES: JH2 SC63A-DK300001-- 2013-2014
HONDA VFR 1200 F ABS 173 CV, 127 KW 4CIL. SC63A F BASTIDORES: JH2 SC63A-FK400001-- 2015-2016
HONDA VFR 1200 FD DCT ABS 173 CV, 127 KW 4CIL. SC63C A BASTIDORES: JH2 SC63C-AK000001-JH2 SC63C-AK099999 2010
HONDA VFR 1200 FD DCT ABS 173 CV, 127 KW 4CIL. SC63C B BASTIDORES: JH2 SC63C-BK100001-JH2 SC63C-BK199999 2011
HONDA VFR 1200 FD DCT ABS 173 CV, 127 KW 4CIL. SC63C C BASTIDORES: JH2 SC63C-CK200001-JH2 SC63C-CK299999 2012
HONDA VFR 1200 FD DCT ABS 173 CV, 127 KW 4CIL. SC63C D BASTIDORES: JH2 SC63C-DK300001-- 2013-2014
HONDA VFR 1200 FD DCT ABS 173 CV, 127 KW 4CIL. SC63C F BASTIDORES: JH2 SC63C-FK400001-- 2015-2016
