EBC Brake disc stainless steel X / XC 760.00.67
€200.34
€210.67
Save €10.33Tax included

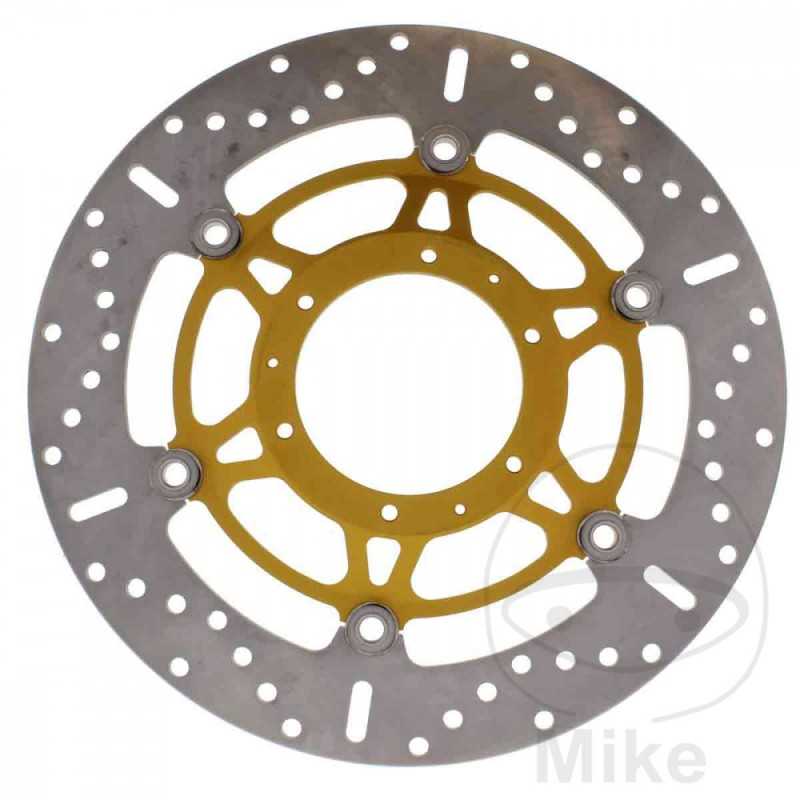

EBC X / XC series - Fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.5MM
PADDING: 14.7MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C 9 BASTIDORES: JH2 SC59C-9K000001-JH2 SC59C-9K099999 2009
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C A BASTIDORES: JH2 SC59C-AK100001-JH2 SC59C-AK199999 2010
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C B BASTIDORES: JH2 SC59C-BK200001-- 2011
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C C BASTIDORES: JH2 SC59C-CK300001-JH2 SC59C-CK399999 2012
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C D BASTIDORES: JH2 SC59C-DK400001-JH2 SC59C-DK499999 2013
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C E BASTIDORES: JH2 SC59C-EK500001-- 2014
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C F BASTIDORES: JH2 SC59C-FK600001-JH2 SC59C-FK699999 2015
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C G BASTIDORES: JH2 SC59C-GK700001-- 2016
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A H BASTIDORES: JH2 SC77A-HK000001-JH2 SC77A-HK099999 2017
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A J BASTIDORES: JH2 SC77A-JK100001-- 2018
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A K BASTIDORES: JH2 SC77A-KK200001-- 2019
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 8 BASTIDORES: JH2 SC59A-8K020001-JH2 SC59A-8K029999 2008
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 8 BASTIDORES: JH2 SC59A-8M000001-JH2 SC59A-8M019999 2008
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 9 BASTIDORES: JH2 SC59A-9K100001-JH2 SC59A-9K199999 2009
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A A BASTIDORES: JH2 SC59A-AK200001-JH2 SC59A-AK299999 2010
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A B BASTIDORES: JH2 SC59A-BK300001-- 2011
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A C BASTIDORES: JH2 SC59A-CK400001-JH2 SC59A-CK499999 2012
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A D BASTIDORES: JH2 SC59A-DK500001-JH2 SC59A-DK599999 2013
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A E BASTIDORES: JH2 SC59A-EK600001-- 2014
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A F BASTIDORES: JH2 SC59A-FK700001-JH2 SC59A-FK799999 2015
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A G BASTIDORES: JH2 SC59A-GK800001-- 2016
HONDA CBR 1000 RRS FIREBLADE EDITION 178 CV, 131 KW 4CIL. SC59D 8 BASTIDORES: --- 2008
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.5MM
PADDING: 14.7MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C 9 BASTIDORES: JH2 SC59C-9K000001-JH2 SC59C-9K099999 2009
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C A BASTIDORES: JH2 SC59C-AK100001-JH2 SC59C-AK199999 2010
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C B BASTIDORES: JH2 SC59C-BK200001-- 2011
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C C BASTIDORES: JH2 SC59C-CK300001-JH2 SC59C-CK399999 2012
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C D BASTIDORES: JH2 SC59C-DK400001-JH2 SC59C-DK499999 2013
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C E BASTIDORES: JH2 SC59C-EK500001-- 2014
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C F BASTIDORES: JH2 SC59C-FK600001-JH2 SC59C-FK699999 2015
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C G BASTIDORES: JH2 SC59C-GK700001-- 2016
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A H BASTIDORES: JH2 SC77A-HK000001-JH2 SC77A-HK099999 2017
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A J BASTIDORES: JH2 SC77A-JK100001-- 2018
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A K BASTIDORES: JH2 SC77A-KK200001-- 2019
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 8 BASTIDORES: JH2 SC59A-8K020001-JH2 SC59A-8K029999 2008
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 8 BASTIDORES: JH2 SC59A-8M000001-JH2 SC59A-8M019999 2008
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 9 BASTIDORES: JH2 SC59A-9K100001-JH2 SC59A-9K199999 2009
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A A BASTIDORES: JH2 SC59A-AK200001-JH2 SC59A-AK299999 2010
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A B BASTIDORES: JH2 SC59A-BK300001-- 2011
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A C BASTIDORES: JH2 SC59A-CK400001-JH2 SC59A-CK499999 2012
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A D BASTIDORES: JH2 SC59A-DK500001-JH2 SC59A-DK599999 2013
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A E BASTIDORES: JH2 SC59A-EK600001-- 2014
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A F BASTIDORES: JH2 SC59A-FK700001-JH2 SC59A-FK799999 2015
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A G BASTIDORES: JH2 SC59A-GK800001-- 2016
HONDA CBR 1000 RRS FIREBLADE EDITION 178 CV, 131 KW 4CIL. SC59D 8 BASTIDORES: --- 2008
760.00.67
10 Items
Data sheet
- INSIDE DIAMETER
- 110 MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 6
- STUFFED
- 14.7MM
- EXTERNAL DIAMETER
- 320MM
- CIRCLE MEASUREMENT
- 110 MM
- HOLE DIAMETER
- 6.3MM
- THICKNESS
- 4.5 MM
