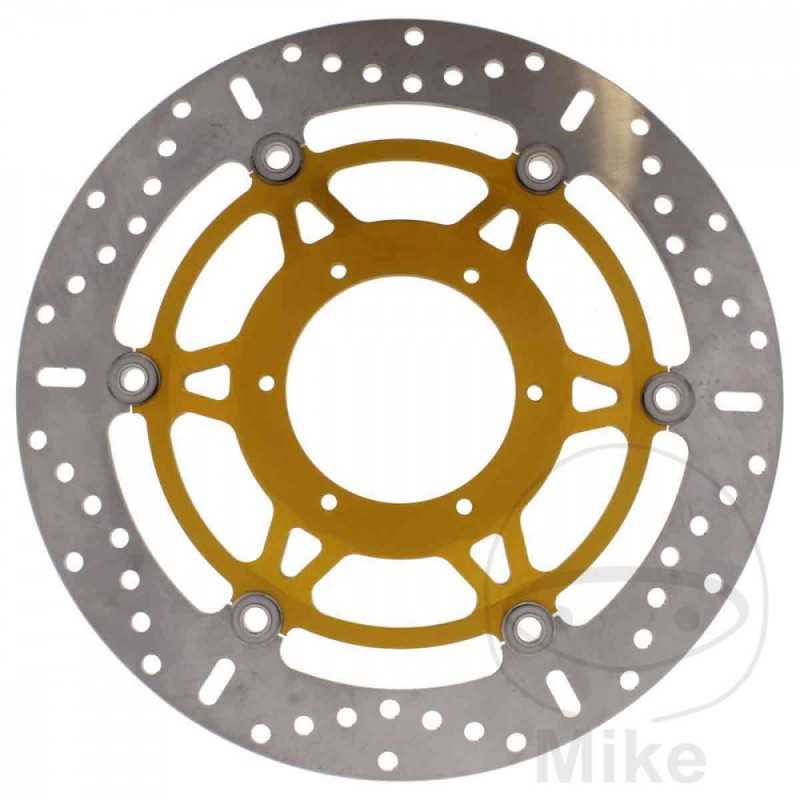

EBC Brake disc stainless steel X / XC 760.00.66

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's unique and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
FILLING: 12.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 1000 RR FIREBLADE 172 CV, 126,5 KW 4CIL. SC57A 6 BASTIDORES: JH2 SC57A-6M200001-JH2 SC57A-6M299999 2006
HONDA CBR 1000 RR FIREBLADE 172 CV, 126,5 KW 4CIL. SC57A 7 BASTIDORES: JH2 SC57A-7M300001-- 2007
HONDA CBR 1000 RRS FIREBLADE EDITION 172 CV, 126 KW 4CIL. SC57D 7 BASTIDORES: --- 2007
HONDA VTR 1000 SP1 132 CV, 97 KW 2CIL. SC45A 1 BASTIDORES: JH2 SC45A-1M100001-JH2 SC45A-1M199999 2001
HONDA VTR 1000 SP1 132 CV, 97 KW 2CIL. SC45A Y BASTIDORES: JH2 SC45A-YM000001-JH2 SC45A-YM099999 2000
HONDA VTR 1000 SP2 135 CV, 99 KW 2CIL. SC45A 2 BASTIDORES: JH2 SC45A-2M200001-JH2 SC45A-2M299999 2002
HONDA VTR 1000 SP2 135 CV, 99 KW 2CIL. SC45A 3 BASTIDORES: JH2 SC45A-3M300001-JH2 SC45A-3M399999 2003
HONDA VTR 1000 SP2 135 CV, 99 KW 2CIL. SC45A 4 BASTIDORES: JH2 SC45A-4M400001-JH2 SC45A-4M499999 2004
HONDA VTR 1000 SP2 135 CV, 99 KW 2CIL. SC45A 5 BASTIDORES: JH2 SC45A-5M500001-JH2 SC45A-5M599999 2005
HONDA VTR 1000 SP2 135 CV, 99 KW 2CIL. SC45A 6 BASTIDORES: JH2 SC45A-6M600001-- 2006
