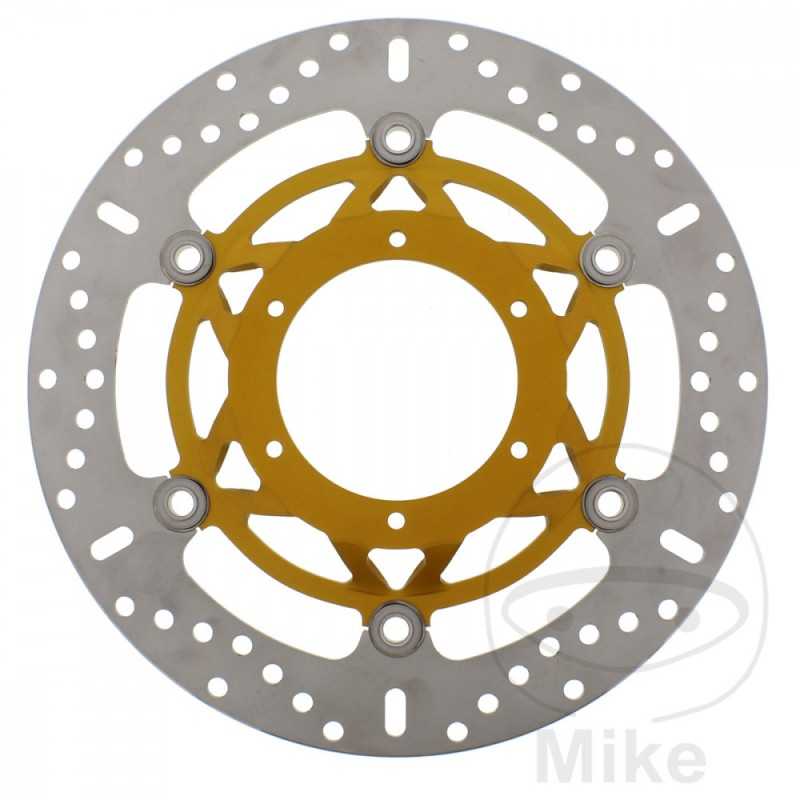

EBC Brake disc stainless steel X / XC 760.00.65

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's unique and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 94.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
PADDING: 14.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. - D BASTIDORES: --- 2013-2015
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. PC41A 7 BASTIDORES: ZDC PC41A henceforth7F000001-ZDC PC41A henceforth7F099999 2007
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. PC41A 8 BASTIDORES: ZDC PC41A henceforth8F050001-ZDC PC41A henceforth8F999999 2008
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. PC41A 9 BASTIDORES: ZDC PC41A henceforth9F075001-- 2009
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. PC41A A BASTIDORES: ZDC PC41A henceforthAF090001-ZDC PC41A henceforthAF099999 2010
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. PC41E B BASTIDORES: ZDC PC41E henceforthBF100001-ZDC PC41E henceforthBF199999 2011
HONDA CB 600 F HORNET 102 CV, 75 KW 4CIL. PC41E C BASTIDORES: ZDC PC41E henceforthCF115001-ZDC PC41E henceforthCF199999 2012
HONDA CB 600 F HORNET 34 CV, 25 KW 4CIL. PC41B 7 BASTIDORES: ZDC PC41B henceforth7F000001-ZDC PC41B henceforth7F099999 2007
HONDA CB 600 F HORNET 34 CV, 25 KW 4CIL. PC41B 8 BASTIDORES: ZDC PC41B henceforth8F050001-ZDC PC41B henceforth8F099999 2008
HONDA CB 600 F HORNET 34 CV, 25 KW 4CIL. PC41B 9 BASTIDORES: ZDC PC41B henceforth9F075001-- 2009
HONDA CB 600 F HORNET 34 CV, 25 KW 4CIL. PC41B A BASTIDORES: ZDC PC41B henceforthAF090001-ZDC PC41B henceforthAF099999 2010
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. - D BASTIDORES: --- 2013-2015
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. PC41C 7 BASTIDORES: ZDC PC41C henceforth7F000001-ZDC PC41C henceforth7F099999 2007
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. PC41C 8 BASTIDORES: ZDC PC41C henceforth8F050001-ZDC PC41C henceforth8F999999 2008
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. PC41C 9 BASTIDORES: ZDC PC41C henceforth9F075001-- 2009
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. PC41C A BASTIDORES: ZDC PC41C henceforthAF090001-ZDC PC41C0-AF099999 2010
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. PC41F B BASTIDORES: ZDC PC41F henceforthBF100001-ZDC PC41F henceforthBF199999 2011
HONDA CB 600 FA HORNET ABS 102 CV, 75 KW 4CIL. PC41F C BASTIDORES: ZDC PC41F henceforthCF115001-- 2012
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. - D BASTIDORES: --- 2013-2015
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. PC41D 7 BASTIDORES: ZDC PC41D henceforth7F000001-ZDC PC41D henceforth7F099999 2007
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. PC41D 8 BASTIDORES: ZDC PC41D henceforth8F050001-ZDC PC41D henceforth8F999999 2008
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. PC41D 9 BASTIDORES: ZDC PC41D henceforth9F075001-- 2009
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. PC41D A BASTIDORES: ZDC PC41D henceforthAF090001-ZDC PC41D henceforthAF099999 2010
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. PC41H B BASTIDORES: ZDC PC41H henceforthBF100001-ZDC PC41H henceforthBF199999 2011
HONDA CB 600 FA HORNET ABS 34 CV, 25 KW 4CIL. PC41H C BASTIDORES: ZDC PC41H henceforthCF115001-- 2012
HONDA CBR 600 F 102 CV, 75 KW 4CIL. PC41J B BASTIDORES: ZDC PC41J henceforthBF500001-ZDC PC41J henceforthBF599999 2011
HONDA CBR 600 F 102 CV, 75 KW 4CIL. PC41J C BASTIDORES: ZDC PC41J henceforthCF515001-- 2012-2013
HONDA CBR 600 FA ABS 102 CV, 75 KW 4CIL. PC41K B BASTIDORES: ZDC PC41K henceforthBF500001-ZDC PC41K henceforthBF599999 2011
HONDA CBR 600 FA ABS 102 CV, 75 KW 4CIL. PC41K C BASTIDORES: ZDC PC41K henceforthCF515001-- 2012-2013
