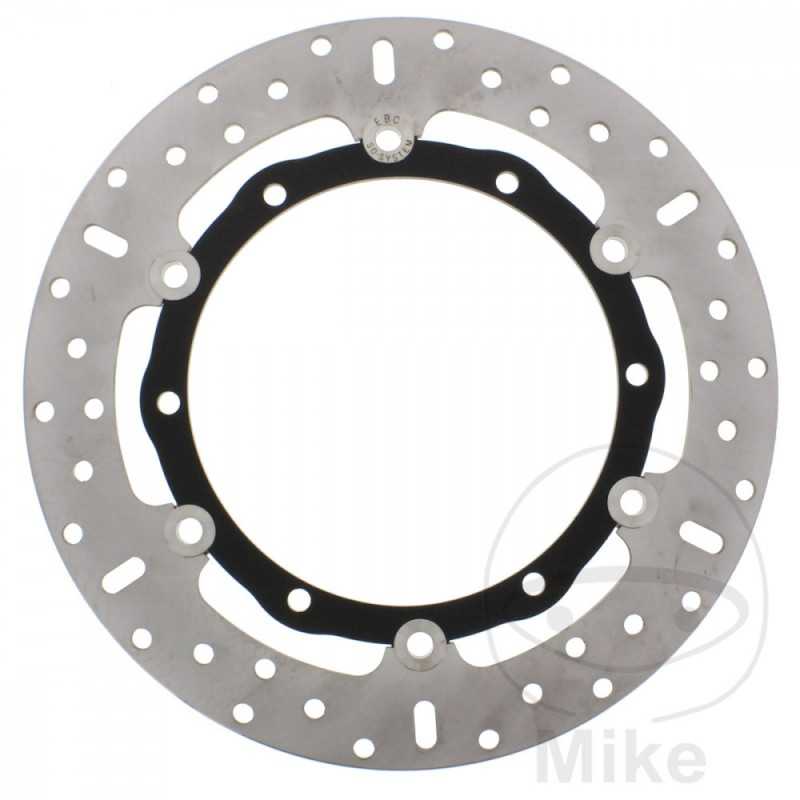

EBC Brake disc stainless steel X / XC 760.00.10

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 292MM
INSIDE DIAMETER: 165.2MM
CIRCLE SIZE: 180 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7C Bastidores: RE114 henceforth00101-- 2014-2015
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7L Bastidores: RE114 henceforth00109-- 2014-2015
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR31 Bastidores: RE114-100102-- 2016
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR33 Bastidores: RE114-100101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7D Bastidores: RE115 henceforth00091-- 2014-2015
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7M Bastidores: RE115 henceforth00090-- 2014-2015
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR32 Bastidores: RE115-105101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR34 Bastidores: RE115-100101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR35 Bastidores: RE292 henceforth00095-- 2017
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR36 Bastidores: RE292 henceforth10101-- 2018
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR37 Bastidores: RE292 henceforth22351-- 2019
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE392 B6G1 Bastidores: RE392 henceforth00060-- 2020
Yamaha MT 125 A MTN125-A ABS 15 CV, 11 kw 1cil. RE402 B6G2 Bastidores: RE402 henceforth00080-- 2021
Yamaha XSR 125 MTM ABS 15 CV, 11 kw 1cil. RE441 BFG1 Bastidores: RE441 henceforth00070-- 2021-2022
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D78 Bastidores: RE111 henceforth00073-- 2014
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7K Bastidores: RE111 henceforth00070-- 2014
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7P Bastidores: RE111 henceforth06102-- 2015
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7R Bastidores: RE111 henceforth06101-- 2015
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7S Bastidores: RE111 henceforth11101-- 2016
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7W Bastidores: RE111 henceforth11102-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7E Bastidores: RE112 henceforth00098-- 2015
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7T Bastidores: RE112 henceforth04102-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7X Bastidores: RE112 henceforth04101-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR61 Bastidores: RE291 henceforth00092-- 2017
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR62 Bastidores: RE291 henceforth10101-- 2018
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE391 B5G1 Bastidores: RE391 henceforth00080-- 2019
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE391 B5G4 Bastidores: RE391 henceforth08101-- 2020
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE401 B5G2 Bastidores: RE401 henceforth00080-- 2021
