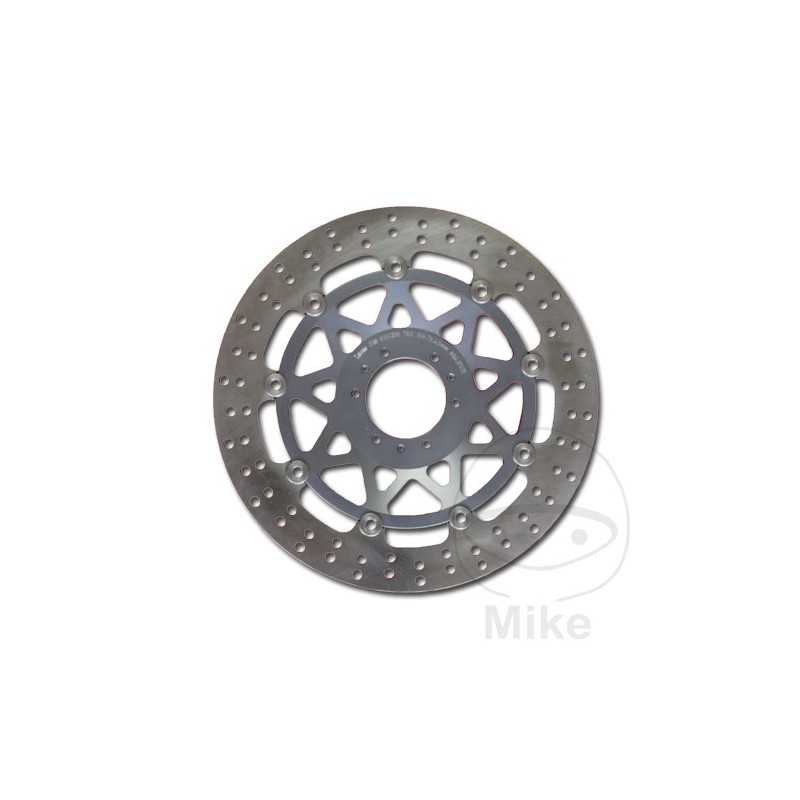

TRW floating brake disc for motorcycle 788.30.85

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design

Double panel = two panels required!
OUTER DIAMETER: 296MM
INNER DIAMETER: 62MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
FILLING: 17MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 600 F 106 CV, 78 KW 4CIL. PC35A X BASTIDORES: JH2 PC35A-XM000001-- 1999
HONDA CBR 600 F 106 CV, 78 KW 4CIL. PC35A Y BASTIDORES: JH2 PC35A-YM100001-JH2 PC35A-YM199999 2000
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D X BASTIDORES: JH2 PC35D-XM000001-- 1999
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D Y BASTIDORES: JH2 PC35D-YM100001-JH2 PC35D-YM199999 2000
HONDA CBR 900 RR FIREBLADE 100 CV, 74 KW 4CIL. SC28 N BASTIDORES: SC28-2000039-SC28-2007517 1992
HONDA CBR 900 RR FIREBLADE 100 CV, 74 KW 4CIL. SC28 P BASTIDORES: SC28-2100517-SC28-2108602 1993
HONDA CBR 900 RR FIREBLADE 50 CV, 37 KW 4CIL. SC28 N BASTIDORES: SC28-3000001-SC28-3000450 1992
HONDA CBR 900 RR FIREBLADE 50 CV, 37 KW 4CIL. SC28 P BASTIDORES: SC28-3100001-SC28-3100381 1993
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34A 1 BASTIDORES: 1HF SC34A-1A400001-- 2001
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34A 2 BASTIDORES: 1HF SC34A-2A500001-- 2002-2003
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34A V BASTIDORES: 1HF SC34A-VA000001-- 1997
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34A W BASTIDORES: 1HF SC34A-WA100001-- 1998
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34A X BASTIDORES: 1HF SC34A-XA200001-- 1999
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34A Y BASTIDORES: 1HF SC34A-YA300001-- 2000
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34B 1 BASTIDORES: 1HF SC34B-1A400001-- 2001
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34B 2 BASTIDORES: 1HF SC34B-2A500001-- 2002-2003
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34B V BASTIDORES: 1HF SC34B-VA000001-- 1997
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34B W BASTIDORES: 1HF SC34B-WA100001-- 1998
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34B X BASTIDORES: 1HF SC34B-XA200001-- 1999
HONDA GL 1500 C VALKYRIE F6C 98 CV, 72 KW 6CIL. SC34B Y BASTIDORES: 1HF SC34B-YA300001-- 2000
HONDA GL 1800 A GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 1 BASTIDORES: 1HF SC47A-1A000001-1HF SC47A-1A099999 2001
HONDA GL 1800 A GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 2 BASTIDORES: 1HF SC47A-2A100001-1HF SC47A-2A199999 2002
HONDA GL 1800 A GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 3 BASTIDORES: 1HF SC47A-3A200001-1HF SC47A-3A299999 2003
HONDA GL 1800 A GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 4 BASTIDORES: 1HF SC47A-4A300001-1HF SC47A-4A399999 2004
HONDA GL 1800 A GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 5 BASTIDORES: 1HF SC47A-5A400001-1HF SC47A-5A499999 2005
HONDA GL 1800 B GOLDWING/F6B/BAGGER ABS 118 CV, 87 KW 6CIL. SC68E D BASTIDORES: JH2 SC68E-DK000001-JH2 SC68E-DK099999 2013
HONDA GL 1800 B GOLDWING/F6B/BAGGER ABS 118 CV, 87 KW 6CIL. SC68E E BASTIDORES: JH2 SC68E-EK100001-JH2 SC68E-EK199999 2014
HONDA GL 1800 GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 6 BASTIDORES: 1HF SC47A-6A500001-1HF SC47A-6A599999 2006
HONDA GL 1800 GOLDWING ABS 118 CV, 87 KW 6CIL. SC47A 7 BASTIDORES: 1HF SC47A-7A600001-1HF SC47A-7A699999 2007
HONDA GL 1800 GOLDWING ABS 118 CV, 87 KW 6CIL. SC47C 6 BASTIDORES: 1HF SC47C-6A500001-1HF SC47C-6A599999 2006
HONDA GL 1800 GOLDWING ABS AIRBAG NAVI 118 CV, 87 KW 6CIL. SC47N 7 BASTIDORES: 1HF SC47N-7A600001-1HF SC47N-7A699999 2007
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 2 BASTIDORES: JH2 RC46A-2M400001-JH2 RC46A-2M499999 2002
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 3 BASTIDORES: JH2 RC46A-3M500001-JH2 RC46A-3M599999 2003
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 4 BASTIDORES: JH2 RC46A-4M600001-JH2 RC46A-4M699999 2004
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 5 BASTIDORES: JH2 RC46A-5M700001-- 2005
HONDA VFR 800 FI 106/98 CV, 78/72 KW 4CIL. RC46D 1 BASTIDORES: JH2 RC46D-1M300001-- 2001
HONDA VFR 800 FI 106/98 CV, 78/72 KW 4CIL. RC46D Y BASTIDORES: JH2 RC46D-YM200001-- 2000
HONDA VFR 800 FI 98 CV, 72 KW 4CIL. RC46A W BASTIDORES: JH2 RC46A-WM000001-- 1998
HONDA VFR 800 FI 98 CV, 72 KW 4CIL. RC46B W BASTIDORES: JH2 RC46B-WM000001-- 1998
HONDA VFR 800 FI 98 CV, 72 KW 4CIL. RC46B X BASTIDORES: JH2 RC46B-XM100001-- 1999
HONDA VFR 800 FI JUBI MODELL 98 CV, 72 KW 4CIL. RC46B X BASTIDORES: JH2 RC46B-XM150001-- 1999
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD01A X BASTIDORES: JH2 SD01A-XM000001-- 1999
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD01A Y BASTIDORES: JH2 SD01A-YM100001-- 2000
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 1 BASTIDORES: VTM SD02A-1E000001-- 2001
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 2 BASTIDORES: VTM SD02A-2E000001-- 2002
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 3 BASTIDORES: VTM SD02A henceforth3E000001-VTM SD02A henceforth3E099999 2003
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 4 BASTIDORES: VTM SD02A henceforth4E030001-VTM SD02A henceforth4E099999 2004
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 5 BASTIDORES: VTM SD02A henceforth5E040001-- 2005
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 7 BASTIDORES: VTM SD02A henceforth7E260001-VTM SD02A henceforth7E269999 2007
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 8 BASTIDORES: VTM SD02A henceforth8E270001-VTM SD02A henceforth8E279999 2008
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A 9 BASTIDORES: VTM-SD02A-9E280001-VTM SD02A-9E289999 2009
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02A A BASTIDORES: VTM SD02A-AE290001-- 2010
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02B 3 BASTIDORES: VTM SD02B henceforth3E000001-VTM SD02B henceforth3E099999 2003
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02B 4 BASTIDORES: VTM SD02B henceforth4E000001-VTM SD02B henceforth4E099999 2004
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02B 5 BASTIDORES: VTM SD02B henceforth5E000001-- 2005
HONDA XL 1000 V VARADERO 94 CV, 69 KW 2CIL. SD02B 6 BASTIDORES: VTM SD02B henceforth6E000001-- 2006
