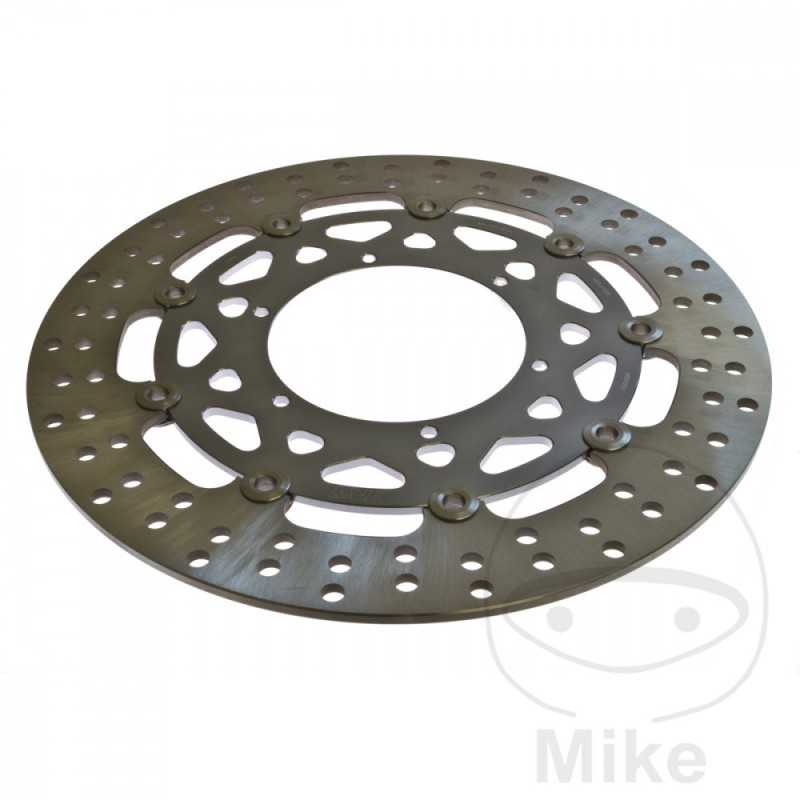

TRW floating brake disc for motorcycle 788.25.66

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 105.3MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 650 800 GS 34 CV, 25 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2008-2012
BMW F 650 800 GS 71 CV, 52 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2008-2012
BMW F 650 800 GS ABS 34 CV, 25 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2008-2012
BMW F 650 800 GS ABS 71 CV, 52 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2008-2012
BMW F 700 800 GS ABS 48 CV, 35 KW 2CIL. 4G80R/K70 0B06 BASTIDORES: --- 2017
BMW F 700 800 GS ABS 48 CV, 35 KW 2CIL. E8GS/K70 0B01 BASTIDORES: --- 2013-2016
BMW F 700 800 GS ABS 75 CV, 55 KW 2CIL. 4G80/K70 0B06 BASTIDORES: --- 2017
BMW F 700 800 GS ABS 75 CV, 55 KW 2CIL. E8GS/K70 0B01 BASTIDORES: --- 2013-2016
BMW F 700 800 GS ABS ESA 48 CV, 35 KW 2CIL. 4G80R/K70 0B06 BASTIDORES: --- 2017
BMW F 700 800 GS ABS ESA 75 CV, 55 KW 2CIL. 4G80/K70 0B06 BASTIDORES: --- 2017
BMW F 800 800 GS 85 CV, 63 KW 2CIL. E8GS/K72 0219 BASTIDORES: --- 2008-2012
BMW F 800 800 GS ABS 48 CV, 35 KW 2CIL. 4G80R/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ABS 48 CV, 35 KW 2CIL. E8GS/K72 0B02 BASTIDORES: --- 2013-2016
BMW F 800 800 GS ABS 85 CV, 63 KW 2CIL. 4G80/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ABS 85 CV, 63 KW 2CIL. E8GS/K72 0219 BASTIDORES: --- 2008-2012
BMW F 800 800 GS ABS 85 CV, 63 KW 2CIL. E8GS/K72 0B02 BASTIDORES: --- 2013-2016
BMW F 800 800 GS ABS ESA 48 CV, 35 KW 2CIL. 4G80R/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ABS ESA 85 CV, 63 KW 2CIL. 4G80/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. E8GS/K75 0B05 BASTIDORES: --- 2013-2015
BMW F 800 800 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. E8GS/K75 0B55 BASTIDORES: --- 2016
BMW F 800 800 GS ADVENTURE ABS 85 CV, 63 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 GS ADVENTURE ABS 85 CV, 63 KW 2CIL. E8GS/K75 0B05 BASTIDORES: --- 2013-2015
BMW F 800 800 GS ADVENTURE ABS 85 CV, 63 KW 2CIL. E8GS/K75 0B55 BASTIDORES: --- 2016
BMW F 800 800 GS ADVENTURE ABS ESA 48 CV, 35 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 GS ADVENTURE ABS ESA 85 CV, 63 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW G 650 GS SERTÄO 34 CV, 25 KW 1CIL. E650G/R13 0136 BASTIDORES: --- 2012
BMW G 650 GS SERTÄO 48 CV, 35 KW 1CIL. E650G/R13 0136 BASTIDORES: --- 2012
BMW G 650 GS SERTÄO ABS 34 CV, 25 KW 1CIL. E650G/R13 0136 BASTIDORES: --- 2012-2014
BMW G 650 GS SERTÄO ABS 48 CV, 35 KW 1CIL. E650G/R13 0136 BASTIDORES: --- 2012-2014
