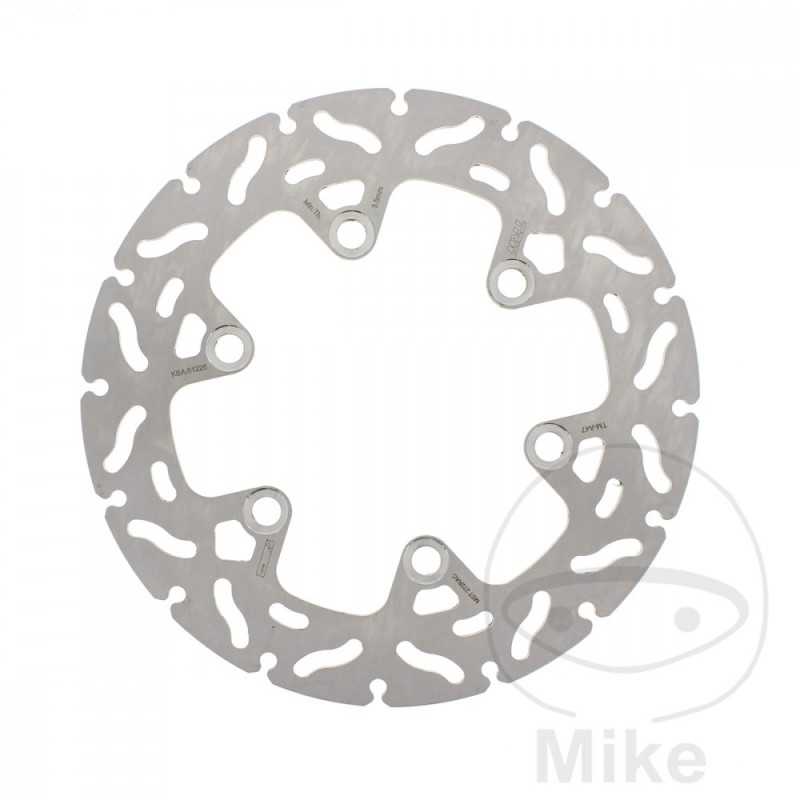

TRW Rigid brake disc for motorcycle RACING 788.25.29

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 104.8MM
CIRCLE SIZE: 124 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2020-2022
KTM Duke 125 15 CV, 11 kw 1cil. - Bastidores: --- 2011-2012
KTM Duke 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2013-2021
KTM Duke 200 26 CV, 19,1 kw 1cil. - Bastidores: --- 2012
KTM Duke 200 ABS 26 CV, 19,1 kw 1cil. - Bastidores: --- 2013-2017
KTM Duke 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2013-2020
KTM Duke 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021-2022
KTM RC 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 125 ABS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
KTM RC 200 ABS 26 CV, 19 kw 1cil. - Bastidores: --- 2014-2017
KTM RC 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 390 R ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2019
