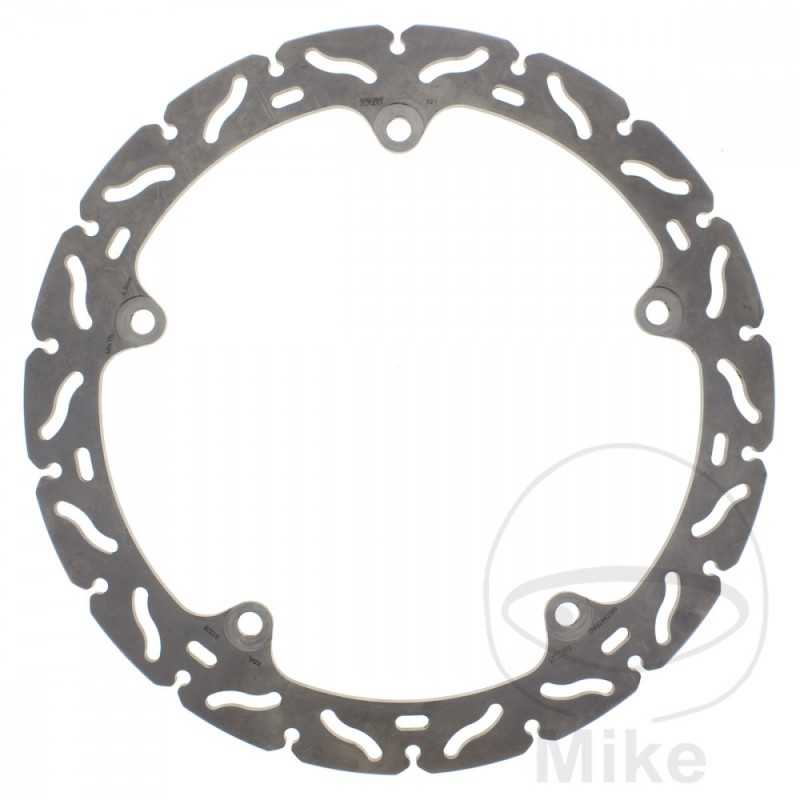

TRW Rigid brake disc for motorcycle RACING 788.25.19

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 210.3MM
CIRCLE SIZE: 230 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CTX 700 D DCT ABS DCT SEMICARENADO 48 CV, 35 KW 2CIL. RC69C E BASTIDORES: JH2 RC69C-EK000001-- 2014-2017
HONDA CTX 700 ND DCT ABS CARENADO MANILLAR 48 CV, 35 KW 2CIL. RC68C E BASTIDORES: JH2 RC68C-EK000001-- 2014-2016
HONDA NC 700 D INTEGRA DCT ABS 48 CV, 35 KW 2CIL. RC62B C BASTIDORES: JH2 RC62B-CK000001-JH2 RC62B-CK099999 2012
HONDA NC 700 D INTEGRA DCT ABS 52 CV, 38 KW 2CIL. RC62A C BASTIDORES: JH2 RC62A-CK000001-JH2 RC62A-CK099999 2012
HONDA NC 700 D INTEGRA DCT ABS 52 CV, 38 KW 2CIL. RC62A D BASTIDORES: JH2 RC62A-DK100001-- 2013
HONDA NC 700 S 48 CV, 35 KW 2CIL. RC61B C BASTIDORES: JH2 RC61B-CK000001-JH2 RC61B-CK099999 2012
HONDA NC 700 S 48 CV, 35 KW 2CIL. RC61B D BASTIDORES: JH2 RC61B-DK100001-- 2013-2014
HONDA NC 700 SA ABS 48 CV, 35 KW 2CIL. RC61C C BASTIDORES: JH2 RC61C-CK000001-JH2 RC61C-CK099999 2012
HONDA NC 700 SA ABS 48 CV, 35 KW 2CIL. RC61C D BASTIDORES: JH2 RC61C-DK100001-- 2013-2014
HONDA NC 700 SA ABS 52 CV, 38 KW 2CIL. RC61A C BASTIDORES: JH2 RC61A-CK000001-JH2 RC61A-CK099999 2012
HONDA NC 700 SA ABS 52 CV, 38 KW 2CIL. RC61A D BASTIDORES: JH2 RC61A-DK100001-- 2013-2014
HONDA NC 700 SD DCT ABS 48 CV, 35 KW 2CIL. RC61D C BASTIDORES: JH2 RC61D-CK000001-JH2 RC61D-CK099999 2012
HONDA NC 700 SD DCT ABS 48 CV, 35 KW 2CIL. RC61D D BASTIDORES: JH2 RC61D-DK100001-- 2013
HONDA NC 700 SD DCT ABS 48 CV, 35 KW 2CIL. RC61D E BASTIDORES: JH2 RC61D-EK200001-- 2014
HONDA NC 700 X 48 CV, 35 KW 2CIL. RC63C C BASTIDORES: JH2 RC63C-CK000001-JH2 RC63C-CK009999 2012
HONDA NC 700 X 48 CV, 35 KW 2CIL. RC63C D BASTIDORES: JH2 RC63C-DK100001-- 2013-2014
HONDA NC 700 X 52 CV, 38 KW 2CIL. RC63A C BASTIDORES: JH2 RC63A-CK500001-JH2 RC63A-CK509999 2012
HONDA NC 700 X 52 CV, 38 KW 2CIL. RC63A D BASTIDORES: JH2 RC63A-DK600001-- 2013-2014
HONDA NC 700 XA ABS 48 CV, 35 KW 2CIL. RC63E C BASTIDORES: JH2 RC63E-CK000001-JH2 RC63E-CK009999 2012
HONDA NC 700 XA ABS 48 CV, 35 KW 2CIL. RC63E D BASTIDORES: JH2 RC63E-DK100001-- 2013-2014
HONDA NC 700 XA ABS 52 CV, 38 KW 2CIL. RC63B C BASTIDORES: JH2 RC63B-CK500001-JH2 RC63B-CK509999 2012
HONDA NC 700 XA ABS 52 CV, 38 KW 2CIL. RC63B D BASTIDORES: JH2 RC63B-DK600001-- 2013-2014
HONDA NC 700 XD DCT ABS 48 CV, 35 KW 2CIL. RC63F D BASTIDORES: JH2 RC63F-DK000001-- 2013-2014
HONDA NC 700 XD DCT ABS 52 CV, 38 KW 2CIL. RC63D C BASTIDORES: JH2 RC63D-CK000001-JH2 RC63D-CK009999 2012
HONDA NC 700 XD DCT ABS 52 CV, 38 KW 2CIL. RC63D D BASTIDORES: JH2 RC63D-DK100001-- 2013-2014
HONDA NC 750 D INTEGRA DCT ABS 48 CV, 35 KW 2CIL. RC89B J BASTIDORES: JH2 RC89B-JK000001-JH2 RC89B-JK299999 2018
HONDA NC 750 D INTEGRA DCT ABS 48 CV, 35 KW 2CIL. RC89B K BASTIDORES: JH2 RC89B-KK100001-- 2019-2021
HONDA NC 750 D INTEGRA DCT ABS 55 CV, 40 KW 2CIL. RC89A J BASTIDORES: JH2 RC89A-JK200001-JH2 RC89A-JK299999 2018
HONDA NC 750 D INTEGRA DCT ABS 55 CV, 40 KW 2CIL. RC89A K BASTIDORES: JH2 RC89A-KK300001-- 2019-2021
HONDA NC 750 D INTEGRA DCT ABS 55/48 CV, 40/35 KW 2CIL. RC71A E BASTIDORES: JH2 RC71A-EK000001-- 2014-2015
HONDA NC 750 D INTEGRA DCT ABS 55/48 CV, 40/35 KW 2CIL. RC89A G BASTIDORES: JH2 RC89A-GK000001-JH2 RC89A-GK099999 2016
HONDA NC 750 D INTEGRA DCT ABS 55/48 CV, 40/35 KW 2CIL. RC89A H BASTIDORES: JH2 RC89A-HK100001-JH2 RC89A-HK199999 2017
HONDA NC 750 J NM4 VULTUS DCT ABS 55 CV, 40,3 KW 2CIL. RC82A F BASTIDORES: JH2 RC82A-FK000001-JH2 RC82A-FK099999 2014-2016
HONDA NC 750 J NM4 VULTUS DCT ABS 55 CV, 40,3 KW 2CIL. RC92A H BASTIDORES: JH2 RC92A-HK000001-- 2017
HONDA NC 750 SA ABS 48 CV, 35 KW 2CIL. RC88C J BASTIDORES: JH2 RC88C-JK000001-- 2018
HONDA NC 750 SA ABS 48 CV, 35 KW 2CIL. RC88C K BASTIDORES: JH2 RC88C-KK100001-- 2019-2021
HONDA NC 750 SA ABS 55 CV, 40,3 KW 2CIL. RC70B E BASTIDORES: JH2 RC70B-EK000001-- 2014
HONDA NC 750 SA ABS 55 CV, 40,3 KW 2CIL. RC70B F BASTIDORES: JH2 RC70B-FK100001-- 2015
HONDA NC 750 SA ABS 55 CV, 40,3 KW 2CIL. RC88A G BASTIDORES: JH2 RC88A-GK000001-JH2 RC88A-GK099999 2016
HONDA NC 750 SA ABS 55 CV, 40,3 KW 2CIL. RC88A H BASTIDORES: JH2 RC88A-HK100001-- 2017
HONDA NC 750 SA ABS 55 CV, 40,3 KW 2CIL. RC88A J BASTIDORES: JH2 RC88A-JK200001-- 2018
HONDA NC 750 SA ABS 55 CV, 40,3 KW 2CIL. RC88A K BASTIDORES: JH2 RC88A-KK300001-- 2019-2021
HONDA NC 750 SD DCT ABS 48 CV, 35 KW 2CIL. RC88B K BASTIDORES: JH2 RC88D-KK100001-- 2021
HONDA NC 750 SD DCT ABS 48 CV, 35 KW 2CIL. RC88D J BASTIDORES: JH2 RC88D-JK000001-- 2018
HONDA NC 750 SD DCT ABS 48 CV, 35 KW 2CIL. RC88D K BASTIDORES: JH2 RC88D-KK100001-- 2019-2020
HONDA NC 750 SD DCT ABS 55 CV, 40,3 KW 2CIL. RC70C E BASTIDORES: JH2 RC70C-EK000001-- 2014-2015
HONDA NC 750 SD DCT ABS 55 CV, 40,3 KW 2CIL. RC70D E BASTIDORES: JH2 RC70D-EK000001-- 2014-2015
HONDA NC 750 SD DCT ABS 55 CV, 40,3 KW 2CIL. RC88B G BASTIDORES: JH2 RC88B-GK000001-JH2 RC88B-GK099999 2016
HONDA NC 750 SD DCT ABS 55 CV, 40,3 KW 2CIL. RC88B H BASTIDORES: JH2 RC88B-HK100001-- 2017
HONDA NC 750 SD DCT ABS 55 CV, 40,5 KW 2CIL. RC88B J BASTIDORES: JH2 RC88B-JK200001-- 2018
HONDA NC 750 SD DCT ABS 55 CV, 40,5 KW 2CIL. RC88B K BASTIDORES: JH2 RC88B-KK300001-- 2019-2021
HONDA NC 750 XA ABS 48 CV 35 KW 2CIL. RH09C M BASTIDORES: JH2 RH09C-MK000001-- 2021-2022
HONDA NC 750 XA ABS 48 CV, 35 KW 2CIL. RC90C J BASTIDORES: JH2 RC90C-JK000001-- 2018
HONDA NC 750 XA ABS 48 CV, 35 KW 2CIL. RC90C K BASTIDORES: JH2 RC90C-KK100001-JH2 RC90C-KK199999 2019
HONDA NC 750 XA ABS 48 CV, 35 KW 2CIL. RC90C L BASTIDORES: JH2 RC90C-LK200001-- 2020
HONDA NC 750 XA ABS 55 CV, 40,3 KW 2CIL. RC72B E BASTIDORES: JH2 RC72B-EK000001-- 2014-2015
HONDA NC 750 XA ABS 55 CV, 40,3 KW 2CIL. RC90A G BASTIDORES: JH2 RC90A-GK000001-JH2 RC90A-GK099999 2016
HONDA NC 750 XA ABS 55 CV, 40,3 KW 2CIL. RC90A H BASTIDORES: JH2 RC90A-HK100001-JH2 RC90A-HK199999 2017
HONDA NC 750 XA ABS 55 CV, 40,5 KW 2CIL. RC90A J BASTIDORES: JH2 RC90A-JK200001-- 2018
HONDA NC 750 XA ABS 55 CV, 40,5 KW 2CIL. RC90A K BASTIDORES: JH2 RC90A-KK300001-JH2 RC90A-KK399999 2019
HONDA NC 750 XA ABS 55 CV, 40,5 KW 2CIL. RC90A L BASTIDORES: JH2 RC90A-LK400001-- 2020
HONDA NC 750 XA ABS 59 CV 43 KW 2CIL. RH09A M BASTIDORES: JH2 RH09A-MK000001-- 2021-2022
HONDA NC 750 XD DCT ABS 48 CV 35 KW 2CIL. RH09D M BASTIDORES: JH2 RH09D-MK000001-- 2021-2022
HONDA NC 750 XD DCT ABS 48 CV, 35 KW 2CIL. RC90D J BASTIDORES: JH2 RC90D-JK000001-- 2018
HONDA NC 750 XD DCT ABS 48 CV, 35 KW 2CIL. RC90D K BASTIDORES: JH2 RC90D-KK100001-JH2 RC90D-KK199999 2019
HONDA NC 750 XD DCT ABS 48 CV, 35 KW 2CIL. RC90D L BASTIDORES: JH2 RC90D-LK200001-- 2020
HONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC72C E BASTIDORES: JH2 RC72C-EK000001-- 2014-2015
HONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC72D E BASTIDORES: JH2 RC72D-EK000001-- 2014-2015
HONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC90B G BASTIDORES: JH2 RC90B-GK000001-JH2 RC90B-GK099999 2016
HONDA NC 750 XD DCT ABS 55 CV, 40,3 KW 2CIL. RC90B H BASTIDORES: JH2 RC90B-HK100001-JH2 RC90B-HK199999 2017
HONDA NC 750 XD DCT ABS 55 CV, 40,5 KW 2CIL. RC90B J BASTIDORES: JH2 RC90B-JK200001-- 2018
HONDA NC 750 XD DCT ABS 55 CV, 40,5 KW 2CIL. RC90B K BASTIDORES: JH2 RC90B-KK300001-JH2 RC90B-KK399999 2019
HONDA NC 750 XD DCT ABS 55 CV, 40,5 KW 2CIL. RC90B L BASTIDORES: JH2 RC90B-LK400001-- 2020
HONDA NC 750 XD DCT ABS 59 CV 43 KW 2CIL. RH09B M BASTIDORES: JH2 RH09B-MK000001-- 2021-2022
