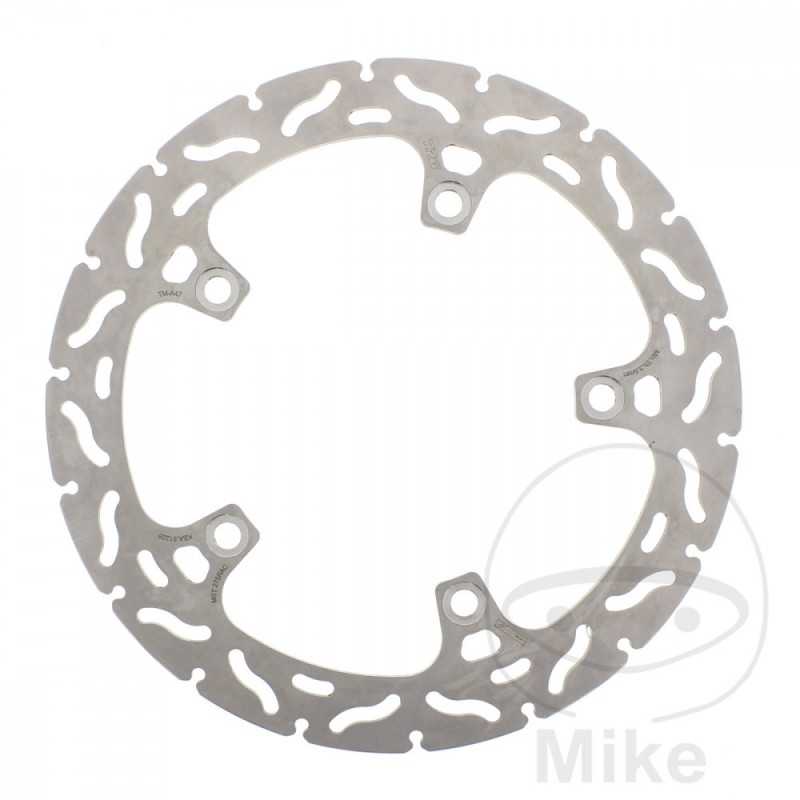

TRW Rigid brake disc for motorcycle RACING 788.25.18

All brake discs have an ABE, also for scooters.

Discs are low-wear and have up to 30% longer life than some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs are made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature buildup and breakdown allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually driven with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake edge

- In rigid and floating versions

- Coordinated design from front to rear axle.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50A D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RS REPSOL 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 RS REPSOL 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 RS REPSOL 13,6 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RW 13,3 CV, 10 KW 1CIL. JC50A B BASTIDORES: MLH JC50A-B5000001-MLH JC50A-B5099999 2011
HONDA CBR 125 RW 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B B BASTIDORES: MLH JC50B-B5000001-MLH JC50B-B5099999 2011
