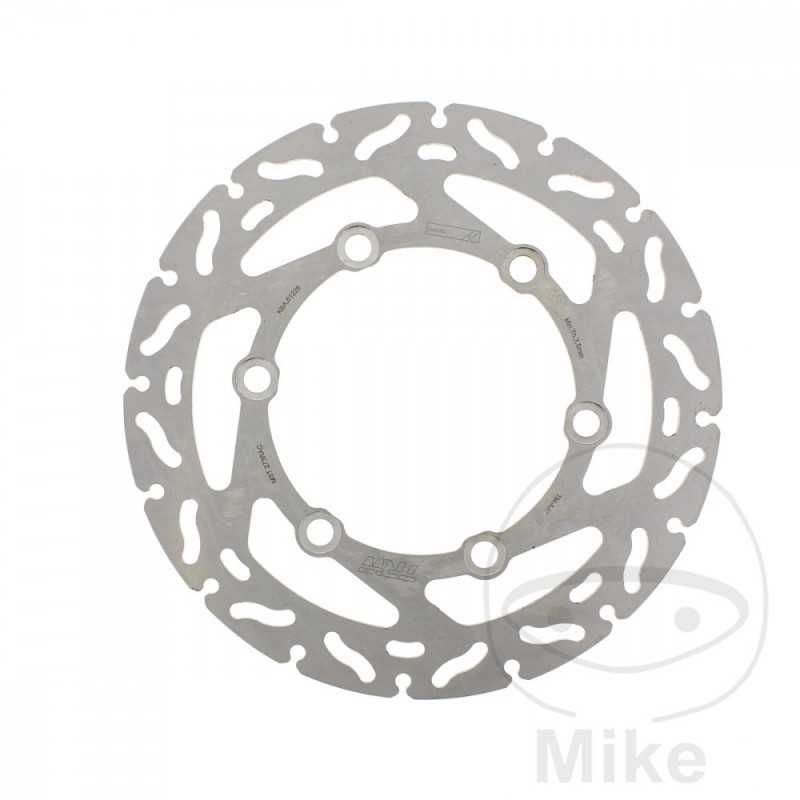

TRW Rigid brake disc for motorcycle RACING 788.25.16

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 115.3MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 125 F (GLR125) 10,6 CV, 7,8 KW 1CIL. JC64A F BASTIDORES: LWB JC64A-F1000015-LWB JC64A-F1099999 2015-2016
HONDA CB 125 F (GLR125WH) CBS 10,6 CV, 7,8 KW 1CIL. JC74A H BASTIDORES: LWB JC74A-H1000017-- 2017-2020
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A 9 BASTIDORES: ME4 JC40A henceforth98000001-ME4 JC40A henceforth98999999 2009
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A A BASTIDORES: ME4 JC40A-A8000001-ME4 JC40A-A8999999 2010
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A B BASTIDORES: ME4 JF40A-B8000001-ME4 JC40A-B8999999 2011-2012
HONDA CBF 125 M 11,3 CV, 8,3 KW 1CIL. JC40A D BASTIDORES: ME4 JC40A-D8000001-- 2013-2016
HONDA VT 125 C SHADOW 15 CV, 11 KW 2CIL. JC29A X BASTIDORES: JH2 JC29A-XK000001-- 1999
HONDA VT 125 C SHADOW 15 CV, 11 KW 2CIL. JC29A Y BASTIDORES: JH2 JC29A-YK050001-- 2000
HONDA VT 125 C SHADOW 15 CV, 11 KW 2CIL. JC31A 1 BASTIDORES: VTM JC31A henceforth1E000001-VTM JC31A henceforth1E099999 2001-2002
HONDA VT 125 C SHADOW 15 CV, 11 KW 2CIL. JC31A 3 BASTIDORES: VTM JC31A henceforth3E010001-VTMJC31A henceforth3E099999 2003
HONDA VT 125 C SHADOW 15 CV, 11 KW 2CIL. JC31A 4 BASTIDORES: VTM JC31A henceforth4E020001-- 2004-2005
HONDA VT 125 C SHADOW 15 CV, 11 KW 2CIL. JC31A 6 BASTIDORES: VTM JC31A henceforth6E230001-- 2006-2008
HONDA VT 125 C SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC29B X BASTIDORES: JH2 JC29B-XK000001-- 1999
HONDA VT 125 C SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC29B Y BASTIDORES: JH2 JC29B-YK050001-- 2000
HONDA VT 125 C SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC31A 1 BASTIDORES: VTM JC31A henceforth1E000001-VTM JC31A henceforth1E099999 2001-2002
HONDA VT 125 C SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC31A 3 BASTIDORES: VTM JC31A henceforth3E010001-VTM JC31A henceforth3E099999 2003
HONDA VT 125 C SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC31A 4 BASTIDORES: VTM JC31A henceforth4E020001-- 2004-2005
HONDA VT 125 C2 SHADOW 15 CV, 11 KW 2CIL. JC29A Y BASTIDORES: JH2 JC29A-YK050001-- 2000
HONDA VT 125 C2 SHADOW 15 CV, 11 KW 2CIL. JC31A 1 BASTIDORES: VTM JC31A henceforth1E500001-VTM JC31A henceforth1E599999 2001-2002
HONDA VT 125 C2 SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC29B Y BASTIDORES: JH2 JC29B-YK050001-- 2000
HONDA VT 125 C2 SHADOW 80 KM/H 15 CV, 11 KW 2CIL. JC31A 1 BASTIDORES: VTM JC31A henceforth1E500001-VTM JC31A henceforth1E599999 2001-2002
