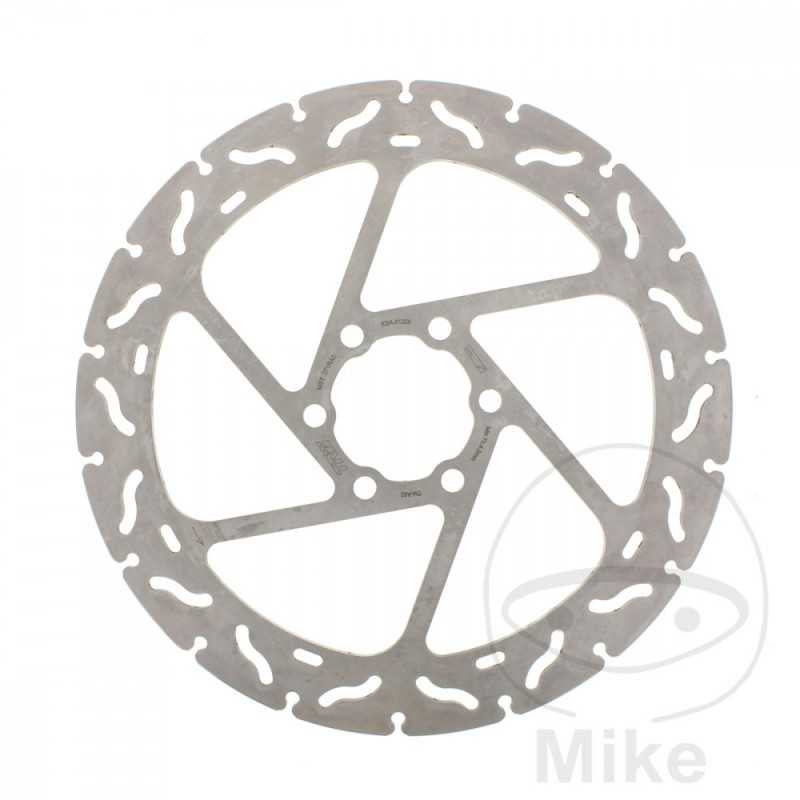

TRW Rigid brake disc for motorcycle RACING 788.25.15

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 60.3MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM DUKE 125 ABS 15 CV, 11 KW 1CIL. - BASTIDORES: --- 2013-2016
KTM DUKE 200 ABS 26 CV, 19,1 KW 1CIL. - BASTIDORES: --- 2013-2017
KTM DUKE 390 ABS 44 CV, 32 KW 1CIL. - BASTIDORES: --- 2013-2017
KTM RC 125 ABS 15 CV, 11 KW 1CIL. - BASTIDORES: --- 2014-2016
KTM RC 200 ABS 26 CV, 19 KW 1CIL. - BASTIDORES: --- 2014-2016
KTM RC 390 ABS 44 CV, 32 KW 1CIL. - BASTIDORES: --- 2014-2020
KTM RC 390 ABS EURO5 44 CV, 32 KW 1CIL. - BASTIDORES: --- 2021-2022
