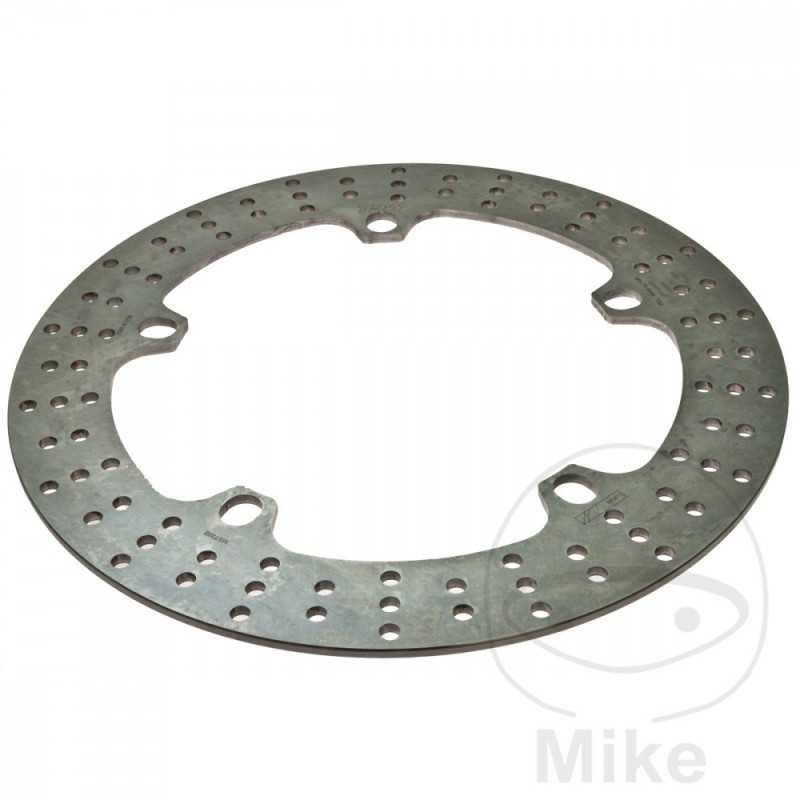

TRW Rigid brake disc with mounting kit 7882109/7882110 788.23.35

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 202.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 16.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 800 800 R 34 CV, 25 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2012
BMW F 800 800 R 87 CV, 64 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2012
BMW F 800 800 R ABS 34 CV, 25 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2012
BMW F 800 800 R ABS 48 CV, 35 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 R ABS 48 CV, 35 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2013-2014
BMW F 800 800 R ABS 48 CV, 35 KW 2CIL. E8ST/K73 0B04 BASTIDORES: --- 2015-2016
BMW F 800 800 R ABS 87 CV, 64 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2014
BMW F 800 800 R ABS 90 CV, 66 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 R ABS 90 CV, 66 KW 2CIL. E8ST/K73 0B04 BASTIDORES: --- 2015-2016
BMW F 800 800 R ABS ESA 48 CV, 35 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 R ABS ESA 90 CV, 66 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 S 34 CV, 25 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2006-2010
BMW F 800 800 S 85 CV, 62,5 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2006-2010
BMW F 800 800 S ABS 34 CV, 25 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2007-2010
BMW F 800 800 S ABS 85 CV, 62,5 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2007-2010
BMW F 800 800 ST 34 CV, 25 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2006-2012
BMW F 800 800 ST 85 CV, 62,5 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2006-2012
BMW F 800 800 ST ABS 34 CV, 25 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2007-2012
BMW F 800 800 ST ABS 85 CV, 62,5 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2007-2012
BMW K 1200 R 5,5 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0584 BASTIDORES: --- 2005-2008
BMW K 1200 R 5,5 PULGADAS LLANTA ABS 163 CV, 120 KW 4CIL. K12R/K43 0584 BASTIDORES: --- 2005-2008
BMW K 1200 R 6,0 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0584 BASTIDORES: --- 2005-2008
BMW K 1200 R 6,0 PULGADAS LLANTA ABS 163 CV, 120 KW 4CIL. K12R/K43 0584 BASTIDORES: --- 2005-2008
BMW K 1200 R SPORT 5,5 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 R SPORT 6,0 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 R SPORT ABS 5,5 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 R SPORT ABS 6,0 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW R 1200 HP2 SPORT 133 CV, 98 KW 2CIL. R12S/K29 0458 BASTIDORES: --- 2008-2011
BMW R 1200 HP2 SPORT ABS 133 CV, 98 KW 2CIL. R12S/K29 0458 BASTIDORES: --- 2008-2011
BMW R 1200 NINET ABS 110 CV, 81 KW 2CIL. R1ST/K21 0A06 BASTIDORES: --- 2013-2016
BMW R 1200 NINET PURE ABS LLANTA DE FUNDICIÓN 110 CV, 81 KW 2CIL. 1N12/K22 0J11 BASTIDORES: --- 2017-2020
BMW R 1200 NINET PURE ABS LLANTA DE RADIOS 110 CV, 81 KW 2CIL. 1N12/K22 0J11 BASTIDORES: --- 2017-2020
BMW R 1200 NINET RACER ABS LLANTA DE FUNDICIÓN 110 CV, 81 KW 2CIL. 1N12/K32 0J21 BASTIDORES: --- 2017-2020
BMW R 1200 NINET RACER ABS LLANTA DE RADIOS 110 CV, 81 KW 2CIL. 1N12/K32 0J21 BASTIDORES: --- 2017-2020
BMW R 1200 NINET SCRAMBLER ABS LLANTA DE FUNDICIÓN 110 CV, 81 KW 2CIL. 1N12/K23 0J31 BASTIDORES: --- 2016-2020
BMW R 1200 NINET SCRAMBLER ABS LLANTA DE RADIOS 110 CV, 81 KW 2CIL. 1N12/K23 0J31 BASTIDORES: --- 2017-2020
BMW R 1200 NINET URBAN G/S ABS LLANTA DE FUNDICIÓN 110 CV, 81 KW 2CIL. 1N12/K33 0J41 BASTIDORES: --- 2017-2020
BMW R 1200 NINET URBAN G/S ABS LLANTA DE RADIOS 110 CV, 81 KW 2CIL. 1N12/K33 0J41 BASTIDORES: --- 2017-2020
BMW R 1200 R 109 CV, 80 KW 2CIL. R1ST/K27 0378 BASTIDORES: --- 2007-2010
BMW R 1200 R 110 CV, 81 KW 2CIL. R1ST/K27 0400 BASTIDORES: --- 2011-2012
BMW R 1200 R 90 AÑOS ABS 110 CV, 81 KW 2CIL. R1ST/K27 0400 BASTIDORES: --- 2013
BMW R 1200 R ABS 109 CV, 80 KW 2CIL. R1ST/K27 0378 BASTIDORES: --- 2007-2010
BMW R 1200 R ABS 110 CV, 81 KW 2CIL. R1ST/K27 0400 BASTIDORES: --- 2011-2014
BMW R 1200 R ABS LC 125 CV, 92 KW 2CIL. 1R12/K53 0A04 BASTIDORES: --- 2017-2018
BMW R 1200 R ABS LC 125 CV, 92 KW 2CIL. R12WR/K53 0A04 BASTIDORES: --- 2014-2016
BMW R 1200 R ABS LC DTC 125 CV, 92 KW 2CIL. 1R12/K53 0A04 BASTIDORES: --- 2017-2018
BMW R 1200 R ABS LC ESA 125 CV, 92 KW 2CIL. 1R12/K53 0A04 BASTIDORES: --- 2017-2018
BMW R 1200 R ABS LC ESA 125 CV, 92 KW 2CIL. R12WR/K53 0A04 BASTIDORES: --- 2014-2016
BMW R 1200 R CLASSIC ABS 110 CV, 81 KW 2CIL. R1ST/K27 0400 BASTIDORES: --- 2013-2014
BMW R 1200 RS ABS LC 125 CV, 92 KW 2CIL. 1R12/K54 0A05 BASTIDORES: --- 2017-2018
BMW R 1200 RS ABS LC DTC 125 CV, 92 KW 2CIL. 1R12/K54 0A05 BASTIDORES: --- 2017-2018
BMW R 1200 RS ABS LC ESA 125 CV, 92 KW 2CIL. 1R12/K54 0A05 BASTIDORES: --- 2017-2018
BMW R 1200 RT 90 AÑOS ABS 110 CV, 81 KW 2CIL. R12T/K26 0430 BASTIDORES: --- 2013-2014
BMW R 1200 RT ABS 110 CV, 81 KW 2CIL. R12T/K26 0368 BASTIDORES: --- 2005-2009
BMW R 1200 RT ABS 110 CV, 81 KW 2CIL. R12T/K26 0430 BASTIDORES: --- 2010-2013
BMW R 1200 RT ABS LC 125 CV, 92 KW 2CIL. 1T12/K52 0A03 BASTIDORES: --- 2017-2018
BMW R 1200 RT ABS LC 125 CV, 92 KW 2CIL. R12WT/K52 0A03 BASTIDORES: --- 2013-2016
BMW R 1200 RT ABS LC DTC 125 CV, 92 KW 2CIL. 1T12/K52 0A03 BASTIDORES: --- 2017-2018
BMW R 1200 RT ABS LC ESA 125 CV, 92 KW 2CIL. 1T12/K52 0A03 BASTIDORES: --- 2017-2018
BMW R 1200 S 5,5 PULGADAS LLANTA 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 S 5,5 PULGADAS LLANTA ABS 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 S 6,0 PULGADAS LLANTA 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 S 6,0 PULGADAS LLANTA ABS 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 ST 110 CV, 81 KW 2CIL. R1ST/K28 0328 BASTIDORES: --- 2005-2008
BMW R 1200 ST ABS 110 CV, 81 KW 2CIL. R1ST/K28 0328 BASTIDORES: --- 2005-2008
BMW S 1000 RR ABS 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR ABS DTC 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2020
BMW S 1000 RR ABS DTC DDC DYNAMIK PAKET 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2020
BMW S 1000 RR ABS DTC M-PAKET 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2020
BMW S 1000 RR ABS DTC RACE-PAKET 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2020
BMW S 1000 RR ABS M-PAQUETE 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR ABS PAQUETE DINÁMICO 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR ABS RACE-PAQUETE 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR SPORT ABS DTC DDC 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2020
