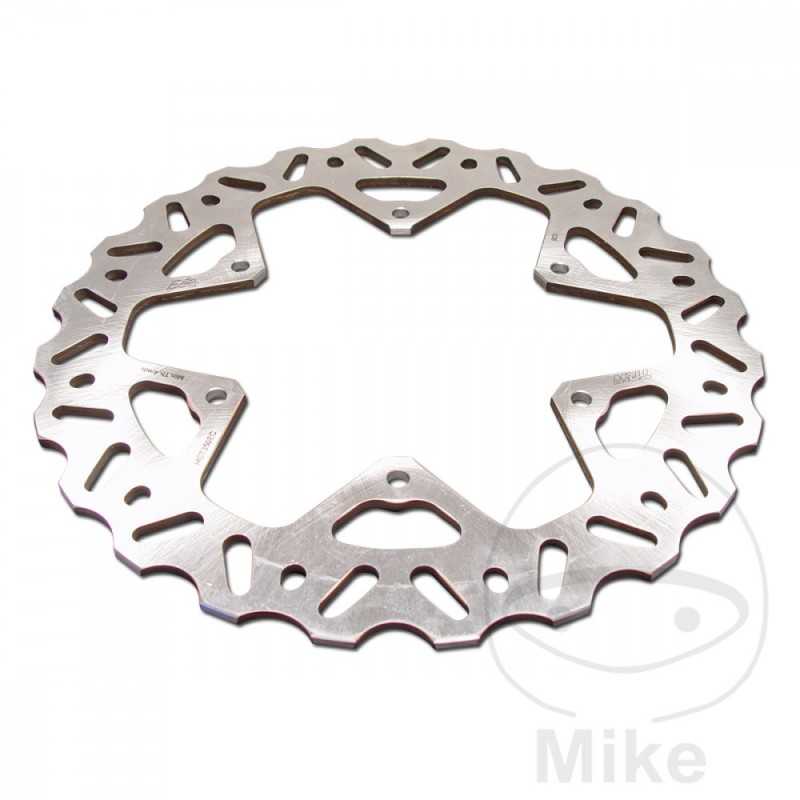

TRW Rigid brake disc for motorcycle OFFROAD 788.23.27

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

suitable for offroad

- Alloy steel hardened for long life.

- Can be combined with all off-road surface mixes

- Attractive design and high-quality workmanship.

- Perfect response, excellent dosage

- Extremely attractive price level
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 115MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 250 F 1cil. CG30W 1HCB Bastidores: CG30W henceforth07923-- 2013
Yamaha WR 250 F 1cil. CG30W 1HCD Bastidores: CG30W henceforth08361-- 2014
Yamaha WR 250 F 1cil. CG36W 2GB3 Bastidores: CG36W henceforth00023-- 2015
Yamaha WR 250 F 1cil. CG36W 2GB8 Bastidores: CG36W henceforth02355-- 2016
Yamaha WR 250 F 1cil. CG36W 2GBD Bastidores: CG36W henceforth04305-- 2017
Yamaha WR 250 F 1cil. CG36W 2GBM Bastidores: CG36W henceforth06676-- 2019
Yamaha WR 250 F 1cil. CG42W BAK4 Bastidores: CG42W henceforth00351-- 2020
Yamaha WR 250 F 1cil. RE251EL 2GBD Bastidores: RE251EL-700007-- 2017
Yamaha WR 250 F 1cil. RE251EL 2GBH Bastidores: RE251EL-800039-- 2018
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG11W 5PH6 Bastidores: CG11W henceforth04395-- 2002
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG16W 5UM2 Bastidores: CG16W henceforth00029-- 2003
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG16W 5UM6 Bastidores: CG16W henceforth06110-- 2004
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG22W 5UM9 Bastidores: CG22W henceforth00101-- 2005
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG24W 5UMC Bastidores: CG24W henceforth00101-- 2006
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG26W 5UMF Bastidores: CG26W henceforth00139-- 2007
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG30W 1HC3 Bastidores: CG30W henceforth06519-- 2011
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG30W 1HC7 Bastidores: CG30W henceforth07497-- 2012
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG30W 5UML Bastidores: CG30W henceforth01161-- 2008
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG30W 5UMR Bastidores: CG30W henceforth03568-- 2009
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG30W 5UMV Bastidores: CG30W henceforth05844-- 2010
Yamaha WR 250 F GP 1cil. - Bastidores: --- 2018-2019
Yamaha WR 426 F 50,4/37,4 CV, 37,1/27,5 kw 1cil. CJ02W 5NG6 Bastidores: CJ02W henceforth04700-- 2002
Yamaha WR 450 F 1cil. CJ19W 2GC3 Bastidores: CJ19W henceforth00073-- 2016
Yamaha WR 450 F 1cil. CJ19W 2GC8 Bastidores: CJ19W henceforth02513-- 2017
Yamaha WR 450 F 1cil. CJ25W B7R4 Bastidores: CJ25W henceforth00371-- 2019
Yamaha WR 450 F 1cil. CJ25W B7R9 Bastidores: CJ25W henceforth01746-- 2020
Yamaha WR 450 F 1cil. CJ28W BDB4 Bastidores: CJ28W henceforth00477-- 2021
Yamaha WR 450 F 1cil. CJ28W BDB8 Bastidores: CJ28W henceforth02507-- 2022
Yamaha WR 450 F 1cil. DJ031 1DX1 Bastidores: DJ031 henceforth00301-- 2012
Yamaha WR 450 F 1cil. DJ031 1DX6 Bastidores: DJ031 henceforth01264-- 2013
Yamaha WR 450 F 1cil. DJ031 1DXA Bastidores: DJ031 henceforth01848-- 2014
Yamaha WR 450 F 1cil. DJ031 1DXF Bastidores: DJ031 henceforth02107-- 2015
Yamaha WR 450 F 1cil. RE451EL 2GC8 Bastidores: RE451EL-700006-- 2017
Yamaha WR 450 F 1cil. RE451EL/ CJ19W 2GCC Bastidores: RE451EL-800010-- 2018
Yamaha WR 450 F 1cil. RE451W 2GC8 Bastidores: RE451WL-700532-- 2017
Yamaha WR 450 F 52,5/40,8 CV, 38,6/30 kw 1cil. CJ04W 5TJ2 Bastidores: CJ04W henceforth00037-- 2003
Yamaha WR 450 F 52,5/40,8 CV, 38,6/30 kw 1cil. CJ04W 5TJ6 Bastidores: CJ04W henceforth07153-- 2004
Yamaha WR 450 F 52,5/40,8 CV, 38,6/30 kw 1cil. CJ07W 5TJ9 Bastidores: CJ07W henceforth00101-- 2005
Yamaha WR 450 F 52,5/40,8 CV, 38,6/30 kw 1cil. CJ09W 5TJC Bastidores: CJ09W henceforth00101-- 2006
Yamaha WR 450 F 53 CV, 39 kw 1cil. CJ12W 5TJF Bastidores: CJ12W henceforth00032-- 2007
Yamaha WR 450 F 53 CV, 39 kw 1cil. CJ13W 1HB3 Bastidores: CJ13W henceforth10002-- 2011
Yamaha WR 450 F 53 CV, 39 kw 1cil. CJ13W 5TJL Bastidores: CJ13W henceforth01577-- 2008
Yamaha WR 450 F 53 CV, 39 kw 1cil. CJ13W 5TJR Bastidores: CJ13W henceforth04916-- 2009
Yamaha WR 450 F 53 CV, 39 kw 1cil. CJ13W 5TJV Bastidores: CJ13W henceforth08535-- 2010
Yamaha WR 450 F GP 1cil. - Bastidores: --- 2018-2019
Yamaha YZ 125 1cil. CE16C 1SR6 Bastidores: CE16C henceforth20937-- 2013
Yamaha YZ 125 1cil. CE16C 1SRA Bastidores: CE16C henceforth22368-- 2014
Yamaha YZ 125 1cil. CE16C 1SRE Bastidores: CE16C henceforth02447-- 2015
Yamaha YZ 125 1cil. CE16C 1SRJ Bastidores: CE16C henceforth27164-- 2016
Yamaha YZ 125 1cil. CE16C 1SRN Bastidores: CE16C henceforth29632-- 2017
Yamaha YZ 125 1cil. CE16C 1SRT Bastidores: CE16C henceforth33073-- 2018
Yamaha YZ 125 1cil. CE16C B0V2 Bastidores: CE16C henceforth36983-- 2019
Yamaha YZ 125 1cil. CE16C B0V6 Bastidores: CE16C henceforth40775-- 2020
Yamaha YZ 125 39 CV, 29 kw 1cil. CE09C 5NY2 Bastidores: CE09C henceforth00542-- 2002
Yamaha YZ 125 39 CV, 29 kw 1cil. CE10C 5UN2 Bastidores: CE10C henceforth00344-- 2003
Yamaha YZ 125 39 CV, 29 kw 1cil. CE13C 5XE2 Bastidores: CE13C henceforth00176-- 2004
Yamaha YZ 125 39 CV, 29 kw 1cil. CE15C 1C32 Bastidores: CE15C henceforth00348-- 2005
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C36 Bastidores: CE16C henceforth00284-- 2006
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3A Bastidores: CE16C henceforth07439-- 2007
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3E Bastidores: CE16C henceforth10244-- 2008
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3J Bastidores: CE16C henceforth13131-- 2009
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3N Bastidores: CE16C henceforth15372-- 2010
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3T Bastidores: CE16C henceforth16971-- 2011
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1SR2 Bastidores: CE16C henceforth19022-- 2012
Yamaha YZ 250 2T 1cil. CG23C 1SS2 Bastidores: CG23C henceforth20132-- 2012
Yamaha YZ 250 2T 1cil. CG23C 1SS6 Bastidores: CG23C henceforth22096-- 2013
Yamaha YZ 250 2T 1cil. CG23C 1SSA Bastidores: CG23C henceforth24204-- 2014
Yamaha YZ 250 2T 1cil. CG23C 1SSE Bastidores: CG23C henceforth26679-- 2015
Yamaha YZ 250 2T 1cil. CG23C 1SSJ Bastidores: CG23C henceforth29196-- 2016
Yamaha YZ 250 2T 1cil. CG23C 1SSN Bastidores: CG23C henceforth31425-- 2017
Yamaha YZ 250 2T 1cil. CG23C 1SST Bastidores: CG23C henceforth33922-- 2018
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG12C 5NX2 Bastidores: CG12C henceforth00185-- 2002
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG13C 5UP2 Bastidores: CG13C henceforth00134-- 2003
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG17C 5XF2 Bastidores: CG17C henceforth00261-- 2004
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG20C 1P82 Bastidores: CG20C henceforth00297-- 2005
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P86 Bastidores: CG23C henceforth00236-- 2006
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8A Bastidores: CG23C henceforth06796-- 2007
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8E Bastidores: CG23C henceforth10798-- 2008
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8J Bastidores: CG23C henceforth13575-- 2009
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8N Bastidores: CG23C henceforth16856-- 2010
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG23C 1P8T Bastidores: CG23C henceforth18172-- 2011
Yamaha YZ 250 F 4T 1cil. CG33C 17DJ Bastidores: CG33C henceforth18258-- 2013
Yamaha YZ 250 F 4T 1cil. CG34C 1SM2 Bastidores: CG34C henceforth00064-- 2014
Yamaha YZ 250 F 4T 1cil. CG34C 1SM6 Bastidores: CG34C henceforth07681-- 2015
Yamaha YZ 250 F 4T 1cil. CG34C 1SMA Bastidores: CG34C henceforth15310-- 2016
Yamaha YZ 250 F 4T 1cil. CG39C 1SMJ Bastidores: CG39C henceforth00024-- 2017
Yamaha YZ 250 F 4T 1cil. CG39C 1SMN Bastidores: CG39C henceforth08344-- 2018
Yamaha YZ 250 F 4T 1cil. CG40C B7B2 Bastidores: CG40C henceforth00381-- 2019
Yamaha YZ 250 F 4T 1cil. CG40C B7B6 Bastidores: CG40C henceforth09230-- 2020
Yamaha YZ 250 F 4T 41,5 CV, 30,5 kw 1cil. CG10C 5SG2 Bastidores: CG10C henceforth08691-- 2002
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG14C 5UL2 Bastidores: CG14C henceforth00240-- 2003
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG18C 5XC2 Bastidores: CG18C henceforth00211-- 2004
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG21C 5XC6 Bastidores: CG21C henceforth00101-- 2005
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG25C 5XCA Bastidores: CG25C henceforth00175-- 2006
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG27C 5XCH Bastidores: CG27C henceforth00451-- 2007
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG27C 5XCM Bastidores: CG27C henceforth14791-- 2008
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG27C 5XCS Bastidores: CG27C henceforth30138-- 2009
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG33C 17D6 Bastidores: CG33C henceforth00135-- 2010
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG33C 17DA Bastidores: CG33C henceforth13297-- 2012
Yamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG33C 17DE Bastidores: CG33C henceforth06765-- 2011
Yamaha YZ 250 F 4T Anniversary 1cil. CG34C 1SMF Bastidores: CG34C henceforth15640-- 2016
Yamaha YZ 426 F 58 CV, 43 kw 1cil. CJ01C 5SF2 Bastidores: CJ01C henceforth23164-- 2002
Yamaha YZ 450 F 1cil. CJ15C 33D6 Bastidores: CJ15C henceforth07401-- 2011
Yamaha YZ 450 F 1cil. CJ15C 33DA Bastidores: CJ15C henceforth14898-- 2012
Yamaha YZ 450 F 1cil. CJ15C 33DE Bastidores: CJ15C henceforth19971-- 2013
Yamaha YZ 450 F 1cil. CJ18C 1SL2 Bastidores: CJ18C henceforth00045-- 2014
Yamaha YZ 450 F 1cil. CJ18C 1SL6 Bastidores: CJ18C henceforth07434-- 2015
Yamaha YZ 450 F 1cil. CJ21C B112 Bastidores: CJ21C henceforth00027-- 2016
Yamaha YZ 450 F 1cil. CJ21C B119 Bastidores: CJ21C henceforth06144-- 2017
Yamaha YZ 450 F 1cil. CJ22C BR92 Bastidores: CJ22C henceforth00322-- 2018
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ03C 5TA2 Bastidores: CJ03C henceforth00710-- 2003
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ05C 5XD2 Bastidores: CJ05C henceforth00112-- 2004
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ06C 5XD6 Bastidores: CJ06C henceforth00101-- 2005
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 2S22 Bastidores: CJ10C henceforth00201-- 2006
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 2S28 Bastidores: CJ10C henceforth13321-- 2007
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 2S2C Bastidores: CJ10C henceforth24715-- 2008
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ10C 34P2 Bastidores: CJ10C henceforth37372-- 2009
Yamaha YZ 450 F 60 CV, 44 kw 1cil. CJ15C 33D2 Bastidores: CJ15C henceforth00165-- 2010
Yamaha YZ 450 F Anniversary 1cil. CJ21C B116 Bastidores: CJ21C henceforth00317-- 2016
