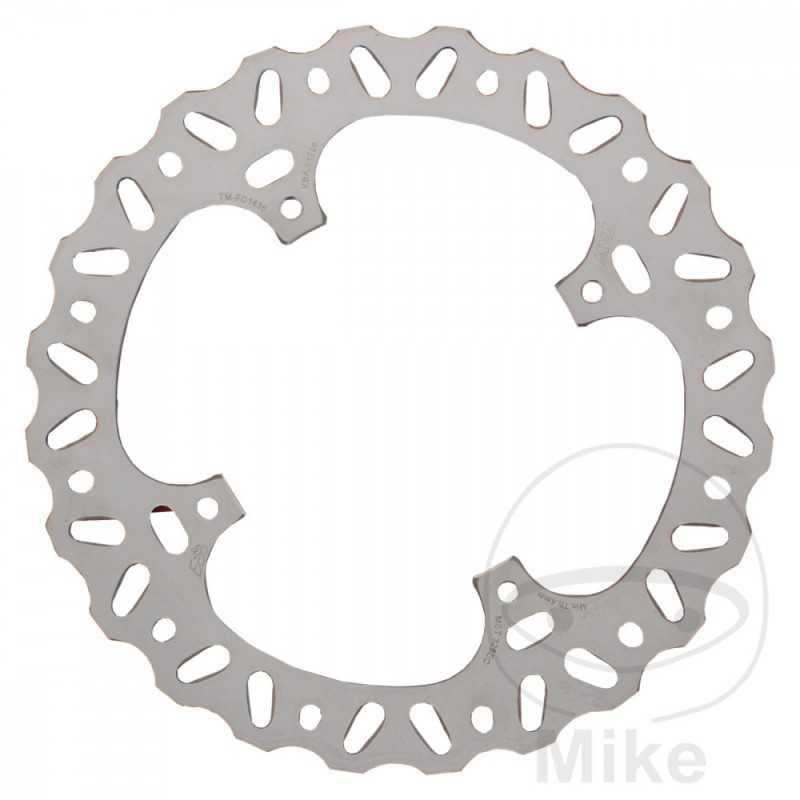

TRW Rigid brake disc for motorcycle OFFROAD 788.23.01

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

suitable for offroad

- Alloy steel hardened for long life.

- Can be combined with all off-road surface mixes

- Attractive design and high-quality workmanship.

- Perfect response, excellent dosage

- Extremely attractive price level
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 121MM
CIRCLE SIZE: 140 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HM-Moto CRE-F 250 X 1cil. F250XEC 4 Bastidores: ZENF250XEC0400001-ZENF250XEC0499999 2004
HM-Moto CRE-F 250 X 1cil. F250XEC 5 Bastidores: ZENF250XEC0500001-ZENF250XEC0599999 2005
HM-Moto CRE-F 250 X 1cil. F250XEC 6 Bastidores: ZENF250XEC0600001-ZENF250XEC0699999 2006
HM-Moto CRE-F 250 X 1cil. F250XEC 7 Bastidores: ZENF250XEC0700001-ZENF250XEC0799999 2007
HM-Moto CRE-F 250 X 1cil. F250XEC 8 Bastidores: ZENF250XEC0800001-- 2008
HM-Moto CRE-F 250 X 1cil. H250XEC 8 Bastidores: ZENH250XEC8800001-- 2008
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 8 Bastidores: ZENH250XEC8900001-ZENH250XEC8999999 2008
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9000001-- 2009
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9900001-- 2009
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC A Bastidores: ZENH250XEC9900001-- 2010
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC B Bastidores: ZENH250XEC1100001-- 2011-2013
HM-Moto CRE-F 250 X ie 1cil. F25XJEC 7 Bastidores: ZENF25XJEC0700001-ZENF25XJEC0799999 2007
HM-Moto CRE-F 250 X ie 1cil. F25XJEC 8 Bastidores: ZENF25XJEC8800001-- 2008
HM-Moto CRE-F 290 X ie 1cil. F29XJEC 7 Bastidores: ZENF29XJEC0700001-ZENF29XJEC0799999 2007
HM-Moto CRE-F 290 X ie 1cil. F29XJEC 8 Bastidores: ZENF29XJEC8800001-- 2008
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 8 Bastidores: ZENH290XEC8800001-ZENH290XEC8899999 2008
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC8900001-ZENH290XEC8999999 2009
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC9900001-- 2009-2010
HM-Moto CRE-F 450 R 1cil. F450C0PE 5 Bastidores: ZENF450C0PE500001-ZENF450C0PE599999 2005
HM-Moto CRE-F 450 R 1cil. F450C0PE 6 Bastidores: ZENF450C0PE600001-ZENF450C0PE699999 2006
HM-Moto CRE-F 450 R 1cil. F450C0PE 7 Bastidores: ZENF450C0PE700001-- 2007
HM-Moto CRE-F 450 R 1cil. F450RMC 8 Bastidores: ZENF450RMC0800001-- 2008
HM-Moto CRE-F 450 R 1cil. F450RMC 8 Bastidores: ZENH450RMC8800001-- 2008
HM-Moto CRE-F 450 X 1cil. F450XEC 5 Bastidores: ZENF450XEC0500001-ZENF450XEC0599999 2005
HM-Moto CRE-F 450 X 1cil. F450XEC 6 Bastidores: ZENF450XEC0600001-ZENF450XEC0699999 2006
HM-Moto CRE-F 450 X 1cil. F450XEC 7 Bastidores: ZENF450XEC0700001-- 2007
HM-Moto CRE-F 450 X 1cil. F450XEC 8 Bastidores: ZENF450XEC0800001-- 2008
HM-Moto CRE-F 450 X 1cil. H450XEC 8 Bastidores: ZENH450XEC8800001-- 2008
HM-Moto CRE-F 450 X 1cil. H450XEC 9 Bastidores: ZENH450XEC8900001-- 2009
HM-Moto CRE-F 450 X 1cil. H450XEC 9 Bastidores: ZENH450XEC9900001-- 2009
HM-Moto CRE-F 450 X ie 1cil. F45XJEC 7 Bastidores: ZENF45XJEC0700001-ZENF45XJEC0799999 2007
HM-Moto CRE-F 450 X ie 1cil. F45XJEC 8 Bastidores: ZENF49XJEC8800001-- 2008
HM-Moto CRE-F 490 X ie 53 CV, 39 kw 1cil. F49XJEC 7 Bastidores: ZENF49XJEC0700001-ZENF49XJEC0799999 2007
HM-Moto CRE-F 490 X ie 53 CV, 39 kw 1cil. F49XJEC 8 Bastidores: ZENF49XJEC8800001-- 2008
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 8 Bastidores: ZENH490XEC8800001-ZENH490XEC8899999 2008
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 9 Bastidores: ZENH490XEC8900001-- 2009
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 9 Bastidores: ZENH490XEC9900001-- 2009
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC A Bastidores: ZENH490XEC9000001-- 2010
HM-Moto CRM-F 450 X 1cil. F450XMC 7 Bastidores: ZENF450XMC0700001-- 2007
HM-Moto CRM-F 450 X 1cil. F450XMC 8 Bastidores: ZENF450XMC0800001-- 2008
HM-Moto CRM-F 450 X 1cil. H450XMC 8 Bastidores: ZENH450XMC8800001-- 2008
HM-Moto CRM-F 450 X 45 CV, 33,2 kw 1cil. H450XMC 9 Bastidores: ZENH450XMC8900001-- 2009
HM-Moto CRM-F 450 X 45 CV, 33,2 kw 1cil. H450XMC 9 Bastidores: ZENH450XMC9900001-- 2009
HM-Moto CRM-F 490 X ie 53 CV, 39 kw 1cil. F49XJMC 7 Bastidores: ZENF49XJMC0700001-ZENF49XJMC0799999 2007
HM-Moto CRM-F 490 X ie 53 CV, 39 kw 1cil. F49XJMC 8 Bastidores: ZENFJ49XJMC880001-- 2008
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 2 Bastidores: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 3 Bastidores: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 4 Bastidores: JH2 JE01A-4M800001-JH2 JE01A-4M899999 2004
Honda CR 125 R 42 CV, 31 kw 1cil. JE01A 5 Bastidores: JH2 JE01A-5M900001-JH2 JE01A-5M999999 2005
Honda CR 125 R 42 CV, 31 kw 1cil. JE01A 6 Bastidores: JH2 JE01A-6M000001-JH2 JE01A-6M099999 2006
Honda CR 125 R 42,6 CV, 31,3 kw 1cil. JE01A 7 Bastidores: JH2 JE01A-7M100001-- 2007
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A 2 Bastidores: JH2 ME03A-2M600001-JH2 ME03A-2M699999 2002
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 3 Bastidores: JH2 ME03A-3M700001-JH2 ME03A-3M799999 2003
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 4 Bastidores: JH2 ME03A-4M800001-JH2 ME03A-4M899999 2004
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 5 Bastidores: JH2 ME03A-5M900001-JH2 ME03A-5M999999 2005
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 6 Bastidores: JH2 ME03A-6M000001-JH2 ME03A-6M099999 2006
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 7 Bastidores: JH2 ME03A-7M100001-- 2007
Honda CRF 250 R 1cil. ME12A J Bastidores: JH2 ME12A-JK000001-JH2 ME12A-JK099999 2018
Honda CRF 250 R 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
Honda CRF 250 R 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
Honda CRF 250 R 1cil. ME12A N Bastidores: JH2 ME12A-NK300001-JH2 ME12A-NK399999 2022
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A D Bastidores: JH2 ME10A-DK900001-- 2013
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A E Bastidores: JH2 ME10A-EK100001-JH2 ME10A-EK199999 2014
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A F Bastidores: JH2 ME10A-FK200001-JH2 ME10A-FK299999 2015
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A G Bastidores: JH2 ME10A-GK300001-JH2 ME10A-GK399999 2016
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A H Bastidores: JH2 ME10A-HK400001-- 2017
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4K010001-JH2 ME10A-4K099999 2004
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4M000001-JH2 ME10A-4M009999 2004
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5K110001-JH2 ME10A-5K149999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M100001-JH2 ME10A-5M109999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M150001-JH2 ME10A-5M199999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6K210001-JH2 ME10A-6K219999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M200001-JH2 ME10A-6M209999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M230001-JH2 ME10A-6M239999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7K310001-JH2 ME10A-7K319999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M300001-JH2 ME10A-7M309999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M330001-JH2 ME10A-7M339999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8K410001-JH2 ME10A-8K419999 2008
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8M400001-JH2 ME10A-8M409999 2008
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A 9 Bastidores: JH2 ME10A-9K500001-- 2009
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A B Bastidores: JH2 ME10A-BK700001-JH2 ME10A-BK799999 2011
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A C Bastidores: JH2 ME10A-CK800001-JH2 ME10A-CK899999 2012
Honda CRF 250 R 44 CV, 32,4 kw 1cil. ME10A A Bastidores: JH2 ME10A-AK600001-JH2 ME10A-AK699999 2010
Honda CRF 250 R Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 250 RX 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
Honda CRF 250 RX 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
Honda CRF 250 RX 1cil. ME12A N Bastidores: JH2 ME12A-NK300001-JH2 ME12A-NK399999 2022
Honda CRF 250 RX Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 250 RX Red Moto Special 1cil. - Bastidores: --- 2021-2022
Honda CRF 250 X 1cil. ME11A 9 Bastidores: JH2 ME11A-9K500001-JH2 ME11A-9K509999 2009-2010
Honda CRF 250 X 1cil. ME11A B Bastidores: JH2 ME11A-BK600001-JH2 ME11A-BK699999 2011
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 4 Bastidores: JH2 ME11A-4K000001-JH2 ME11A-4K099999 2004
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 5 Bastidores: JH2 ME11A-5K110001-JH2 ME11A-5K199999 2005
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6K210001-JH2 ME11A-6K219999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6M200001-JH2 ME11A-6M209999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6M220001-JH2 ME11A-6M229999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7K310001-JH2 ME11A-7K319999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7M300001-JH2 ME11A-7M309999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7M320001-JH2 ME11A-7M329999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 8 Bastidores: JH2 ME11A-8K410001-JH2 ME11A-8K419999 2008
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 8 Bastidores: JH2 ME11A-8M400001-JH2 ME11A-8M409999 2008
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A C Bastidores: JH2 ME11A-CK700001-- 2012
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A D Bastidores: JH2 ME11A-DK800001-- 2013-2019
Honda CRF 450 L 25 CV, 18,4 kw 1cil. PD11A K Bastidores: JH2 PD11A-KK000001-JH2 PD11A-KK999999 2019
Honda CRF 450 L 25 CV, 18,4 kw 1cil. PD11A L Bastidores: JH2 PD11A-LK100001-- 2020-2021
Honda CRF 450 R 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 R 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 R 1cil. PE07A K Bastidores: JH2 PE07A-KK200001-JH2 PE07A-KK299999 2019
Honda CRF 450 R 1cil. PE07A L Bastidores: JH2 PE07A-LK300001-- 2020
Honda CRF 450 R 1cil. PE07A M Bastidores: JH2 PE07A-MK400001-JH2 PE07A-MK499999 2021
Honda CRF 450 R 1cil. PE07A N Bastidores: JH2 PE07A-NK500001-JH2 PE07A-NK599999 2022
Honda CRF 450 R 52,1 CV, 38,3 kw 1cil. PE05A D Bastidores: JH2 PE05A-DK200001-JH2 PE05A-DK299999 2013
Honda CRF 450 R 52,1 CV, 38,3 kw 1cil. PE05A E Bastidores: JH2 PE05A-EK300001-JH2 PE05A-EK399999 2014
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 7 Bastidores: JH2 PE05A-7M500001-JH2 PE05A-7M509999 2007
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 8 Bastidores: JH2 PE05A-8M600001-- 2008
Honda CRF 450 R 53,7 CV, 39,5 kw 1cil. PE05A F Bastidores: JH2 PE05A-FK400001-JH2 PE05A-FK499999 2015
Honda CRF 450 R 53,7 CV, 39,5 kw 1cil. PE05A G Bastidores: JH2 PE05A-GK500001-- 2016
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 2 Bastidores: JH2 PE05A-2M000001-JH2 PE05A-2M099999 2002
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 3 Bastidores: JH2 PE05A-3M100001-JH2 PE05A-3M199999 2003
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 4 Bastidores: JH2 PE05A-4M200001-JH2 PE05A-4M209999 2004
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 5 Bastidores: JH2 PE05A-5M300001-JH2 PE05A-5M309999 2005
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 6 Bastidores: JH2 PE05A-6M400001-JH2 PE05A-6M409999 2006
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A 9 Bastidores: JH2 PE05A-9K700001-JH2 PE05A-9K799999 2009
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A A Bastidores: JH2 PE05A-AK800001-JH2 PE05A-AK899999 2010
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A B Bastidores: JH2 PE05A-BK900001-JH2 PE05A-BK999999 2011
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A C Bastidores: JH2 PE05A-CK100001-- 2012
Honda CRF 450 R Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 450 RX 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 RX 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 RX 1cil. PE07A K Bastidores: JH2 PE07A-KK200001-JH2 PE07A-KK299999 2019
Honda CRF 450 RX 1cil. PE07A L Bastidores: JH2 PE07A-LK300001-- 2020
Honda CRF 450 RX 1cil. PE07A M Bastidores: JH2 PE07A-MK400001-JH2 PE07A-MK499999 2021
Honda CRF 450 RX 1cil. PE07A N Bastidores: JH2 PE07A-NK500001-JH2 PE07A-NK599999 2022
Honda CRF 450 RX Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 450 RX Red Moto Special 1cil. - Bastidores: --- 2021-2022
Honda CRF 450 RX Red Moto Supermoto 1cil. - Bastidores: --- 2020-2022
Honda CRF 450 X 1cil. PE06A 9 Bastidores: JH2 PE06A-9K400001-JH2 PE06A-9K499999 2009-2010
Honda CRF 450 X 1cil. PE06A B Bastidores: JH2 PE06A-BK500001-JH2 PE06A-BK599999 2011
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A C Bastidores: JH2 PE06A-CK600001-JH2 PE06A-CK699999 2012
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A D Bastidores: JH2 PE06A-DK700001-- 2013
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A E Bastidores: JH2 PE06A-EK800001-- 2014-2018
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 5 Bastidores: JH2 PE06A-5K000001-JH2 PE06A-5K099999 2005
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 6 Bastidores: JH2 PE06A-6K100001-JH2 PE06A-6K199999 2006
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 7 Bastidores: JH2 PE06A-7K200001-JH2 PE06A-7K299999 2007
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 8 Bastidores: JH2 PE06A-8K300001-JH2 PE06A-8K399999 2008
Honda CRF 450 XR Red Moto Dual 1cil. - Bastidores: --- 2020-2021
Honda CRF 450 XR Red Moto Supermoto 1cil. - Bastidores: --- 2020-2021
