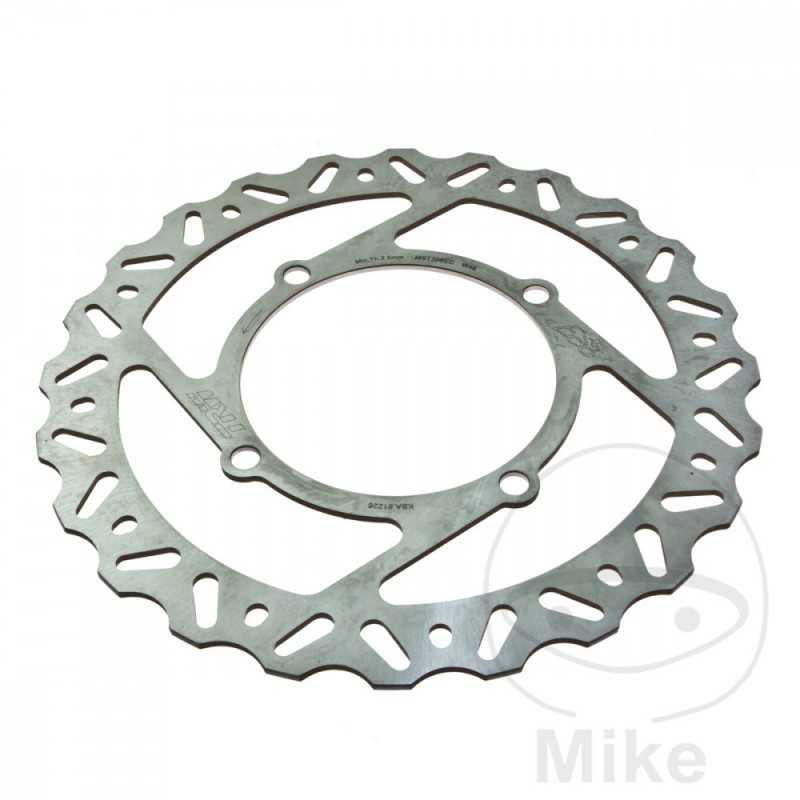

TRW Rigid brake disc for motorcycle OFFROAD 788.22.69
€59.58
€67.07
Save 11.17%Tax included
All brake discs have an ABE, also for scooters.
Discs are low wear and have 30% longer life compared to some comparable replacement parts.
All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.
The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.
Uniform temperature build-up and release allows for a consistent pressure point.
A new special alloy prevents excessive corrosion.
Laser technology allows for a lightweight construction with fine contours.
Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.
suitable for offroad
- Alloy steel hardened for long life.
- Can be combined with all off-road surface mixes
- Attractive design and high-quality workmanship.
- Perfect response, excellent dosage
- Extremely attractive price level
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 109MM
CIRCLE SIZE: 126 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 9.3 MM
thickness: 3mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KLX 450 R 1cil. LX450AAA A8F Bastidores: LX450AAA henceforth00001-LX450AAA henceforth10000 2007-2008
Kawasaki KLX 450 R 1cil. LX450AAA A9F Bastidores: LX450AAA henceforth10001-LX450AAA henceforth13000 2009
Kawasaki KLX 450 R 1cil. LX450AAA AAF Bastidores: LX450AAA henceforth13001-LX450AAA henceforth15000 2010
Kawasaki KLX 450 R 1cil. LX450AAA ABF Bastidores: LX450AAA henceforth15001-LX450AAA henceforth18000 2011
Kawasaki KLX 450 R 1cil. LX450AAA ACF Bastidores: LX450AAA henceforth18001-LX450AAA-999999 2012
Kawasaki KLX 450 R 1cil. LX450AAA ADF Bastidores: LX450AAA henceforth20001-LX450AAA henceforth22000 2013
Kawasaki KLX 450 R 1cil. LX450AAA AEF Bastidores: LX450AAA henceforth22001-LX450AAA henceforth24000 2014
Kawasaki KLX 450 R 1cil. LX450AAA AFF Bastidores: LX450AAA henceforth24001-LX450AAA henceforth26000 2015
Kawasaki KLX 450 R 1cil. LX450AAA AGF Bastidores: LX450AAA henceforth26001-LX450AAA henceforth28000 2016
Kawasaki KLX 450 R 1cil. LX450AAA AHF Bastidores: LX450AAA henceforth28001-LX450AAA-999999 2017
Kawasaki KLX 450 R 1cil. LX450AAA AJF Bastidores: LX450AAA henceforth30001-LX450AAA henceforth32000 2018
Kawasaki KLX 450 R 1cil. LX450AAA AKF Bastidores: LX450AAA henceforth32001-LX450AAA henceforth34000 2019
Kawasaki KLX 450 R 1cil. LX450AAA ALF Bastidores: LX450AAA henceforth34001-LX450AAA-999999 2020
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 6F Bastidores: KX125MMA henceforth21001-KX125MMA henceforth25000 2006
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 7F Bastidores: KX125MMA henceforth25001-KX125MMA henceforth27000 2007
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 8F Bastidores: KX125MMA henceforth27001-KX125MMA-999999 2008
Kawasaki KX 250 F 4T 1cil. KX250ZZA ZDF Bastidores: KX250ZZA henceforth00001-KX250ZZA henceforth13000 2013
Kawasaki KX 250 F 4T 1cil. KX250ZZA ZEF Bastidores: KX250ZZA henceforth13001-KX250ZZA henceforth25000 2014
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T6F Bastidores: KX250TTA henceforth00001-KX250TTA henceforth11000 2006
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T7F Bastidores: KX250TTA henceforth11001-KX250TTA henceforth26000 2007
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T8F Bastidores: KX250TTA henceforth26001-- 2008
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250WWA W9F Bastidores: KX250WWA henceforth0001-- 2009
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250XXA XAF Bastidores: KX250XXA henceforth00001-- 2010
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250YYA YBF Bastidores: KX250YYA henceforth00001-KX250YYA henceforth13000 2011
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250YYA YCF Bastidores: KX250YYA henceforth13001-- 2012
Kawasaki KX 250 R 2T 58,2 CV, 42,8 kw 1cil. KX250RRA 6F Bastidores: KX250RRA henceforth06001-KX250RRA henceforth1000 2006
Kawasaki KX 250 R 2T 58,2 CV, 42,8 kw 1cil. KX250RRA 7F Bastidores: KX250RRA henceforth10001-KX250RRA henceforth13000 2007
Kawasaki KX 250 R 2T 58,2 CV, 42,8 kw 1cil. KX250RRA 8F Bastidores: KX250RRA henceforth13001-KX250RRA-999999 2008
Kawasaki KX 450 F 1cil. KX450DDA D8F Bastidores: KX450DDA henceforth21001-KX450DDA-999999 2008
Kawasaki KX 450 F 1cil. KX450EEA E9F Bastidores: KX450EEA henceforth00001-KX450EEA henceforth11000 2009
Kawasaki KX 450 F 1cil. KX450EEA EAF Bastidores: KX450EEA henceforth11001-KX450EEA-999999 2010
Kawasaki KX 450 F 1cil. KX450EEA EBF Bastidores: KX450EEA henceforth18001-KX450EEA-999999 2011
Kawasaki KX 450 F 1cil. KX450FFA FDF Bastidores: KX450FFA henceforth12001-KX450FFA henceforth22000 2013
Kawasaki KX 450 F 1cil. KX450FFA FEF Bastidores: KX450FFA henceforth22001-KX450FFA-999999 2014
Kawasaki KX 450 F 56,4 CV, 41,5 kw 1cil. KX450DDA D6F Bastidores: KX450DDA henceforth00001-KX450DDA henceforth12000 2006
Kawasaki KX 450 F 56,4 CV, 41,5 kw 1cil. KX450DDA D7F Bastidores: KX450DDA henceforth12001-KX450DDA henceforth21000 2007
Kawasaki KX 450 F 58,5 CV, 43 kw 1cil. KX450FFA FCF Bastidores: KX450FFA henceforth00001-KX450FFA-999999 2012
Discs are low wear and have 30% longer life compared to some comparable replacement parts.
All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.
The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.
Uniform temperature build-up and release allows for a consistent pressure point.
A new special alloy prevents excessive corrosion.
Laser technology allows for a lightweight construction with fine contours.
Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.
suitable for offroad
- Alloy steel hardened for long life.
- Can be combined with all off-road surface mixes
- Attractive design and high-quality workmanship.
- Perfect response, excellent dosage
- Extremely attractive price level
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 109MM
CIRCLE SIZE: 126 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 9.3 MM
thickness: 3mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KLX 450 R 1cil. LX450AAA A8F Bastidores: LX450AAA henceforth00001-LX450AAA henceforth10000 2007-2008
Kawasaki KLX 450 R 1cil. LX450AAA A9F Bastidores: LX450AAA henceforth10001-LX450AAA henceforth13000 2009
Kawasaki KLX 450 R 1cil. LX450AAA AAF Bastidores: LX450AAA henceforth13001-LX450AAA henceforth15000 2010
Kawasaki KLX 450 R 1cil. LX450AAA ABF Bastidores: LX450AAA henceforth15001-LX450AAA henceforth18000 2011
Kawasaki KLX 450 R 1cil. LX450AAA ACF Bastidores: LX450AAA henceforth18001-LX450AAA-999999 2012
Kawasaki KLX 450 R 1cil. LX450AAA ADF Bastidores: LX450AAA henceforth20001-LX450AAA henceforth22000 2013
Kawasaki KLX 450 R 1cil. LX450AAA AEF Bastidores: LX450AAA henceforth22001-LX450AAA henceforth24000 2014
Kawasaki KLX 450 R 1cil. LX450AAA AFF Bastidores: LX450AAA henceforth24001-LX450AAA henceforth26000 2015
Kawasaki KLX 450 R 1cil. LX450AAA AGF Bastidores: LX450AAA henceforth26001-LX450AAA henceforth28000 2016
Kawasaki KLX 450 R 1cil. LX450AAA AHF Bastidores: LX450AAA henceforth28001-LX450AAA-999999 2017
Kawasaki KLX 450 R 1cil. LX450AAA AJF Bastidores: LX450AAA henceforth30001-LX450AAA henceforth32000 2018
Kawasaki KLX 450 R 1cil. LX450AAA AKF Bastidores: LX450AAA henceforth32001-LX450AAA henceforth34000 2019
Kawasaki KLX 450 R 1cil. LX450AAA ALF Bastidores: LX450AAA henceforth34001-LX450AAA-999999 2020
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 6F Bastidores: KX125MMA henceforth21001-KX125MMA henceforth25000 2006
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 7F Bastidores: KX125MMA henceforth25001-KX125MMA henceforth27000 2007
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 8F Bastidores: KX125MMA henceforth27001-KX125MMA-999999 2008
Kawasaki KX 250 F 4T 1cil. KX250ZZA ZDF Bastidores: KX250ZZA henceforth00001-KX250ZZA henceforth13000 2013
Kawasaki KX 250 F 4T 1cil. KX250ZZA ZEF Bastidores: KX250ZZA henceforth13001-KX250ZZA henceforth25000 2014
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T6F Bastidores: KX250TTA henceforth00001-KX250TTA henceforth11000 2006
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T7F Bastidores: KX250TTA henceforth11001-KX250TTA henceforth26000 2007
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T8F Bastidores: KX250TTA henceforth26001-- 2008
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250WWA W9F Bastidores: KX250WWA henceforth0001-- 2009
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250XXA XAF Bastidores: KX250XXA henceforth00001-- 2010
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250YYA YBF Bastidores: KX250YYA henceforth00001-KX250YYA henceforth13000 2011
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250YYA YCF Bastidores: KX250YYA henceforth13001-- 2012
Kawasaki KX 250 R 2T 58,2 CV, 42,8 kw 1cil. KX250RRA 6F Bastidores: KX250RRA henceforth06001-KX250RRA henceforth1000 2006
Kawasaki KX 250 R 2T 58,2 CV, 42,8 kw 1cil. KX250RRA 7F Bastidores: KX250RRA henceforth10001-KX250RRA henceforth13000 2007
Kawasaki KX 250 R 2T 58,2 CV, 42,8 kw 1cil. KX250RRA 8F Bastidores: KX250RRA henceforth13001-KX250RRA-999999 2008
Kawasaki KX 450 F 1cil. KX450DDA D8F Bastidores: KX450DDA henceforth21001-KX450DDA-999999 2008
Kawasaki KX 450 F 1cil. KX450EEA E9F Bastidores: KX450EEA henceforth00001-KX450EEA henceforth11000 2009
Kawasaki KX 450 F 1cil. KX450EEA EAF Bastidores: KX450EEA henceforth11001-KX450EEA-999999 2010
Kawasaki KX 450 F 1cil. KX450EEA EBF Bastidores: KX450EEA henceforth18001-KX450EEA-999999 2011
Kawasaki KX 450 F 1cil. KX450FFA FDF Bastidores: KX450FFA henceforth12001-KX450FFA henceforth22000 2013
Kawasaki KX 450 F 1cil. KX450FFA FEF Bastidores: KX450FFA henceforth22001-KX450FFA-999999 2014
Kawasaki KX 450 F 56,4 CV, 41,5 kw 1cil. KX450DDA D6F Bastidores: KX450DDA henceforth00001-KX450DDA henceforth12000 2006
Kawasaki KX 450 F 56,4 CV, 41,5 kw 1cil. KX450DDA D7F Bastidores: KX450DDA henceforth12001-KX450DDA henceforth21000 2007
Kawasaki KX 450 F 58,5 CV, 43 kw 1cil. KX450FFA FCF Bastidores: KX450FFA henceforth00001-KX450FFA-999999 2012
788.22.69
10 Items
Data sheet
- INSIDE DIAMETER
- 126MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 4
- EXTERNAL DIAMETER
- 250 MM
- CIRCLE MEASUREMENT
- 126MM
- HOLE DIAMETER
- 9.3MM
- THICKNESS
- 3 MM
