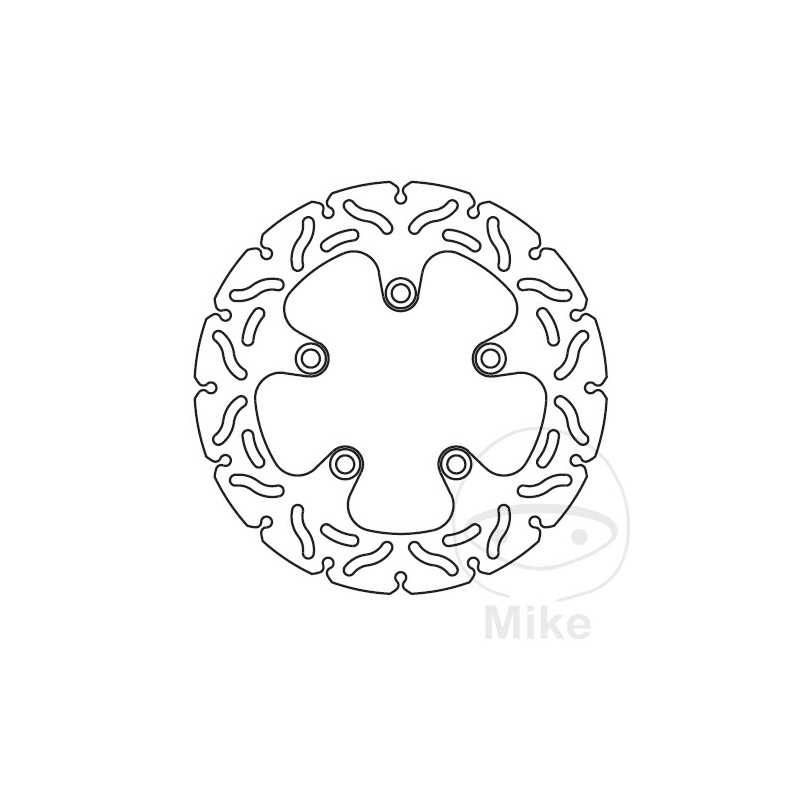

TRW Rigid brake disc for motorcycle RACING 788.20.04

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 107.5MM
CIRCLE SIZE: 130 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HUSQVARNA SVARTPILEN 701 75 CV, 55 KW 1CIL. - BASTIDORES: --- 2019-2022
HUSQVARNA VITPILEN 701 75/48 CV, 55/35 KW 1CIL. HQV701 BASTIDORES: --- 2018-2022
KTM DUKE 690 ABS 44 CV, 32 KW 1CIL. - BASTIDORES: --- 2016-2019
KTM DUKE 690 ABS 68/34 CV, 50/25 KW 1CIL. - BASTIDORES: --- 2012
KTM DUKE 690 ABS 68/44 CV, 50/32 KW 1CIL. - BASTIDORES: --- 2013-2015
KTM DUKE 690 ABS 73 CV, 54 KW 1CIL. - BASTIDORES: --- 2016-2019
KTM DUKE 690 III 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2008-2011
KTM DUKE 690 III 65 CV, 48 KW 1CIL. - BASTIDORES: --- 2008-2011
KTM DUKE 690 R 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2010-2012
KTM DUKE 690 R 70 CV, 51,5 KW 1CIL. - BASTIDORES: --- 2010-2012
KTM DUKE 690 R ABS 44 CV, 32 KW 1CIL. - BASTIDORES: --- 2013-2017
KTM DUKE 690 R ABS 70 CV, 51,5 KW 1CIL. - BASTIDORES: --- 2013-2015
KTM DUKE 690 R ABS 75 CV, 55 KW 1CIL. - BASTIDORES: --- 2016-2017
KTM DUKE 790 ABS 105 CV, 77 KW 2CIL. - BASTIDORES: --- 2018-2020
KTM DUKE 790 L ABS 48 CV, 35 KW 2CIL. - BASTIDORES: --- 2018-2020
KTM DUKE 790 L ABS A2 95 CV, 70 KW 2CIL. - BASTIDORES: --- 2018-2020
KTM SUPER DUKE 990 LC8 120 CV, 88 KW 2CIL. - BASTIDORES: --- 2005-2011
KTM SUPER DUKE 990 LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2005-2006
KTM SUPER DUKE 990 R LC8 120 CV, 88 KW 2CIL. - BASTIDORES: --- 2007
KTM SUPER DUKE 990 R LC8 125 CV, 92 KW 2CIL. - BASTIDORES: --- 2012-2013
KTM SUPER DUKE 990 R LC8 132 CV, 97 KW 2CIL. - BASTIDORES: --- 2008-2011
KTM SUPERMOTO 690 LC4 PRESTIGE 34 CV, 25 KW 1CIL. - BASTIDORES: --- 2007
KTM SUPERMOTO 690 LC4 PRESTIGE 64 CV, 47 KW 1CIL. - BASTIDORES: --- 2007
KTM SUPERMOTO 950 LC8 34 CV, 25 KW 2CIL. - BASTIDORES: --- 2006-2008
KTM SUPERMOTO 950 LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2006-2008
KTM SUPERMOTO 950 R LC8 34 CV, 25 KW 2CIL. - BASTIDORES: --- 2007-2008
KTM SUPERMOTO 950 R LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2007-2008
KTM SUPERMOTO 990 LC8 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2009-2010
KTM SUPERMOTO 990 LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2009-2010
KTM SUPERMOTO 990 R LC8 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2009-2011
KTM SUPERMOTO 990 R LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2009-2011
KTM SUPERMOTO 990 R LC8 ABS 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2012-2013
KTM SUPERMOTO 990 R LC8 ABS 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2012-2013
KTM SUPERMOTO 990 T LC8 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2009-2011
KTM SUPERMOTO 990 T LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2009-2011
KTM SUPERMOTO 990 T LC8 ABS 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2011-2013
KTM SUPERMOTO 990 T LC8 ABS 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2011-2013
