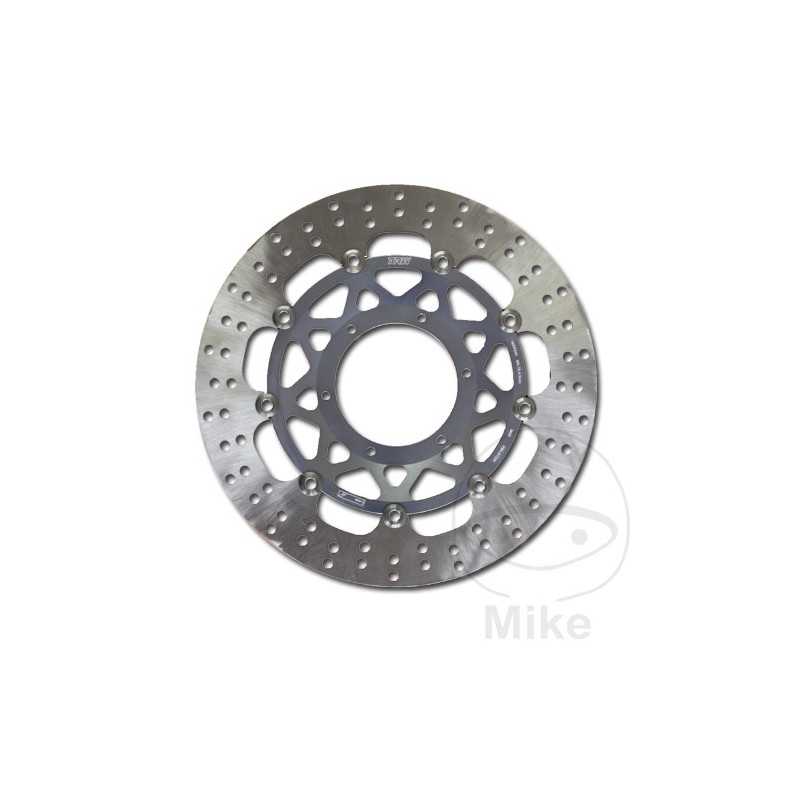

TRW floating brake disc for motorcycle 788.19.64

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 94MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
FILLING: 12.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A 9 BASTIDORES: ZDC SC60A henceforth9F000001-ZDC SC60A henceforth9F029999 2008-2009
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A A BASTIDORES: ZDC SC60A henceforthAF030001-ZDC SC60A henceforthAF049999 2010
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A B BASTIDORES: ZDC SC60A henceforthBF050001-ZDC SC60A henceforthBF059999 2011
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A C BASTIDORES: ZDC SC60A henceforthCF065001-- 2012
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A D BASTIDORES: ZDC SC60A henceforthDF075001-ZDC SC60A henceforthDF079999 2013
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A E BASTIDORES: ZDC SC60A henceforthEF085001-ZDC SC60A henceforthEF089999 2014
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A F BASTIDORES: ZDC SC60A henceforthEF085001-- 2015-2016
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C 9 BASTIDORES: ZDC SC60C henceforth9F000001-ZDC SC60C 09F029999 2008-2009
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C A BASTIDORES: ZDC SC60C henceforthAF030001-ZDC SC60C henceforthAF049999 2010
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C B BASTIDORES: ZDC SC60C henceforthBF050001-ZDC SC60C henceforthBF059999 2011
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C C BASTIDORES: ZDC SC60C henceforthCF065001-- 2012
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C D BASTIDORES: ZDC SC60C henceforthDF075001-ZDC SC60C henceforthDF079999 2013
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C E BASTIDORES: ZDC SC60C henceforthEF085001-ZDC SC60C henceforthEF089999 2014
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C F BASTIDORES: ZDC SC60C henceforthFF090001-- 2015-2016
HONDA CB 1300 A SUPER FOUR ABS 114 CV, 84 KW 4CIL. SC54C 8 BASTIDORES: JH2 SC54C-8M400001-JH2 SC54C-8M409999 2008
HONDA CB 1300 A SUPER FOUR ABS 114 CV, 84 KW 4CIL. SC54C 9 BASTIDORES: JH2 SC54C-9K500001-- 2009
HONDA CB 1300 A SUPER FOUR ABS 116 CV, 85 KW 4CIL. SC54C 5 BASTIDORES: JH2 SC54C-5M100001-- 2005-2006
HONDA CB 1300 A SUPER FOUR ABS 116 CV, 85 KW 4CIL. SC54C 7 BASTIDORES: JH2-SC54C-7M200001-- 2007
HONDA CB 1300 SA SUPER BOL`DOR ABS 114 CV, 84 KW 4CIL. SC54E 8 BASTIDORES: JH2 SC54E-8M400001-JH2 SC54E-8M409999 2008
HONDA CB 1300 SA SUPER BOL`DOR ABS 114 CV, 84 KW 4CIL. SC54E 9 BASTIDORES: JH2 SC54E-9K500001-- 2009
HONDA CB 1300 SA SUPER BOL`DOR ABS 114 CV, 84 KW 4CIL. SC54E A BASTIDORES: JH2 SC54E-AK600001-- 2010-2013
HONDA CB 1300 SA SUPER BOL`DOR ABS 116 CV, 85 KW 4CIL. SC54E 5 BASTIDORES: JH2 SC54E-5M100001-- 2005-2006
HONDA CB 1300 SA SUPER BOL`DOR ABS 116 CV, 85 KW 4CIL. SC54E 7 BASTIDORES: JH2 SC54E-7M200001-- 2007
HONDA CB 1300 SUPER FOUR 116 CV, 85 KW 4CIL. SC54A 5 BASTIDORES: JH2 SC54A-5M100001-- 2005
HONDA CBR 1000 RR FIREBLADE 171 CV, 126 KW 4CIL. SC57A 4 BASTIDORES: JH2 SC57A-4M000001-JH2 SC57A-4M099999 2004
HONDA CBR 1000 RR FIREBLADE 171 CV, 126 KW 4CIL. SC57A 5 BASTIDORES: JH2 SC57A-5M100001-JH2 SC57A-5M199999 2005
HONDA CBR 1000 RR FIREBLADE 171 CV, 126 KW 4CIL. SC57B 4 BASTIDORES: JH2 SC57B-4M000001-JH2 SC57B-4M099999 2004
HONDA CBR 1000 RR FIREBLADE 171 CV, 126 KW 4CIL. SC57B 5 BASTIDORES: JH2 SC57B-5M100001-JH2 SC57B-5M199999 2005
HONDA CBR 600 RR 114 CV, 84 KW 4CIL. PC37B 3 BASTIDORES: JH2 PC37B-3M000001-JH2 PC37B-3M099999 2003
HONDA CBR 600 RR 114 CV, 84 KW 4CIL. PC37B 4 BASTIDORES: JH2 PC37B-4M100001-JH2 PC37B-4M199999 2004
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37A 3 BASTIDORES: JH2 PC37A-3M000001-JH2 PC37A-3M099999 2003
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37A 4 BASTIDORES: JH2 PC37A-4M100001-JH2 PC37A-4M199999 2004
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37A 5 BASTIDORES: JH2 PC37A-5M200001-JH2 PC37A-5M299999 2005
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37B 5 BASTIDORES: JH2 PC37B-5M200001-JH2 PC37B-5M299999 2005
HONDA CBR 600 RR 117 CV, 86 KW 4CIL. PC37B 6 BASTIDORES: JH2 PC37B-6M300001-- 2006
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40A 7 BASTIDORES: JH2 PC40A-7M000001-JH2 PC40A-7M099999 2007
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40A 8 BASTIDORES: JH2 PC40A-8M100001-JH2 PC40A-8M109999 2008
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C 9 BASTIDORES: JH2 PC40C-9K200001-JH2 PC40C-9K299999 2009
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C A BASTIDORES: JH2 PC40C-AK300001-JH2 PC40C-AK399999 2010
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C B BASTIDORES: JH2 PC40C-BK400001-- 2011
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C C BASTIDORES: JH2 PC40C-CK500001-- 2012
HONDA CBR 600 RR 120 CV, 88 KW 4CIL. PC40C D BASTIDORES: JH2 PC40C-DK600001-JH2 PC40C-DK699999 2013-2016
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E 9 BASTIDORES: JH2 PC40E-9K200001-JH2 PC40E-9K201447 2009
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E A BASTIDORES: JH2 PC40E-AK300001-JH2 PC40E-AK399999 2010
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E B BASTIDORES: JH2 PC40E-BK400001-- 2011
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E C BASTIDORES: JH2 PC40E-CK500001-- 2012
HONDA CBR 600 RRA ABS 120 CV, 88 KW 4CIL. PC40E D BASTIDORES: JH2 PC40E-DK600001-JH2 PC40E-DK699999 2013-2016
