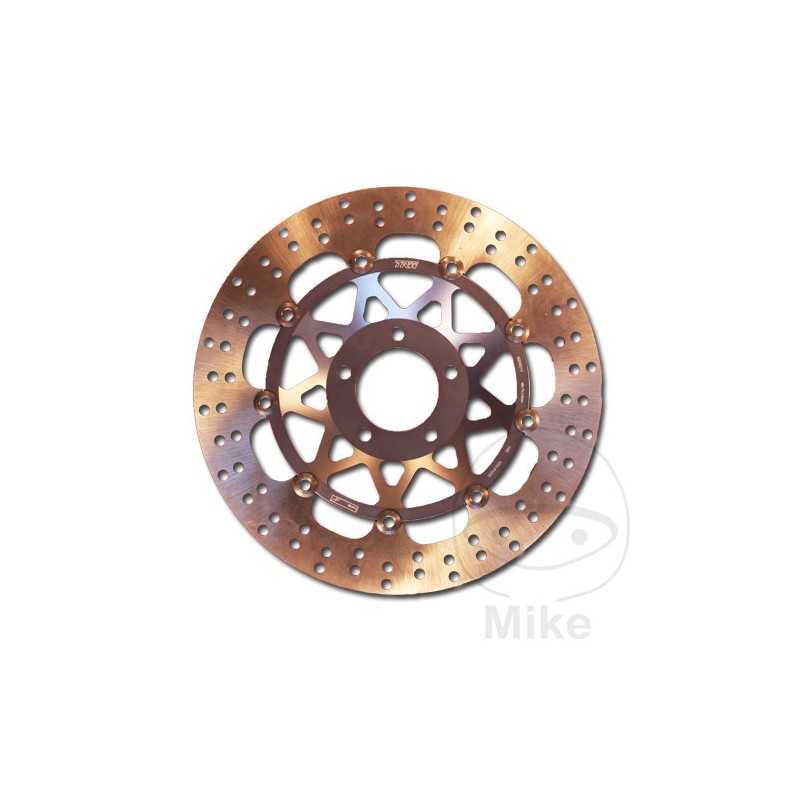

TRW floating brake disc for motorcycle 788.02.71

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 64MM
CIRCLE SIZE: 86 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
PADDING: 22.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C K BASTIDORES: GV73C-100001-GV73C-102566 1989
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C L BASTIDORES: GV73C-102567-GV73C-104826 1990
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C M BASTIDORES: GV73C-104827-GV73C-107721 1991
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GV73C N BASTIDORES: GV73C-107722-- 1992
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C P BASTIDORES: GU75C-100001-GU75C-103514 1993
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C R BASTIDORES: GU75C-103515-GU75C-104538 1994
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C S BASTIDORES: GU75C-104539-GU75C-105331 1995
SUZUKI GSX-R 1100 W 155/98 CV,114/72KW 4CIL. GU75C T BASTIDORES: GU75C-105332-- 1996-1997
SUZUKI GSX-R 750 100/108 CV, 74/79 KW 4CIL. GR7AB M BASTIDORES: GR7AB-100001-- 1991
SUZUKI GSX-R 750 100/110 CV, 74/81 KW 4CIL. GR7AB L BASTIDORES: GR7AB-100007-- 1990
SUZUKI GSX-R 750 100/112 CV, 74/82 KW 4CIL. GR77B J BASTIDORES: GR77B-100001-GR77B-105048 1988
SUZUKI GSX-R 750 100/112 CV, 74/82 KW 4CIL. GR77B K BASTIDORES: GR77B-105049-- 1989
SUZUKI GSX-R 750 W 100/112 CV, 74/82 KW 4CIL. GR7BB N BASTIDORES: GR7BB-100001-GR7BB-103704 1992
SUZUKI GSX-R 750 W 100/112 CV, 74/82 KW 4CIL. GR7BB P BASTIDORES: GR7BB-103705-GR7BB-106835 1993
SUZUKI GSX-R 750 W 98/118 CV, 72/86,8 KW 4CIL. GR7BB R BASTIDORES: GR7BB-106836-GR7BB-109339 1994
SUZUKI GSX-R 750 W 98/118 CV, 72/86,8 KW 4CIL. GR7BB S BASTIDORES: GR7BB-109340-- 1995
