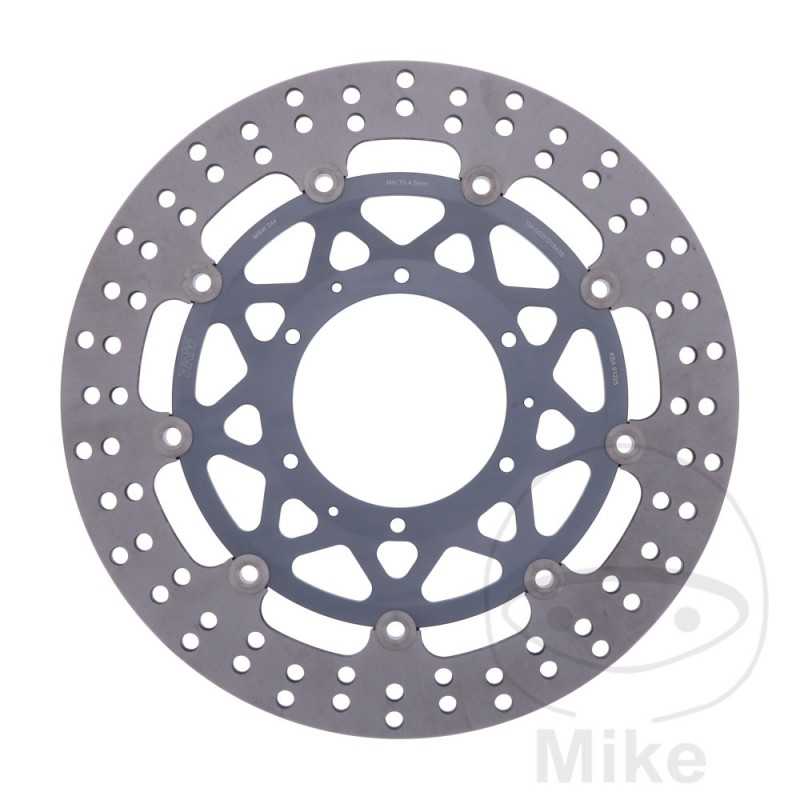

TRW floating brake disc for motorcycle 788.02.28

All brake discs have an ABE, also for scooters.



The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.



All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.



The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.



A uniform build-up and decrease in temperature allows for a constant pressure point.





A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.



Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc



- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 94MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
FILLING: 12.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 2 BASTIDORES: JH2 SC48B-2M000001-JH2 SC48B-2M099999 2002
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 3 BASTIDORES: JH2 SC48B-3M100001-JH2 SC48B-3M199999 2003
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 4 BASTIDORES: JH2 SC48B-4M200001-JH2 SC48B-4M299999 2004
HONDA CB 900 F HORNET 109 CV, 80 KW 4CIL. SC48B 5 BASTIDORES: JH2 SC48B-5M300001-JH2 SC48B-5M399999 2005-2006
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 1 BASTIDORES: JH2 PC35F-1M200001-JH2 PC35F-1M299999 2001
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 2 BASTIDORES: JH2 PC35F-2M300001-JH2 PC35F-2M399999 2002
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 3 BASTIDORES: JH2 PC35F-3M400001-JH2 PC35F-3M499999 2003
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 4 BASTIDORES: JH2 PC35F-4M500001-- 2004
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 5 BASTIDORES: JH2 PC35F-5M600001-JH2 PC35F-5M699999 2005
HONDA CBR 600 F 109 CV, 80 KW 4CIL. PC35F 6 BASTIDORES: JH2 PC35F-6M700001-- 2006-2007
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 1 BASTIDORES: JH2 PC35D-1M200001-JH2 PC35D-1M299999 2001
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 2 BASTIDORES: JH2 PC35D-2M300001-JH2 PC35D-2M399999 2002
HONDA CBR 600 F 34 CV, 25 KW 4CIL. PC35D 3 BASTIDORES: JH2 PC35D-3M400001-JH2 PC35D-3M499999 2003
HONDA CBR 600 FR ROSSI 109 CV, 80 KW 4CIL. PC35H 1 BASTIDORES: JH2 PC35H-1M250001-JH2 PC35H-1M299999 2001
HONDA CBR 600 FR ROSSI 109 CV, 80 KW 4CIL. PC35H 2 BASTIDORES: JH2 PC35H-2M310001-JH2 PC35H-2M319999 2002
HONDA CBR 600 FS SPORT 109 CV, 80 KW 4CIL. PC35H 1 BASTIDORES: JH2 PC35H-1M200001-JH2 PC35H-1M249999 2001
HONDA CBR 600 FS SPORT 109 CV, 80 KW 4CIL. PC35H 2 BASTIDORES: JH2 PC35H-2M300001-JH2 PC35H-2M309999 2002
HONDA VTX 1800 C 107/97 CV, 79/71 KW 2CIL. SC46A 2 BASTIDORES: 1HF SC46A-2A000001-1HF SC46A-2A099999 2001-2002
HONDA VTX 1800 C 107/97 CV, 79/71 KW 2CIL. SC46A 3 BASTIDORES: 1HF SC46A-3A100001-1HF SC46A-3A199999 2003
HONDA VTX 1800 C 107/97 CV, 79/71 KW 2CIL. SC46A 4 BASTIDORES: 1HF SC46A-4A200001-1HF SC46A-4A299999 2004
HONDA VTX 1800 C1 107/97 CV, 79/71 KW 2CIL. SC46A 5 BASTIDORES: 1HF SC46A-5A300001-1HF SC46A-5A399999 2005-2006
