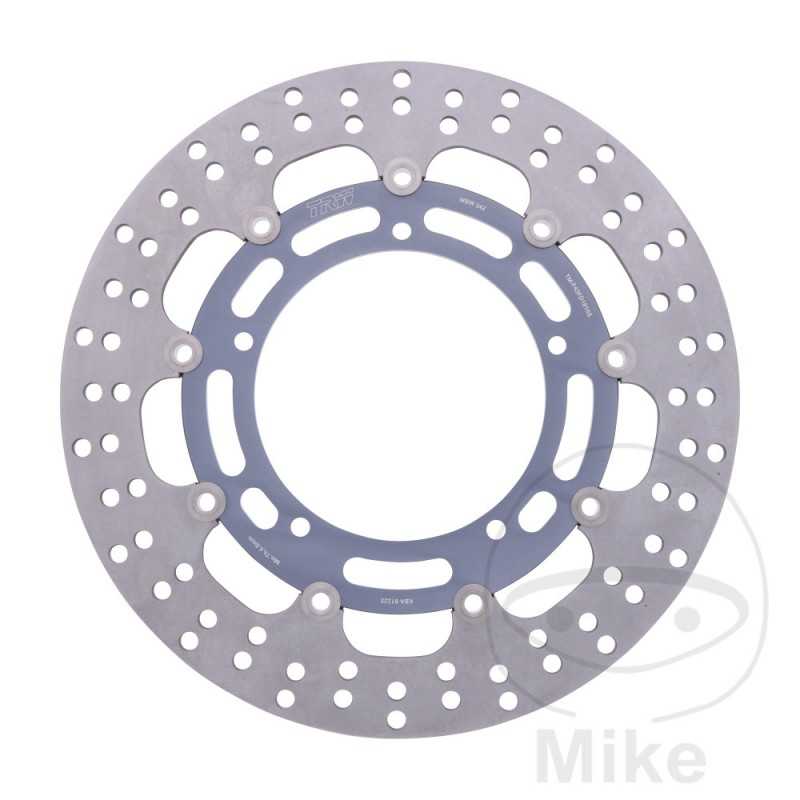

TRW floating brake disc for motorcycle 788.01.75

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

Floating brake discs have titanium anodized aluminum inner rings.

Floating windows don't rattle because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge.

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 132MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.3 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA FZ8 800 N 106 CV, 78 KW 4CIL. RN255 39P1 BASTIDORES: RN255 henceforth00461-- 2011
YAMAHA FZ8 800 N 106 CV, 78 KW 4CIL. RN255 39P6 BASTIDORES: RN255 henceforth10709-- 2012
YAMAHA FZ8 800 N 106 CV, 78 KW 4CIL. RN258 2SH4 BASTIDORES: RN258 henceforth02078-- 2014
YAMAHA FZ8 800 N 106 CV, 78 KW 4CIL. RN258 2SH7 BASTIDORES: RN258 henceforth02277-- 2015
YAMAHA FZ8 800 N 106 CV, 78 KW 4CIL. RN258 39PL BASTIDORES: RN258 henceforth00301-- 2013
YAMAHA FZ8 800 N 106 CV, 78 KW 4CIL. RN258 39PT BASTIDORES: RN258 henceforth00379-- 2013
YAMAHA FZ8 800 N ANNIVERSARY 106 CV, 78 KW 4CIL. RN255 39PB BASTIDORES: RN255 henceforth12002-- 2012
YAMAHA FZ8 800 NA ABS 106 CV, 78 KW 4CIL. RN256 59P1 BASTIDORES: RN256 henceforth00301-- 2011
YAMAHA FZ8 800 NA ABS 106 CV, 78 KW 4CIL. RN256 59P2 BASTIDORES: RN256 henceforth04091-- 2012
YAMAHA FZ8 800 NA ABS 106 CV, 78 KW 4CIL. RN259 59P5 BASTIDORES: RN259 henceforth00320-- 2013
YAMAHA FZ8 800 NA ABS 106 CV, 78 KW 4CIL. RN259 59P6 BASTIDORES: RN259 henceforth00301-- 2013
YAMAHA FZ8 800 NA ABS 106 CV, 78 KW 4CIL. RN259 59P8 BASTIDORES: RN259 henceforth01582-- 2014
YAMAHA FZ8 800 NA ABS 106 CV, 78 KW 4CIL. RN259 59P9 BASTIDORES: RN259 henceforth02142-- 2015-2016
YAMAHA FZ8 800 NA ANNIVERSARY ABS 106 CV, 78 KW 4CIL. RN256 59P3 BASTIDORES: RN256 henceforth04541-- 2012
YAMAHA FZ8 800 S FAZER 106 CV, 78 KW 4CIL. RN25F 42PA BASTIDORES: RN25F henceforth00301-- 2013
YAMAHA FZ8 800 S FAZER 106 CV, 78 KW 4CIL. RN25F 42PE BASTIDORES: RN25F henceforth00312-- 2013
YAMAHA FZ8 800 S FAZER 106 CV, 78 KW 4CIL. RN25F 42PG BASTIDORES: RN25F henceforth00559-- 2014
YAMAHA FZ8 800 S FAZER 106 CV, 78 KW 4CIL. RN25F 42PN BASTIDORES: RN25F henceforth00787-- 2015
YAMAHA FZ8 800 SA FAZER ABS 106 CV, 78 KW 4CIL. RN25G 1BD4 BASTIDORES: RN25G henceforth00301-- 2013
YAMAHA FZ8 800 SA FAZER ABS 106 CV, 78 KW 4CIL. RN25G 1BD6 BASTIDORES: RN25G henceforth00312-- 2013
YAMAHA FZ8 800 SA FAZER ABS 106 CV, 78 KW 4CIL. RN25G 1BD8 BASTIDORES: RN25G henceforth01233-- 2014
YAMAHA FZ8 800 SA FAZER ABS 106 CV, 78 KW 4CIL. RN25G 1BDA BASTIDORES: RN25G henceforth02045-- 2015-2016
YAMAHA XT 1200 ZA SUPER TENERE ABS 110 CV, 81 KW 2CIL. DP011 23P1 BASTIDORES: DP011 henceforth00301-- 2010
YAMAHA XT 1200 ZA SUPER TENERE ABS 110 CV, 81 KW 2CIL. DP011 23P8 BASTIDORES: DP011 henceforth04176-- 2011
YAMAHA XT 1200 ZA SUPER TENERE ABS 110 CV, 81 KW 2CIL. DP015 23PB BASTIDORES: DP015 henceforth00301-- 2012
YAMAHA XT 1200 ZA SUPER TENERE ABS 112 CV, 82 KW 2CIL. DP071 BP81 BASTIDORES: DP071 henceforth00301-- 2017-2018
YAMAHA XT 1200 ZA SUPER TENERE ABS 112 CV, 82 KW 2CIL. DP071 BP87 BASTIDORES: DP071 henceforth01854-- 2019-2021
YAMAHA XT 1200 ZA SUPER TENERE/WORLDCROSSER ABS 110 CV, 81 KW 2CIL. DP015 23PF BASTIDORES: DP015 henceforth02474-- 2013
YAMAHA XT 1200 ZA SUPER TENERE/WORLDCROSSER ABS 112 CV, 82 KW 2CIL. DP041 2BS9 BASTIDORES: DP041 henceforth01093-- 2015-2016
YAMAHA XT 1200 ZE A SUPER TENERE/RAID EDITION ABS 112 CV, 82 KW 2CIL. DP075 BP91 BASTIDORES: DP075 henceforth00301-- 2017-2018
YAMAHA XT 1200 ZE A SUPER TENERE/RAID EDITION ABS 112 CV, 82 KW 2CIL. DP075 BP97 BASTIDORES: DP075 henceforth02754-- 2019-2021
YAMAHA XT 1200 ZE A SUPER TENERE/WORLDCROSSER ABS 112 CV, 82 KW 2CIL. DP046 2KB9 BASTIDORES: DP046 henceforth01555-- 2015-2016
YAMAHA XT 1200 ZE A SUPER TENERE/WORLDCROSSER ABS 112 CV, 82 KW 2CIL. DP046 2KBD BASTIDORES: DP046 henceforth01583-- 2015-2016
YAMAHA YZF-R1 1000 180 CV, 132 KW 4CIL. RN191 4C81 BASTIDORES: RN191 henceforth00301-- 2007
YAMAHA YZF-R1 1000 180 CV, 132 KW 4CIL. RN191 4C88 BASTIDORES: RN191 henceforth13277-- 2008
YAMAHA YZF-R1 1000 182 CV, 134 KW 4CIL. RN221 14B1 BASTIDORES: RN221 henceforth00301-- 2009
YAMAHA YZF-R1 1000 182 CV, 134 KW 4CIL. RN221 14BC BASTIDORES: RN221 henceforth06659-- 2010
YAMAHA YZF-R1 1000 182 CV, 134 KW 4CIL. RN221 14BR BASTIDORES: RN221 henceforth09717-- 2011
YAMAHA YZF-R6 600 120 CV, 88 KW 4CIL. RJ095 5SLM BASTIDORES: RJ095 henceforth00301-- 2005
YAMAHA YZF-R6 600 120 CV, 88 KW 4CIL. RJ095 5SLV BASTIDORES: RJ095 henceforth05856-- 2005
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 13SL BASTIDORES: RJ155 henceforth00301-- 2010
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 13SV BASTIDORES: RJ155 henceforth02714-- 2011
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 1JSG BASTIDORES: RJ155 henceforth04386-- 2012
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 1JSU BASTIDORES: RJ155 henceforth05856-- 2013
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 2CX4 BASTIDORES: RJ155 henceforth07120-- 2014
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 2CXB BASTIDORES: RJ155 henceforth07100-- 2014
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 2CXE BASTIDORES: RJ155 henceforth08279-- 2015
YAMAHA YZF-R6 600 123,8 CV, 91 KW 4CIL. RJ155 2CXM BASTIDORES: RJ155 henceforth09069-- 2016-2017
YAMAHA YZF-R6 600 127 CV, 93 KW 4CIL. RJ111 2C01 BASTIDORES: RJ111 henceforth00301-- 2006
YAMAHA YZF-R6 600 129 CV, 95 KW 4CIL. RJ151 13S1 BASTIDORES: RJ151 henceforth00301-- 2008
YAMAHA YZF-R6 600 129 CV, 95 KW 4CIL. RJ151 13SB BASTIDORES: RJ151 henceforth13030-- 2009
YAMAHA YZF-R6 600 ANNIVERSARY 123,8 CV, 91 KW 4CIL. RJ155 1JSL BASTIDORES: RJ155 henceforth04983-- 2012-2013
