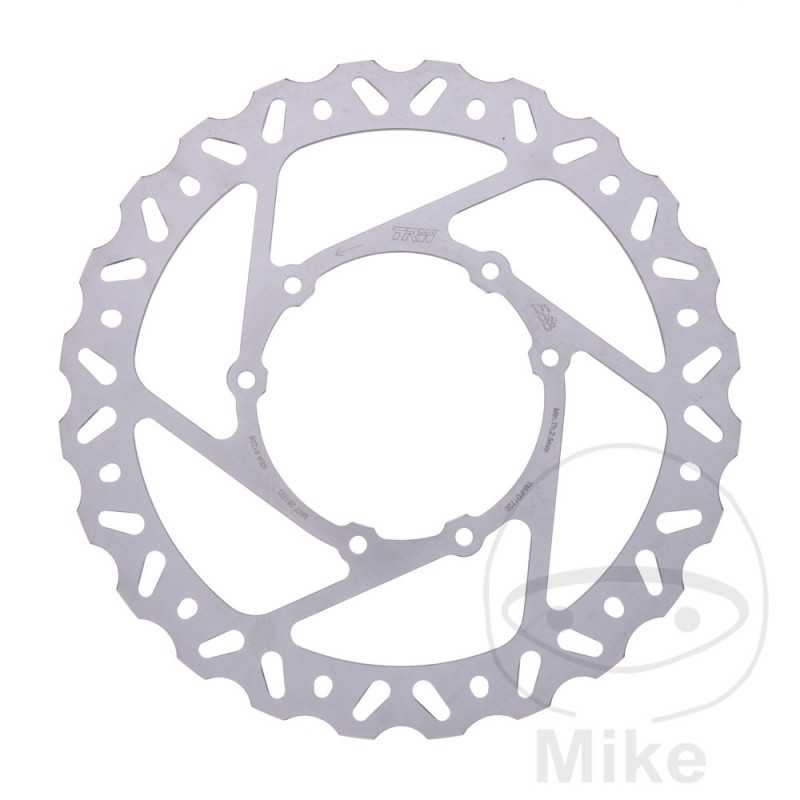

TRW Rigid brake disc for motorcycle OFFROAD 788.01.70

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

suitable for offroad

- Alloy steel hardened for long life.

- Can be combined with all off-road surface mixes.

- Attractive design and high-quality workmanship.

- Perfect response, excellent dosage.

- Extremely attractive price level.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 101.3MM
CIRCLE SIZE: 117 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 3mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CRF 250 R 1cil. ME12A J Bastidores: JH2 ME12A-JK000001-JH2 ME12A-JK099999 2018
Honda CRF 250 R 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
Honda CRF 250 R 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A F Bastidores: JH2 ME10A-FK200001-JH2 ME10A-FK299999 2015
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A G Bastidores: JH2 ME10A-GK300001-JH2 ME10A-GK399999 2016
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A H Bastidores: JH2 ME10A-HK400001-- 2017
Honda CRF 250 R Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 250 RX 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
Honda CRF 250 RX 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
Honda CRF 250 RX 1cil. ME12A N Bastidores: JH2 ME12A-NK300001-JH2 ME12A-NK399999 2022
Honda CRF 250 RX Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 250 RX Red Moto Special 1cil. - Bastidores: --- 2021-2022
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A D Bastidores: JH2 ME11A-DK800001-- 2013-2019
Honda CRF 250 XRL 29,4 CV, 21,6 kw 1cil. - Bastidores: --- 2016-2019
Honda CRF 450 L 25 CV, 18,4 kw 1cil. PD11A K Bastidores: JH2 PD11A-KK000001-JH2 PD11A-KK999999 2019
Honda CRF 450 L 25 CV, 18,4 kw 1cil. PD11A L Bastidores: JH2 PD11A-LK100001-- 2020-2021
Honda CRF 450 R 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 R 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 R 1cil. PE07A K Bastidores: JH2 PE07A-KK200001-JH2 PE07A-KK299999 2019
Honda CRF 450 R 1cil. PE07A L Bastidores: JH2 PE07A-LK300001-- 2020
Honda CRF 450 R 53,7 CV, 39,5 kw 1cil. PE05A F Bastidores: JH2 PE05A-FK400001-JH2 PE05A-FK499999 2015
Honda CRF 450 R 53,7 CV, 39,5 kw 1cil. PE05A G Bastidores: JH2 PE05A-GK500001-- 2016
Honda CRF 450 R Red Moto 1cil. - Bastidores: --- 2020-2022
Honda CRF 450 RE 53,7 CV, 39,5 kw 1cil. - Bastidores: --- 2016
Honda CRF 450 RX 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 RX 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 RX 1cil. PE07A K Bastidores: JH2 PE07A-KK200001-JH2 PE07A-KK299999 2019
Honda CRF 450 RX 1cil. PE07A L Bastidores: JH2 PE07A-LK300001-- 2020
Honda CRF 450 RX Red Moto 1cil. - Bastidores: --- 2020
Honda CRF 450 RX Red Moto Supermoto 1cil. - Bastidores: --- 2020
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A E Bastidores: JH2 PE06A-EK800001-- 2014-2018
Honda CRF 450 XR Red Moto Dual 1cil. - Bastidores: --- 2020-2021
Honda CRF 450 XR Red Moto Supermoto 1cil. - Bastidores: --- 2020-2021
