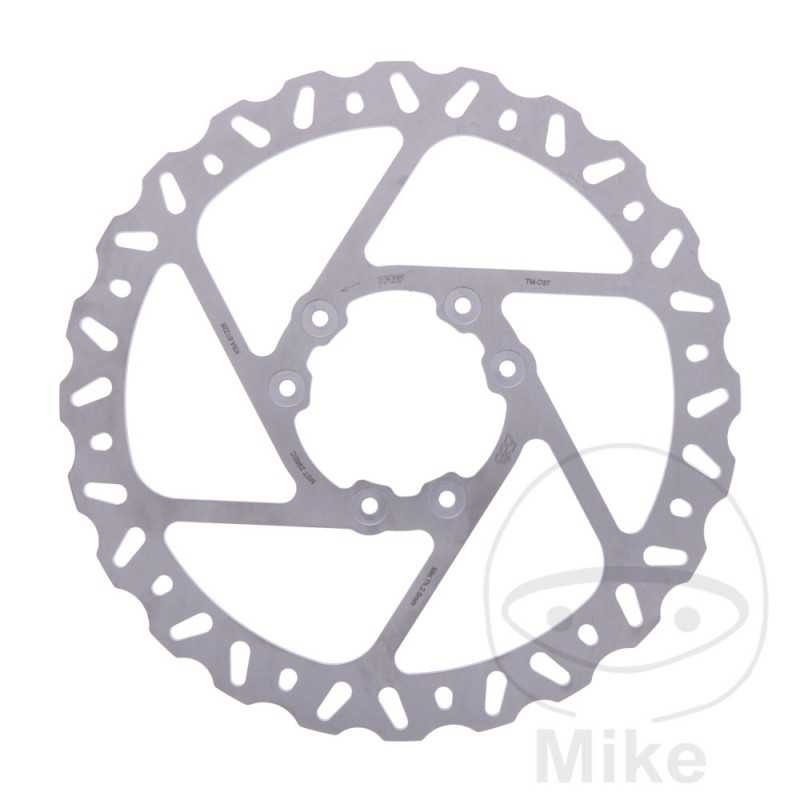

TRW Rigid brake disc for motorcycle OFFROAD 788.01.60

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

suitable for offroad

- Alloy steel hardened for long life.

- Can be combined with all off-road surface mixes.

- Attractive design and high-quality workmanship.

- Perfect response, excellent dosage.

- Extremely attractive price level.
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 70.5MM
CIRCLE SIZE: 89 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.1MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
TM Racing EN 125 1cil. - Bastidores: --- 2013-2013
TM Racing EN 125 1cil. - Bastidores: --- 2017-2017
TM Racing EN 125 34 CV, 25 kw 1cil. - Bastidores: --- 2010-2012
TM Racing EN 125 7,5 CV, 5,5 kw 1cil. - Bastidores: --- 2014-2016
TM Racing EN 144 1cil. - Bastidores: --- 2010-2013
TM Racing EN 144 1cil. - Bastidores: --- 2017-2017
TM Racing EN 144 9,5 CV, 7 kw 1cil. - Bastidores: --- 2014-2016
TM Racing EN 250 2T 1cil. - Bastidores: --- 2010-2013
TM Racing EN 250 2T 1cil. - Bastidores: --- 2017-2017
TM Racing EN 250 2T 11,6 CV, 8,5 kw 1cil. - Bastidores: --- 2014-2015
TM Racing EN 250 2T 12,2 CV, 9 kw 1cil. - Bastidores: --- 2016
TM Racing EN 250 Fi 4T 1cil. - Bastidores: --- 2010-2013
TM Racing EN 250 Fi 4T 1cil. - Bastidores: --- 2017-2017
TM Racing EN 250 Fi 4T 25,8 CV, 19 kw 1cil. - Bastidores: --- 2014-2016
TM Racing EN 300 2T 1cil. - Bastidores: --- 2010-2013
TM Racing EN 300 2T 1cil. - Bastidores: --- 2015-2017
TM Racing EN 300 2T 12,2 CV, 9 kw 1cil. - Bastidores: --- 2014
TM Racing EN 300 Fi 4T 1cil. - Bastidores: --- 2017
TM Racing EN 450 F 44 CV, 32 kw 1cil. - Bastidores: --- 2010
TM Racing EN 450 Fi 1cil. - Bastidores: --- 2013-2013
TM Racing EN 450 Fi 1cil. - Bastidores: --- 2017-2017
TM Racing EN 450 Fi 30 CV, 22 kw 1cil. - Bastidores: --- 2014-2016
TM Racing EN 450 Fi 44 CV, 32 kw 1cil. - Bastidores: --- 2011-2012
TM Racing EN 530 F 1cil. - Bastidores: --- 2010-2013
TM Racing EN 530 F 14,3 CV 10,5 kw 1cil. - Bastidores: --- 2014
TM Racing EN 530 Fi 1cil. - Bastidores: --- 2015-2015
TM Racing EN 530 Fi 1cil. - Bastidores: --- 2017-2017
TM Racing EN 530 Fi 34 CV, 25 kw 1cil. - Bastidores: --- 2016
TM Racing MX 125 1cil. - Bastidores: --- 2013-2017
TM Racing MX 125 40 CV, 29 kw 1cil. - Bastidores: --- 2010-2012
TM Racing MX 144 1cil. - Bastidores: --- 2010-2017
TM Racing MX 250 2T 1cil. - Bastidores: --- 2010-2017
TM Racing MX 250 Fi 4T 1cil. - Bastidores: --- 2010-2017
TM Racing MX 300 2T 1cil. - Bastidores: --- 2010-2017
TM Racing MX 300 Fi 4T 1cil. - Bastidores: --- 2017
TM Racing MX 450 F 1cil. - Bastidores: --- 2010
TM Racing MX 450 Fi 1cil. - Bastidores: --- 2011-2017
TM Racing MX 530 F 1cil. - Bastidores: --- 2010-2014
TM Racing MX 530 Fi 1cil. - Bastidores: --- 2015-2017
