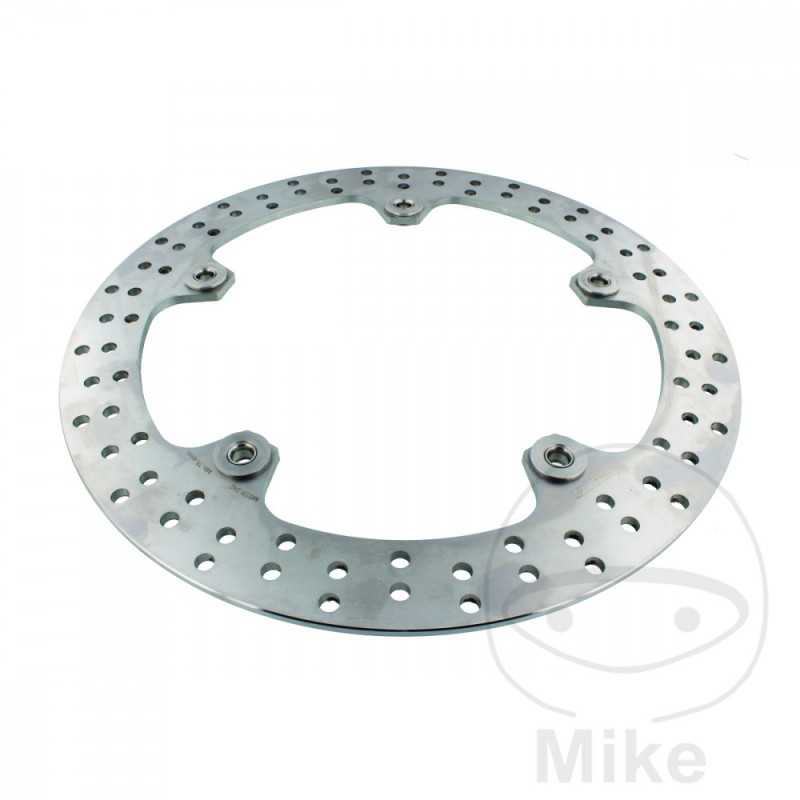

TRW Riveted rigid brake disc 788.01.48

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 305MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 750 850 GS ABS 48 CV, 35 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2018-2020
BMW F 750 850 GS ABS 77 CV, 57 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2018-2020
BMW F 750 850 GS ABS DTC 48 CV, 35 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2018-2020
BMW F 750 850 GS ABS DTC 77 CV, 57 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2018-2020
BMW F 750 850 GS ABS ESA 48 CV, 35 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2018-2020
BMW F 750 850 GS ABS ESA 77 CV, 57 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2018-2020
BMW F 750 850 GS EDITION 40 YEARS ABS DTC 48 CV, 35 KW 2CIL. K80 0B08 BASTIDORES: --- 2021
BMW F 750 850 GS EDITION 40 YEARS ABS DTC 77 CV, 57 KW 2CIL. K80 0B08 BASTIDORES: --- 2021
BMW F 750 850 GS EDITION 40 YEARS ABS DTC ESA 48 CV, 35 KW 2CIL. K80 0B08 BASTIDORES: --- 2021
BMW F 750 850 GS EDITION 40 YEARS ABS DTC ESA 77 CV, 57 KW 2CIL. K80 0B08 BASTIDORES: --- 2021
BMW F 750 850 GS SPORT ABS DTC 48 CV, 35 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2020
BMW F 750 850 GS SPORT ABS DTC 77 CV, 57 KW 2CIL. 4G85/K80 0B08 BASTIDORES: --- 2020
BMW F 850 850 GS ABS 48 CV, 35 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2018-2020
BMW F 850 850 GS ABS 95 CV, 70 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2018-2020
BMW F 850 850 GS ABS DTC 48 CV, 35 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2018-2020
BMW F 850 850 GS ABS DTC 95 CV, 70 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2018-2020
BMW F 850 850 GS ABS ESA 48 CV, 35 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2018-2020
BMW F 850 850 GS ABS ESA 95 CV, 70 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2018-2020
BMW F 850 850 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2019-2020
BMW F 850 850 GS ADVENTURE ABS 95 CV, 70 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2019-2020
BMW F 850 850 GS ADVENTURE ABS DTC 48 CV, 35 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2019-2020
BMW F 850 850 GS ADVENTURE ABS DTC 95 CV, 70 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2019-2020
BMW F 850 850 GS ADVENTURE ABS ESA 48 CV, 35 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2019-2020
BMW F 850 850 GS ADVENTURE ABS ESA 95 CV, 70 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2019-2020
BMW F 850 850 GS ADVENTURE SPORT ABS DTC 48 CV, 35 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2020
BMW F 850 850 GS ADVENTURE SPORT ABS DTC 95 CV, 70 KW 2CIL. 4G85/K82 0K01 BASTIDORES: --- 2020
BMW F 850 850 GS SPORT ABS DTC 48 CV, 35 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2020
BMW F 850 850 GS SPORT ABS DTC 95 CV, 70 KW 2CIL. 4G85/K81 0B09 BASTIDORES: --- 2020
BMW R 1200 GS ABS LC LLANTA DE FUNDICIÓN 125 CV, 92 KW 2CIL. 1G12/K50 0A51 BASTIDORES: --- 2017-2018
BMW R 1200 GS ABS LC LLANTA DE FUNDICIÓN 125 CV, 92 KW 2CIL. R12W/K50 0A01 BASTIDORES: --- 2013-2016
BMW R 1200 GS ABS LC LLANTA DE FUNDICIÓN DTC 125 CV, 92 KW 2CIL. 1G12/K50 0A51 BASTIDORES: --- 2017-2018
BMW R 1200 GS ABS LC LLANTA DE FUNDICIÓN ESA 125 CV, 92 KW 2CIL. 1G12/K50 0A51 BASTIDORES: --- 2017-2018
BMW R 1200 GS ABS LC LLANTA DE RADIOS 125 CV, 92 KW 2CIL. R12W/K50 0A01 BASTIDORES: --- 2013-2016
BMW R 1200 GS ADVENTURE ABS DTC LC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017-2018
BMW R 1200 GS ADVENTURE ABS ESA LC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017-2018
BMW R 1200 GS ADVENTURE ABS LC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017-2018
BMW R 1200 GS ADVENTURE ABS LC 125 CV, 92 KW 2CIL. R12W/K51 0A02 BASTIDORES: --- 2014-2016
BMW R 1200 GS ADVENTURE TRIPLE BLACK ABS ESA LC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017
BMW R 1200 GS ADVENTURE TRIPLE BLACK ABS LC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017
BMW R 1200 GS EXCLUSIVE ABS LC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017-2018
BMW R 1200 GS EXCLUSIVE ABS LC DTC 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017-2018
BMW R 1200 GS EXCLUSIVE ABS LC ESA 125 CV, 92 KW 2CIL. 1G12/K51 0A02 BASTIDORES: --- 2017-2018
BMW R 1200 GS RALLY ABS LC 125 CV, 92 KW 2CIL. 1G12/K50 0A51 BASTIDORES: --- 2017-2018
BMW R 1200 GS RALLY ABS LC DTC 125 CV, 92 KW 2CIL. 1G12/K50 0A51 BASTIDORES: --- 2017-2018
BMW R 1200 GS RALLY ABS LC ESA 125 CV, 92 KW 2CIL. 1G12/K50 0A51 BASTIDORES: --- 2017-2018
BMW R 1200 GS TRIPLE BLACK ABS LC 125 CV, 92 KW 2CIL. R12W/K50 0A01 BASTIDORES: --- 2016
