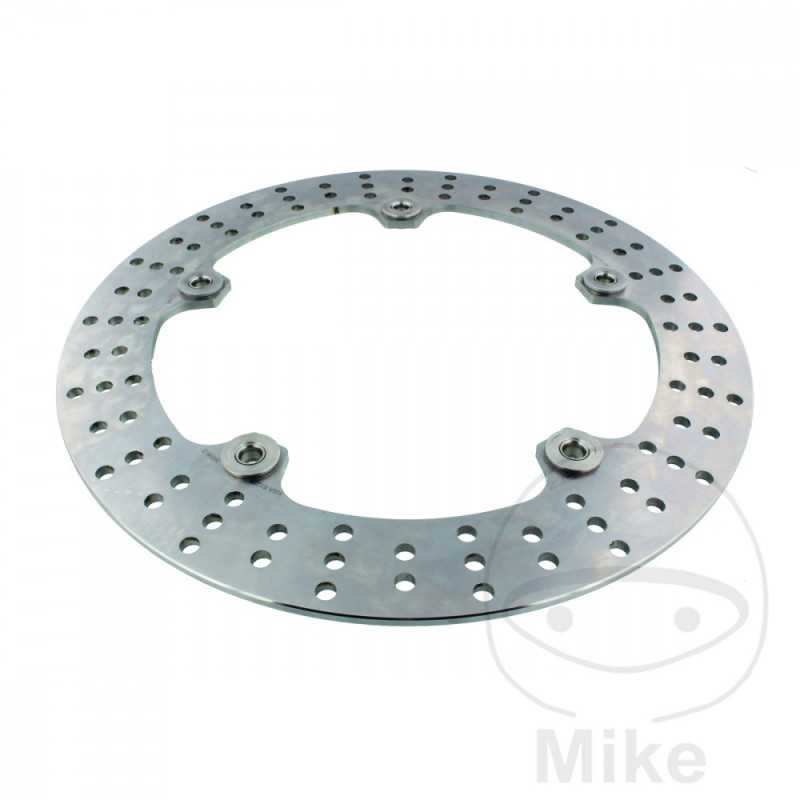

TRW Riveted rigid brake disc 788.01.47

All brake discs have an ABE, also for scooters.

Discs are low-wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 305MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 1200 GS ABS LLANTA DE FUNDICIÓN 105 CV, 77 KW 2CIL. R12/K25 0303 BASTIDORES: --- 2008-2009
BMW R 1200 GS ABS LLANTA DE FUNDICIÓN 110 CV, 81 KW 2CIL. R12/K25 0450 BASTIDORES: --- 2010-2012
BMW R 1200 GS ABS LLANTA DE RADIOS 105 CV, 77 KW 2CIL. R12/K25 0303 BASTIDORES: --- 2008-2009
BMW R 1200 GS ABS LLANTA DE RADIOS 110 CV, 81 KW 2CIL. R12/K25 0450 BASTIDORES: --- 2010-2012
BMW R 1200 GS ADVENTURE 105 CV, 77 KW 2CIL. R12/K25 0380 BASTIDORES: --- 2008-2009
BMW R 1200 GS ADVENTURE 110 CV, 81 KW 2CIL. R12/K25 0470 BASTIDORES: --- 2010-2012
BMW R 1200 GS ADVENTURE 90 AÑOS ABS 110 CV, 81 KW 2CIL. R12/K25 0470 BASTIDORES: --- 2013
BMW R 1200 GS ADVENTURE ABS 105 CV, 77 KW 2CIL. R12/K25 0380 BASTIDORES: --- 2008-2009
BMW R 1200 GS ADVENTURE ABS 110 CV, 81 KW 2CIL. R12/K25 0470 BASTIDORES: --- 2010-2013
BMW R 1200 GS ADVENTURE TRIPLE BLACK ABS 110 CV, 81 KW 2CIL. R12/K25 0470 BASTIDORES: --- 2013
BMW R 1200 GS LLANTA DE FUNDICIÓN 105 CV, 77 KW 2CIL. R12/K25 0303 BASTIDORES: --- 2008-2009
BMW R 1200 GS LLANTA DE FUNDICIÓN 110 CV, 81 KW 2CIL. R12/K25 0450 BASTIDORES: --- 2010-2012
BMW R 1200 GS LLANTA DE RADIOS 105 CV, 77 KW 2CIL. R12/K25 0303 BASTIDORES: --- 2008-2009
BMW R 1200 GS LLANTA DE RADIOS 110 CV, 81 KW 2CIL. R12/K25 0450 BASTIDORES: --- 2010-2012
