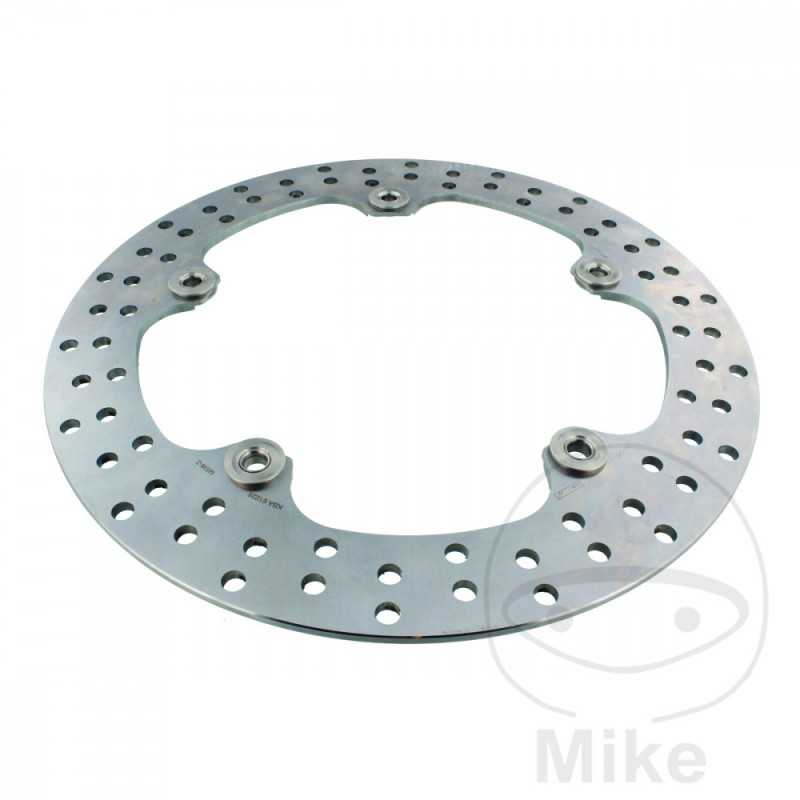

TRW Riveted rigid brake disc 788.01.46

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with slotted brake edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 305MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 1100 S 5,0 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 1998-2000
BMW R 1100 S 5,0 PULGADAS LLANTA ABS 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 1998-2000
BMW R 1100 S 5,5 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 1998-2000
BMW R 1100 S 5,5 PULGADAS LLANTA ABS 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 1998-2000
BMW R 1200 GS ABS LLANTA DE FUNDICIÓN 98 CV, 72 KW 2CIL. R12/K25 0307 BASTIDORES: --- 2004-2007
BMW R 1200 GS ABS LLANTA DE RADIOS 98 CV, 72 KW 2CIL. R12/K25 0307 BASTIDORES: --- 2004-2007
BMW R 1200 GS ADVENTURE 98 CV, 72 KW 2CIL. R12/K25 0382 BASTIDORES: --- 2006-2007
BMW R 1200 GS ADVENTURE ABS 98 CV, 72 KW 2CIL. R12/K25 0382 BASTIDORES: --- 2006-2007
BMW R 1200 GS LLANTA DE FUNDICIÓN 98 CV, 72 KW 2CIL. R12/K25 0307 BASTIDORES: --- 2004-2007
BMW R 1200 GS LLANTA DE RADIOS 98 CV, 72 KW 2CIL. R12/K25 0307 BASTIDORES: --- 2004-2007
BMW R 1200 HP2 ENDURO 105 CV, 77 KW 2CIL. RHP2/K25 0369 BASTIDORES: --- 2005-2008
