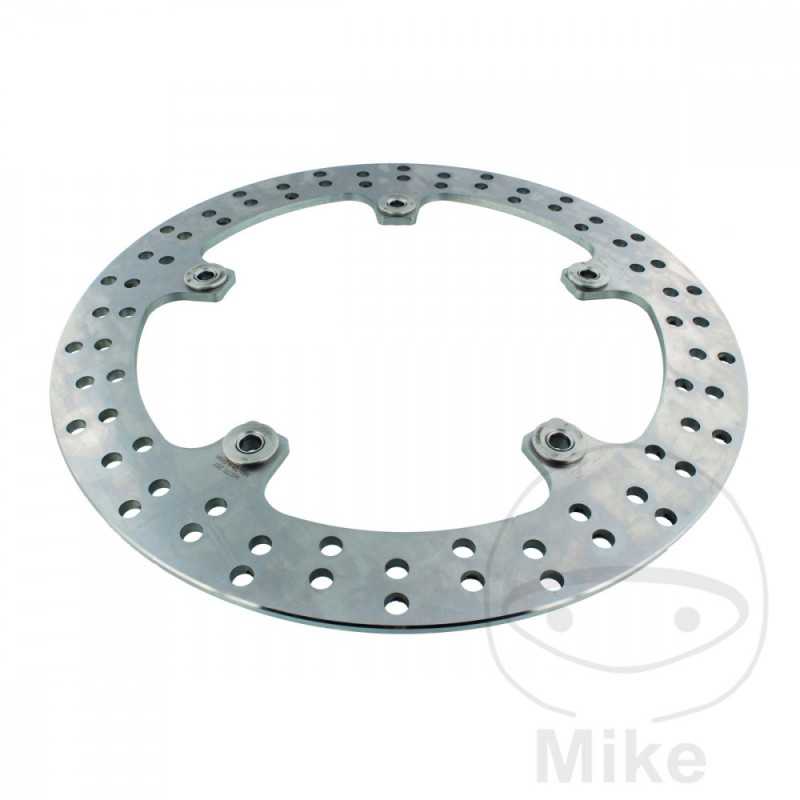

TRW Riveted rigid brake disc 788.01.45

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW K 1200 GT ABS 152 CV, 112 KW 4CIL. K12S/K44 0587 BASTIDORES: --- 2008
BMW K 1200 LT ABS 116 CV, 85 KW 4CIL. K12LT/K589 0549 BASTIDORES: --- 2008-2009
BMW K 1200 LT ABS 98 CV, 72 KW 4CIL. K12LT/K589 0549 BASTIDORES: --- 2008-2009
BMW K 1200 R SPORT 5,5 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 R SPORT 6,0 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 R SPORT ABS 5,5 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 R SPORT ABS 6,0 PULGADAS LLANTA 163 CV, 120 KW 4CIL. K12R/K43 0585 BASTIDORES: --- 2007-2008
BMW K 1200 S ABS 167 CV, 123 KW 4CIL. K12S/K40 0581 BASTIDORES: --- 2008
BMW K 1300 GT ABS 160 CV, 118 KW 4CIL. K12S/K44 0538 BASTIDORES: --- 2009
BMW K 1300 GT EXCLUSIVE EDITION ABS 160 CV, 118 KW 4CIL. K12S/K44 0538 BASTIDORES: --- 2010-2011
BMW K 1300 R 5,5 PULGADAS LLANTA 173 CV, 127 KW 4CIL. K12S/K43 0518 BASTIDORES: --- 2009-2012
BMW K 1300 R 5,5 PULGADAS LLANTA ABS 173 CV, 127 KW 4CIL. K12S/K43 0518 BASTIDORES: --- 2009-2015
BMW K 1300 R 6,0 PULGADAS LLANTA 173 CV, 127 KW 4CIL. K12S/K43 0518 BASTIDORES: --- 2009-2012
BMW K 1300 R 6,0 PULGADAS LLANTA ABS 173 CV, 127 KW 4CIL. K12S/K43 0518 BASTIDORES: --- 2009-2015
BMW K 1300 S ABS 175 CV, 129 KW 4CIL. K12S/K40 0508 BASTIDORES: --- 2009-2015
BMW K 1300 S MOTORSPORT ABS 175 CV, 129 KW 4CIL. K12S/K40 0508 BASTIDORES: --- 2014-2015
BMW K 1600 B BAGGER ABS 160 CV, 118 KW 6CIL. 2T16/K61 0F51 BASTIDORES: --- 2017
BMW K 1600 GT ABS 160 CV, 118 KW 6CIL. 2T16/K48 0F01 BASTIDORES: --- 2017
BMW K 1600 GT ABS 160 CV, 118 KW 6CIL. K16GT/K48 0601 BASTIDORES: --- 2011-2016
BMW K 1600 GT SPORT ABS 160 CV, 118 KW 6CIL. 2T16/K48 0F01 BASTIDORES: --- 2017
BMW K 1600 GT SPORT ABS 160 CV, 118 KW 6CIL. K16GT/K48 0601 BASTIDORES: --- 2013-2016
BMW K 1600 GTL ABS 160 CV, 118 KW 6CIL. 2T16/K48 0F02 BASTIDORES: --- 2017
BMW K 1600 GTL ABS 160 CV, 118 KW 6CIL. K16GT/K48 0602 BASTIDORES: --- 2011-2016
BMW K 1600 GTL ABS DTC 160 CV, 118 KW 6CIL. K16GT/K48 0602 BASTIDORES: --- 2014
BMW K 1600 GTL EXCLUSIVE ABS 160 CV, 118 KW 6CIL. K16GT/K48 0603 BASTIDORES: --- 2014-2016
BMW S 1000 R ABS 160 CV, 118 KW 4CIL. K10/K47 0D02 BASTIDORES: --- 2013-2016
BMW S 1000 R ABS 165 CV, 121 KW 4CIL. 2R10/K47 0D52 BASTIDORES: --- 2017
BMW S 1000 R ABS DDC 165 CV, 121 KW 4CIL. 2R10/K47 0D52 BASTIDORES: --- 2017
BMW S 1000 R ABS DTC 165 CV, 121 KW 4CIL. 2R10/K47 0D52 BASTIDORES: --- 2017
BMW S 1000 RR 193 CV, 142 KW 4CIL. K10/K46 0507 BASTIDORES: --- 2009-2011
BMW S 1000 RR 193 CV, 142 KW 4CIL. K10/K46 0524 BASTIDORES: --- 2012
BMW S 1000 RR ABS 193 CV, 142 KW 4CIL. K10/K46 0507 BASTIDORES: --- 2009-2011
BMW S 1000 RR ABS 193 CV, 142 KW 4CIL. K10/K46 0524 BASTIDORES: --- 2012-2014
BMW S 1000 RR ABS 199 CV, 146 KW 4CIL. 2R10/K46 0D50 BASTIDORES: --- 2017-2018
BMW S 1000 RR ABS 199 CV, 146 KW 4CIL. K10/K46 0D10 BASTIDORES: --- 2014-2016
BMW S 1000 RR ABS 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR ABS M-PAQUETE 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR ABS PAQUETE DINÁMICO 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR ABS RACE-PAQUETE 207 CV, 152 KW 4CIL. 2R99/K67 0E21 BASTIDORES: --- 2019
BMW S 1000 RR PRO ABS 199 CV, 146 KW 4CIL. 2R10/K46 0D50 BASTIDORES: --- 2017-2018
