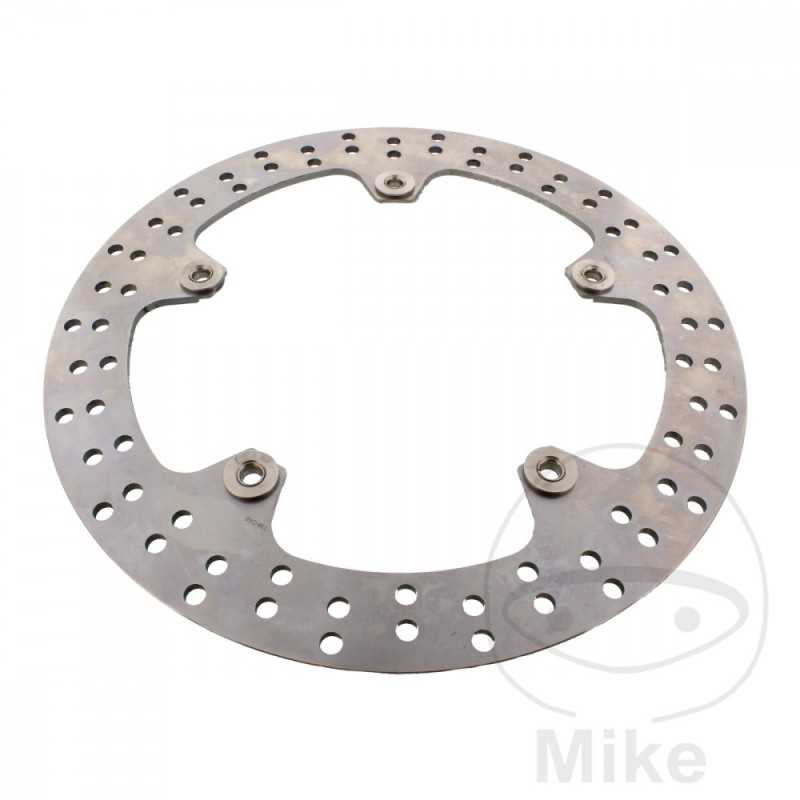

TRW Riveted rigid brake disc 788.01.42

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with slotted brake edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 800 800 S 34 CV, 25 kw 2cil. E8ST/K71 0216 Bastidores: --- 2006-2007
BMW F 800 800 S 85 CV, 62,5 kw 2cil. E8ST/K71 0216 Bastidores: --- 2006-2007
BMW F 800 800 S ABS 34 CV, 25 kw 2cil. E8ST/K71 0216 Bastidores: --- 2007
BMW F 800 800 S ABS 85 CV, 62,5 kw 2cil. E8ST/K71 0216 Bastidores: --- 2007
BMW F 800 800 ST 34 CV, 25 kw 2cil. E8ST/K71 0234 Bastidores: --- 2006-2007
BMW F 800 800 ST 85 CV, 62,5 kw 2cil. E8ST/K71 0234 Bastidores: --- 2006-2007
BMW F 800 800 ST ABS 34 CV, 25 kw 2cil. E8ST/K71 0234 Bastidores: --- 2007
BMW F 800 800 ST ABS 85 CV, 62,5 kw 2cil. E8ST/K71 0234 Bastidores: --- 2007
BMW R 1200 HP2 Megamoto 113 CV, 83 kw 2cil. RHP2/K25 0310 Bastidores: --- 2007
BMW R 1200 R 109 CV, 80 kw 2cil. R1ST/K27 0378 Bastidores: --- 2007
BMW R 1200 R ABS 109 CV, 80 kw 2cil. R1ST/K27 0378 Bastidores: --- 2007
BMW R 1200 RT 90 años ABS 110 CV, 81 kw 2cil. R12T/K26 0430 Bastidores: --- 2013-2014
BMW R 1200 RT ABS 110 CV, 81 kw 2cil. R12T/K26 0368 Bastidores: --- 2005-2009
BMW R 1200 RT ABS 110 CV, 81 kw 2cil. R12T/K26 0430 Bastidores: --- 2010-2013
BMW R 1200 RT ABS LC 125 CV, 92 kw 2cil. 1T12/K52 0A03 Bastidores: --- 2017-2018
BMW R 1200 RT ABS LC 125 CV, 92 kw 2cil. R12WT/K52 0A03 Bastidores: --- 2013-2016
BMW R 1200 RT ABS LC DTC 125 CV, 92 kw 2cil. 1T12/K52 0A03 Bastidores: --- 2017-2018
BMW R 1200 RT ABS LC ESA 125 CV, 92 kw 2cil. 1T12/K52 0A03 Bastidores: --- 2017-2018
BMW R 1200 S 5,5 pulgadas llanta 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2006-2007
BMW R 1200 S 5,5 pulgadas llanta ABS 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2006-2007
BMW R 1200 S 6,0 pulgadas llanta 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2006-2007
BMW R 1200 S 6,0 pulgadas llanta ABS 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2006-2007
BMW R 1200 ST 110 CV, 81 kw 2cil. R1ST/K28 0328 Bastidores: --- 2005-2008
BMW R 1200 ST ABS 110 CV, 81 kw 2cil. R1ST/K28 0328 Bastidores: --- 2005-2008
