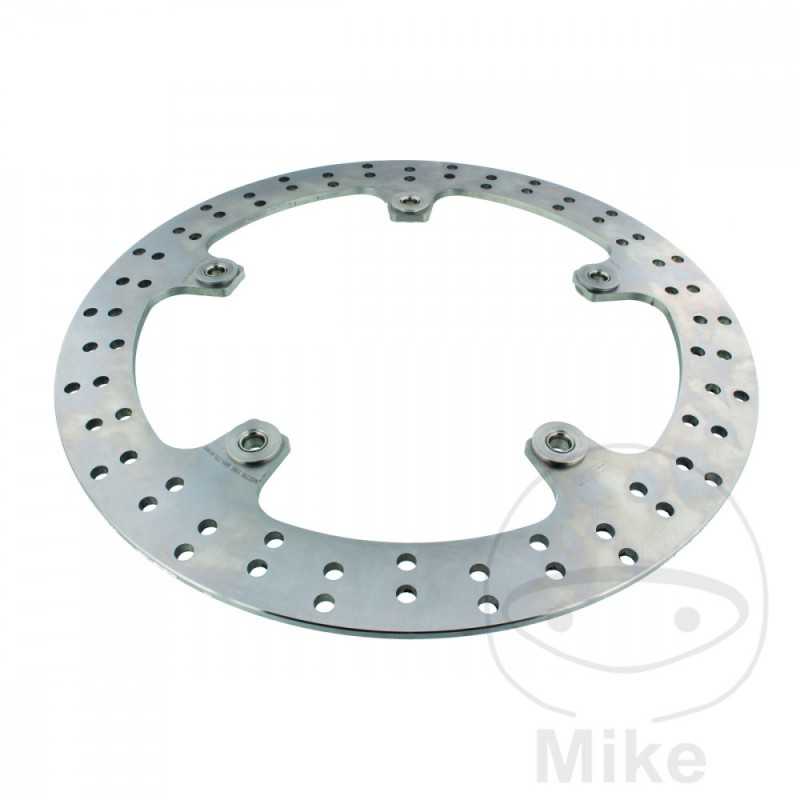

TRW Riveted rigid brake disc 788.01.41

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 800 800 R ABS 48 CV, 35 kw 2cil. 4R80/K73 0B54 Bastidores: --- 2017
BMW F 800 800 R ABS 48 CV, 35 kw 2cil. E8ST/K73 0B04 Bastidores: --- 2015-2016
BMW F 800 800 R ABS 90 CV, 66 kw 2cil. 4R80/K73 0B54 Bastidores: --- 2017
BMW F 800 800 R ABS 90 CV, 66 kw 2cil. E8ST/K73 0B04 Bastidores: --- 2015-2016
BMW F 800 800 R ABS ESA 48 CV, 35 kw 2cil. 4R80/K73 0B54 Bastidores: --- 2017
BMW F 800 800 R ABS ESA 90 CV, 66 kw 2cil. 4R80/K73 0B54 Bastidores: --- 2017
BMW R 1200 NineT ABS 110 CV, 81 kw 2cil. R1ST/K21 0A06 Bastidores: --- 2013-2015
BMW R 1200 R ABS LC 125 CV, 92 kw 2cil. 1R12/K53 0A04 Bastidores: --- 2017-2018
BMW R 1200 R ABS LC 125 CV, 92 kw 2cil. R12WR/K53 0A04 Bastidores: --- 2014-2016
BMW R 1200 R ABS LC DTC 125 CV, 92 kw 2cil. 1R12/K53 0A04 Bastidores: --- 2017-2018
BMW R 1200 R ABS LC ESA 125 CV, 92 kw 2cil. 1R12/K53 0A04 Bastidores: --- 2017-2018
BMW R 1200 R ABS LC ESA 125 CV, 92 kw 2cil. R12WR/K53 0A04 Bastidores: --- 2014-2016
BMW R 1200 RS ABS LC 125 CV, 92 kw 2cil. 12WR/K54 0A05 Bastidores: --- 2015-2016
BMW R 1200 RS ABS LC 125 CV, 92 kw 2cil. 1R12/K54 0A05 Bastidores: --- 2017
BMW R 1200 RS ABS LC ESA 125 CV, 92 kw 2cil. 12WR/K54 0A05 Bastidores: --- 2015-2016
BMW R 1200 RS ABS LC ESA 125 CV, 92 kw 2cil. 1R12/K54 0A05 Bastidores: --- 2017
BMW R 1250 R ABS 136 CV, 100 kw 2cil. 1R13/K53 0J71 Bastidores: --- 2019
BMW R 1250 R ABS DTC 136 CV, 100 kw 2cil. 1R13/K53 0J71 Bastidores: --- 2019
BMW R 1250 R ABS ESA 136 CV, 100 kw 2cil. 1R13/K53 0J71 Bastidores: --- 2019
BMW R 1250 RS ABS 136 CV, 100 kw 2cil. 1R13/K54 0J81 Bastidores: --- 2019
BMW R 1250 RS ABS DTC 136 CV, 100 kw 2cil. 1R13/K54 0J81 Bastidores: --- 2019
BMW R 1250 RS ABS ESA 136 CV, 100 kw 2cil. 1R13/K54 0J81 Bastidores: --- 2019
BMW R 1250 RT ABS 136 CV, 100 kw 2cil. 1T13/K52 0J61 Bastidores: --- 2019
BMW R 1250 RT ABS DTC 136 CV, 100 kw 2cil. 1T13/K52 0J61 Bastidores: --- 2019
BMW R 1250 RT ABS ESA 136 CV, 100 kw 2cil. 1T13/K52 0J61 Bastidores: --- 2019
BMW S 1000 XR ABS 160 CV, 118 kw 4cil. K10/K49 0D03 Bastidores: --- 2015-2016
BMW S 1000 XR ABS 165 CV, 121 kw 4cil. 2X10/K49 0D03 Bastidores: --- 2017
BMW S 1000 XR ABS DTC 165 CV, 121 kw 4cil. 2X10/K49 0D03 Bastidores: --- 2017
BMW S 1000 XR ABS ESA 165 CV, 121 kw 4cil. 2X10/K49 0D03 Bastidores: --- 2017
