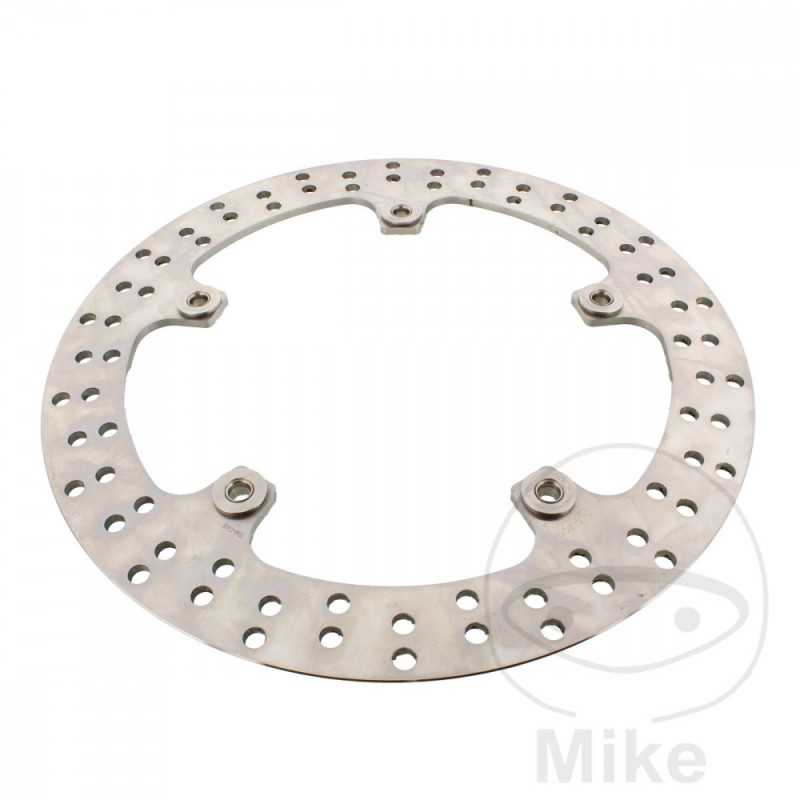

TRW Riveted rigid brake disc 788.01.40

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 181MM
CIRCLE SIZE: 203 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.4 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 800 800 GT ABS 48 CV, 35 kw 2cil. 4R80/K71 0B53 Bastidores: --- 2017
BMW F 800 800 GT ABS 48 CV, 35 kw 2cil. E8ST/K71 0B03 Bastidores: --- 2013-2016
BMW F 800 800 GT ABS 90 CV, 66 kw 2cil. 4R80/K71 0B53 Bastidores: --- 2017
BMW F 800 800 GT ABS 90 CV, 66 kw 2cil. E8ST/K71 0B03 Bastidores: --- 2013-2016
BMW F 800 800 GT ABS ESA 48 CV, 35 kw 2cil. 4R80/K71 0B53 Bastidores: --- 2017
BMW F 800 800 GT ABS ESA 90 CV, 66 kw 2cil. 4R80/K71 0B53 Bastidores: --- 2017
BMW F 800 800 R 34 CV, 25 kw 2cil. E8ST/K73 0217 Bastidores: --- 2009-2012
BMW F 800 800 R 87 CV, 64 kw 2cil. E8ST/K73 0217 Bastidores: --- 2009-2012
BMW F 800 800 R ABS 34 CV, 25 kw 2cil. E8ST/K73 0217 Bastidores: --- 2009-2012
BMW F 800 800 R ABS 48 CV, 35 kw 2cil. E8ST/K73 0217 Bastidores: --- 2013-2014
BMW F 800 800 R ABS 87 CV, 64 kw 2cil. E8ST/K73 0217 Bastidores: --- 2009-2014
BMW F 800 800 S 34 CV, 25 kw 2cil. E8ST/K71 0216 Bastidores: --- 2008-2010
BMW F 800 800 S 85 CV, 62,5 kw 2cil. E8ST/K71 0216 Bastidores: --- 2008-2010
BMW F 800 800 S ABS 34 CV, 25 kw 2cil. E8ST/K71 0216 Bastidores: --- 2008-2010
BMW F 800 800 S ABS 85 CV, 62,5 kw 2cil. E8ST/K71 0216 Bastidores: --- 2008-2010
BMW F 800 800 ST 34 CV, 25 kw 2cil. E8ST/K71 0234 Bastidores: --- 2008-2012
BMW F 800 800 ST 85 CV, 62,5 kw 2cil. E8ST/K71 0234 Bastidores: --- 2008-2012
BMW F 800 800 ST ABS 34 CV, 25 kw 2cil. E8ST/K71 0234 Bastidores: --- 2008-2012
BMW F 800 800 ST ABS 85 CV, 62,5 kw 2cil. E8ST/K71 0234 Bastidores: --- 2008-2012
BMW R 1200 HP2 Megamoto 113 CV, 83 kw 2cil. RHP2/K25 0310 Bastidores: --- 2008-2011
BMW R 1200 HP2 Sport 133 CV, 98 kw 2cil. R12S/K29 0458 Bastidores: --- 2008-2011
BMW R 1200 HP2 Sport ABS 133 CV, 98 kw 2cil. R12S/K29 0458 Bastidores: --- 2008-2011
BMW R 1200 NineT Pure ABS llanta de fundición 110 CV, 81 kw 2cil. 1N12/K22 0J11 Bastidores: --- 2017
BMW R 1200 NineT Pure ABS llanta de radios 110 CV, 81 kw 2cil. 1N12/K22 0J11 Bastidores: --- 2017
BMW R 1200 NineT Racer ABS llanta de fundición 110 CV, 81 kw 2cil. 1N12/K32 0J21 Bastidores: --- 2017
BMW R 1200 NineT Racer ABS llanta de radios 110 CV, 81 kw 2cil. 1N12/K32 0J21 Bastidores: --- 2017
BMW R 1200 NineT Scrambler ABS llanta de fundición 110 CV, 81 kw 2cil. 1N12/K23 0J31 Bastidores: --- 2016-2017
BMW R 1200 NineT Scrambler ABS llanta de radios 110 CV, 81 kw 2cil. 1N12/K23 0J31 Bastidores: --- 2017
BMW R 1200 NineT Urban G/S ABS llanta de fundición 110 CV, 81 kw 2cil. 1N12/K33 0J41 Bastidores: --- 2017
BMW R 1200 NineT Urban G/S ABS llanta de radios 110 CV, 81 kw 2cil. 1N12/K33 0J41 Bastidores: --- 2017
BMW R 1200 R 109 CV, 80 kw 2cil. R1ST/K27 0378 Bastidores: --- 2008-2010
BMW R 1200 R 110 CV, 81 kw 2cil. R1ST/K27 0400 Bastidores: --- 2011-2012
BMW R 1200 R 90 años ABS 110 CV, 81 kw 2cil. R1ST/K27 0400 Bastidores: --- 2013
BMW R 1200 R ABS 109 CV, 80 kw 2cil. R1ST/K27 0378 Bastidores: --- 2008-2010
BMW R 1200 R ABS 110 CV, 81 kw 2cil. R1ST/K27 0400 Bastidores: --- 2011-2014
BMW R 1200 R Classic ABS 110 CV, 81 kw 2cil. R1ST/K27 0400 Bastidores: --- 2013-2014
BMW R 1200 S 5,5 pulgadas llanta 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2008
BMW R 1200 S 5,5 pulgadas llanta ABS 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2008
BMW R 1200 S 6,0 pulgadas llanta 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2008
BMW R 1200 S 6,0 pulgadas llanta ABS 122 CV, 90 kw 2cil. R12S/K29 0366 Bastidores: --- 2008
