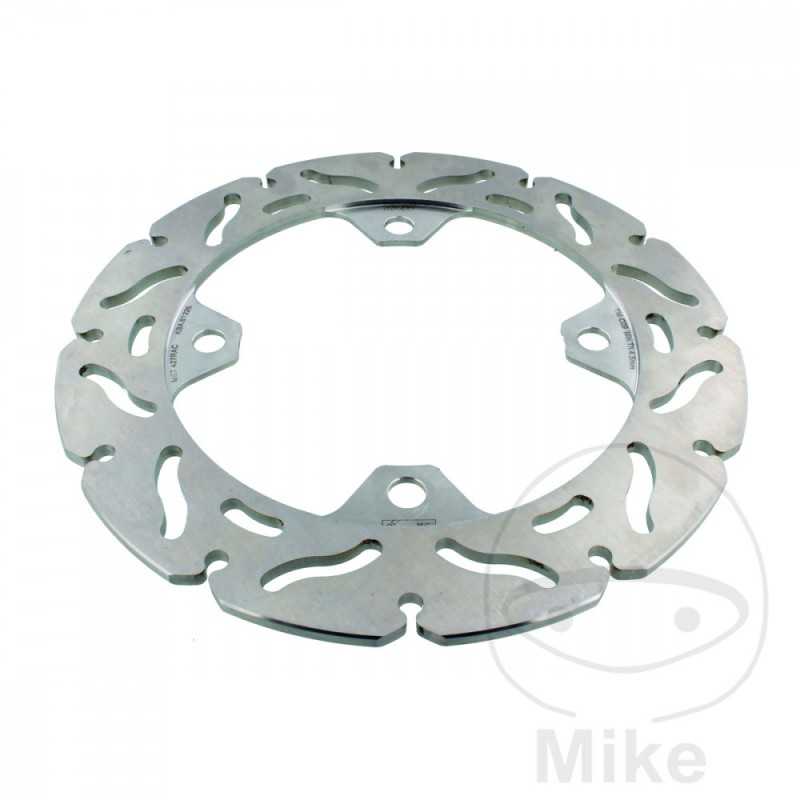

TRW Rigid brake disc for motorcycle RACING 788.01.37

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C 9 BASTIDORES: JH2 SC59C-9K000001-JH2 SC59C-9K099999 2009
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C A BASTIDORES: JH2 SC59C-AK100001-JH2 SC59C-AK199999 2010
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C B BASTIDORES: JH2 SC59C-BK200001-- 2011
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C C BASTIDORES: JH2 SC59C-CK300001-JH2 SC59C-CK399999 2012
HONDA CBR 1000 RA FIREBLADE ABS 178 CV, 131 KW 4CIL. SC59C D BASTIDORES: JH2 SC59C-DK400001-JH2 SC59C-DK499999 2013
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C E BASTIDORES: JH2 SC59C-EK500001-- 2014
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C F BASTIDORES: JH2 SC59C-FK600001-JH2 SC59C-FK699999 2015
HONDA CBR 1000 RA FIREBLADE ABS 181 CV, 133 KW 4CIL. SC59C G BASTIDORES: JH2 SC59C-GK700001-- 2016
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A H BASTIDORES: JH2 SC77A-HK000001-JH2 SC77A-HK099999 2017
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A J BASTIDORES: JH2 SC77A-JK100001-- 2018
HONDA CBR 1000 RA FIREBLADE ABS 192 CV, 141 KW 4CIL. SC77A K BASTIDORES: JH2 SC77A-KK200001-- 2019
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 8 BASTIDORES: JH2 SC59A-8K020001-JH2 SC59A-8K029999 2008
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 8 BASTIDORES: JH2 SC59A-8M000001-JH2 SC59A-8M019999 2008
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A 9 BASTIDORES: JH2 SC59A-9K100001-JH2 SC59A-9K199999 2009
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A A BASTIDORES: JH2 SC59A-AK200001-JH2 SC59A-AK299999 2010
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A B BASTIDORES: JH2 SC59A-BK300001-- 2011
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A C BASTIDORES: JH2 SC59A-CK400001-JH2 SC59A-CK499999 2012
HONDA CBR 1000 RR FIREBLADE 178 CV, 131 KW 4CIL. SC59A D BASTIDORES: JH2 SC59A-DK500001-JH2 SC59A-DK599999 2013
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A E BASTIDORES: JH2 SC59A-EK600001-- 2014
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A F BASTIDORES: JH2 SC59A-FK700001-JH2 SC59A-FK799999 2015
HONDA CBR 1000 RR FIREBLADE 181 CV, 133 KW 4CIL. SC59A G BASTIDORES: JH2 SC59A-GK800001-- 2016
HONDA CBR 1000 RR S1 FIREBLADE SP-1 ABS 192 CV, 141 KW 4CIL. SC77B H BASTIDORES: JH2 SC77B-HK000001-JH2 SC77B-HK099999 2017
HONDA CBR 1000 RR S1 FIREBLADE SP-1 ABS 192 CV, 141 KW 4CIL. SC77B J BASTIDORES: JH2 SC77B-JK100001-- 2018
HONDA CBR 1000 RR S1 FIREBLADE SP-1 ABS 192 CV, 141 KW 4CIL. SC77B K BASTIDORES: JH2 SC77B-KK200001-- 2019
HONDA CBR 1000 RR S2 FIREBLADE SP-2 ABS 192 CV, 141 KW 4CIL. SC77C H BASTIDORES: JH2 SC77C-HK000001-JH2 SC77C-HK099999 2017
HONDA CBR 1000 RR S2 FIREBLADE SP-2 ABS 192 CV, 141 KW 4CIL. SC77C J BASTIDORES: JH2 SC77C-JK100001-- 2018-2019
HONDA CBR 1000 RR-R FIREBLADE ABS 217 CV, 160 KW 4CIL. SC82A STL BASTIDORES: JH2 SC82A-LK000001-JH2 SC82A-LK099999 2020-2021
HONDA CBR 1000 RR-R FIREBLADE SP ABS 217 CV, 160 KW 4CIL. SC82B SPL BASTIDORES: JH2 SC82B-LK000001-JH2 SC82B-LK099999 2020-2021
HONDA CBR 1000 RRS FIREBLADE EDITION 178 CV, 131 KW 4CIL. SC59D 8 BASTIDORES: --- 2008
HONDA CBR 1000 S FIREBLADE SP 181 CV, 133 KW 4CIL. SC59E F BASTIDORES: JH2 SC59E-FK500001-JH2 SC59E-FK599999 2015
HONDA CBR 1000 S FIREBLADE SP 181 CV, 133 KW 4CIL. SC59E G BASTIDORES: JH2 SC59E-GK600001-- 2016
HONDA CBR 1000 SA FIREBLADE SP ABS 181 CV, 133 KW 4CIL. SC59G F BASTIDORES: JH2 SC59G-FK200001-JH2 SC59G-FK299999 2015
HONDA CBR 1000 SA FIREBLADE SP ABS 181 CV, 133 KW 4CIL. SC59G G BASTIDORES: JH2 SC59G-GK300001-- 2016
