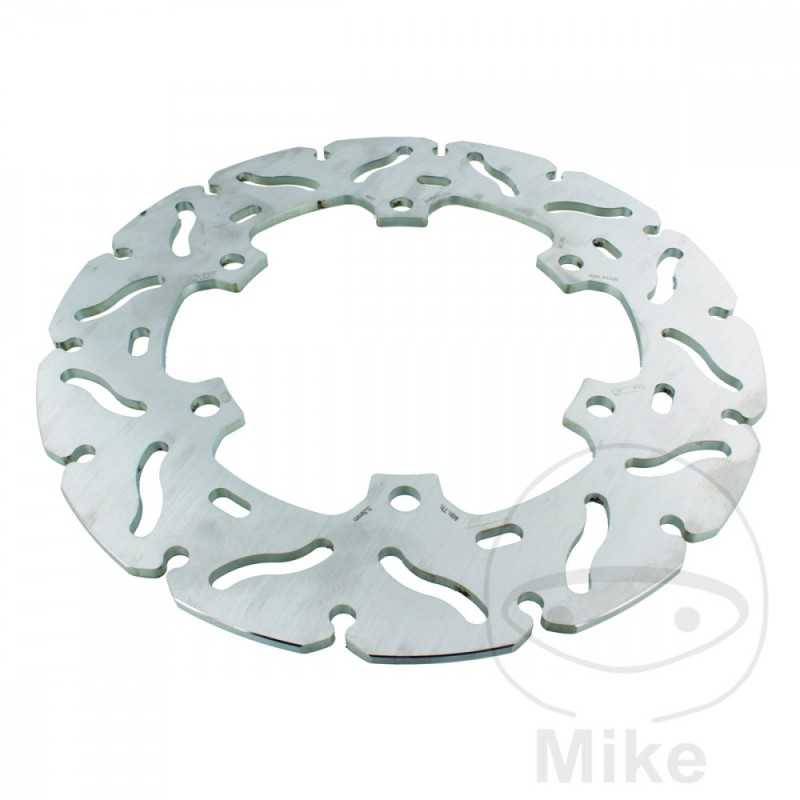

TRW Rigid brake disc for motorcycle RACING 788.01.32

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

Uniform temperature build-up and release allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Coordinated front-rear axle design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 118.3MM
CIRCLE SIZE: 135 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.6 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA MT 125 15 CV, 11 KW 1CIL. RE114 5D7C BASTIDORES: RE114 henceforth00101-- 2014-2015
YAMAHA MT 125 15 CV, 11 KW 1CIL. RE114 5D7L BASTIDORES: RE114 henceforth00109-- 2014-2015
YAMAHA MT 125 15 CV, 11 KW 1CIL. RE114 BR31 BASTIDORES: RE114-100102-- 2016
YAMAHA MT 125 15 CV, 11 KW 1CIL. RE114 BR33 BASTIDORES: RE114-100101-- 2016
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE115 5D7D BASTIDORES: RE115 henceforth00091-- 2014-2015
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE115 5D7M BASTIDORES: RE115 henceforth00090-- 2014-2015
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE115 BR32 BASTIDORES: RE115-105101-- 2016
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE115 BR34 BASTIDORES: RE115-100101-- 2016
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE292 BR35 BASTIDORES: RE292 henceforth00095-- 2017
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE292 BR36 BASTIDORES: RE292 henceforth10101-- 2018
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE292 BR37 BASTIDORES: RE292 henceforth22351-- 2019
YAMAHA MT 125 A ABS 15 CV, 11 KW 1CIL. RE392 B6G1 BASTIDORES: RE392 henceforth00060-- 2020
YAMAHA YZF-R 125 15 CV, 11 KW 1CIL. RE111 5D78 BASTIDORES: RE111 henceforth00073-- 2014
YAMAHA YZF-R 125 15 CV, 11 KW 1CIL. RE111 5D7K BASTIDORES: RE111 henceforth00070-- 2014
YAMAHA YZF-R 125 15 CV, 11 KW 1CIL. RE111 5D7P BASTIDORES: RE111 henceforth06102-- 2015
YAMAHA YZF-R 125 15 CV, 11 KW 1CIL. RE111 5D7R BASTIDORES: RE111 henceforth06101-- 2015
YAMAHA YZF-R 125 15 CV, 11 KW 1CIL. RE111 5D7S BASTIDORES: RE111 henceforth11101-- 2016
YAMAHA YZF-R 125 15 CV, 11 KW 1CIL. RE111 5D7W BASTIDORES: RE111 henceforth11102-- 2016
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE112 5D7E BASTIDORES: RE112 henceforth00098-- 2015
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE112 5D7T BASTIDORES: RE112 henceforth04102-- 2016
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE112 5D7X BASTIDORES: RE112 henceforth04101-- 2016
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE291 BR61 BASTIDORES: RE291 henceforth00092-- 2017
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE291 BR62 BASTIDORES: RE291 henceforth10101-- 2018
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE391 B5G1 BASTIDORES: RE391 henceforth00080-- 2019
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE391 B5G4 BASTIDORES: RE391 henceforth08101-- 2020
YAMAHA YZF-R 125 A ABS 15 CV, 11 KW 1CIL. RE401 B5G2 BASTIDORES: RE401 henceforth00080-- 2021
