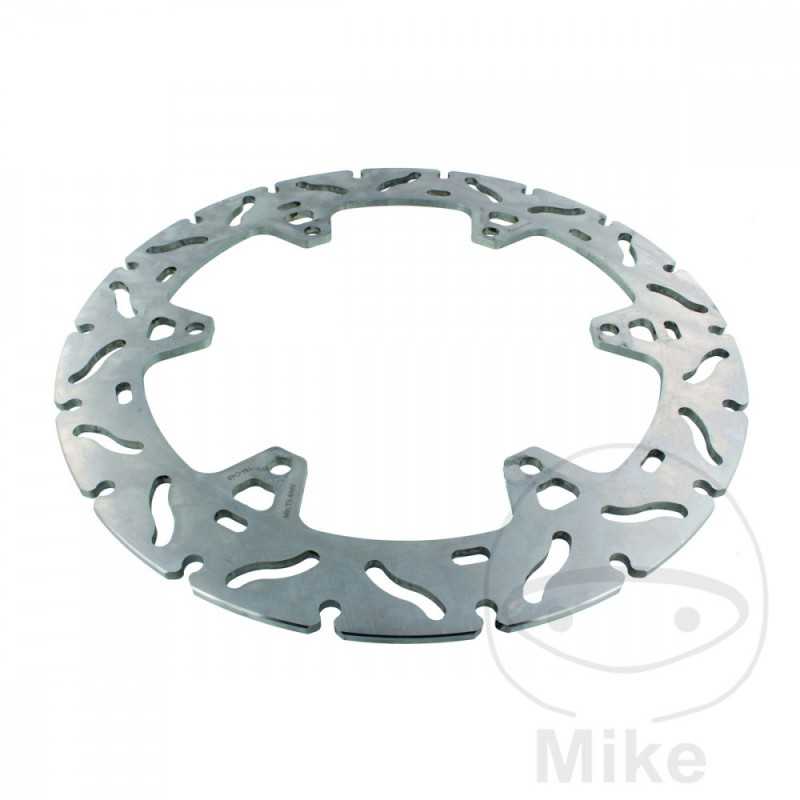

TRW Rigid brake disc for motorcycle RACING 788.01.30

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 292MM
INSIDE DIAMETER: 165.3MM
CIRCLE SIZE: 180 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7C Bastidores: RE114 henceforth00101-- 2014-2015
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 5D7L Bastidores: RE114 henceforth00109-- 2014-2015
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR31 Bastidores: RE114-100102-- 2016
Yamaha MT 125 15 CV, 11 kw 1cil. RE114 BR33 Bastidores: RE114-100101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7D Bastidores: RE115 henceforth00091-- 2014-2015
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 5D7M Bastidores: RE115 henceforth00090-- 2014-2015
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR32 Bastidores: RE115-105101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE115 BR34 Bastidores: RE115-100101-- 2016
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR35 Bastidores: RE292 henceforth00095-- 2017
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR36 Bastidores: RE292 henceforth10101-- 2018
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE292 BR37 Bastidores: RE292 henceforth22351-- 2019
Yamaha MT 125 A ABS 15 CV, 11 kw 1cil. RE392 B6G1 Bastidores: RE392 henceforth00060-- 2020
Yamaha MT 125 A MTN125-A ABS 15 CV, 11 kw 1cil. RE402 B6G2 Bastidores: RE402 henceforth00080-- 2021
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D78 Bastidores: RE111 henceforth00073-- 2014
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7K Bastidores: RE111 henceforth00070-- 2014
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7P Bastidores: RE111 henceforth06102-- 2015
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7R Bastidores: RE111 henceforth06101-- 2015
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7S Bastidores: RE111 henceforth11101-- 2016
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE111 5D7W Bastidores: RE111 henceforth11102-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7E Bastidores: RE112 henceforth00098-- 2015
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7T Bastidores: RE112 henceforth04102-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE112 5D7X Bastidores: RE112 henceforth04101-- 2016
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR61 Bastidores: RE291 henceforth00092-- 2017
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE291 BR62 Bastidores: RE291 henceforth10101-- 2018
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE391 B5G1 Bastidores: RE391 henceforth00080-- 2019
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE391 B5G4 Bastidores: RE391 henceforth08101-- 2020
Yamaha YZF-R 125 A ABS 15 CV, 11 kw 1cil. RE401 B5G2 Bastidores: RE401 henceforth00080-- 2021
