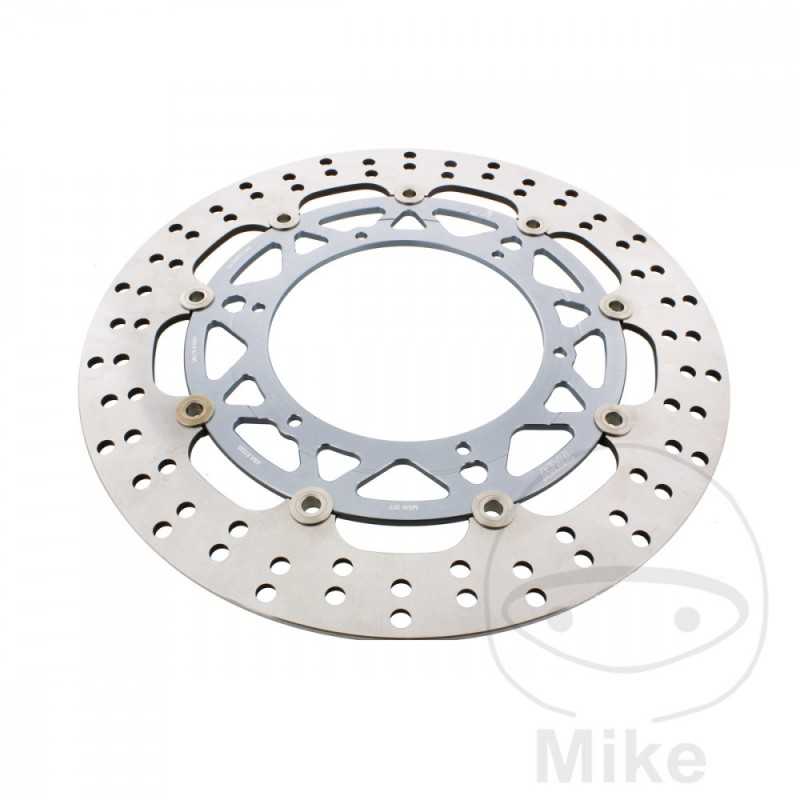

TRW floating brake disc for motorcycle 788.00.98

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

The floating brake discs have titanium-colored anodized aluminum inner rings.

Floating windows do not vibrate, because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 136.8MM
CIRCLE SIZE: 153 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 1050 ABS 48 CV, 35 kw 2cil. - Bastidores: --- 2015-2016
KTM Adventure 1050 ABS 95 CV, 70 kw 2cil. - Bastidores: --- 2015-2016
KTM Adventure 1090 ABS 125 CV, 92 kw 2cil. - Bastidores: --- 2017-2019
KTM Adventure 1090 L ABS 95 CV, 70 kw 2cil. - Bastidores: --- 2018
KTM Adventure 1090 L ABS A2 48 CV, 35 kw 2cil. - Bastidores: --- 2018
KTM Adventure 1090 R ABS 125 CV, 92 kw 2cil. - Bastidores: --- 2017-2019
KTM Adventure 1190 ABS 150 CV, 110 kw 2cil. - Bastidores: --- 2013-2016
KTM Adventure 1190 R ABS 150 CV, 110 kw 2cil. - Bastidores: --- 2013-2016
KTM Adventure 790 ABS 48 CV 35 kw 2cil. - Bastidores: --- 2019-2020
KTM Adventure 790 ABS 95,2 CV 70 kw 2cil. - Bastidores: --- 2019-2020
KTM Adventure 790 R ABS 48 CV 35 kw 2cil. - Bastidores: --- 2019-2020
KTM Adventure 790 R ABS 95,2 CV 70 kw 2cil. - Bastidores: --- 2019-2020
KTM Adventure 790 R Rally ABS 48 CV 35 kw 2cil. - Bastidores: --- 2020
KTM Adventure 790 R Rally ABS 95,2 CV 70 kw 2cil. - Bastidores: --- 2020
KTM Super Adventure 1290 LC8 ABS 160 CV, 118 kw 2cil. - Bastidores: --- 2015-2016
KTM Super Adventure 1290 R LC8 ABS 160 CV, 118 kw 2cil. - Bastidores: --- 2018-2019
KTM Super Adventure 1290 S LC8 ABS 160 CV, 118 kw 2cil. - Bastidores: --- 2018-2019
