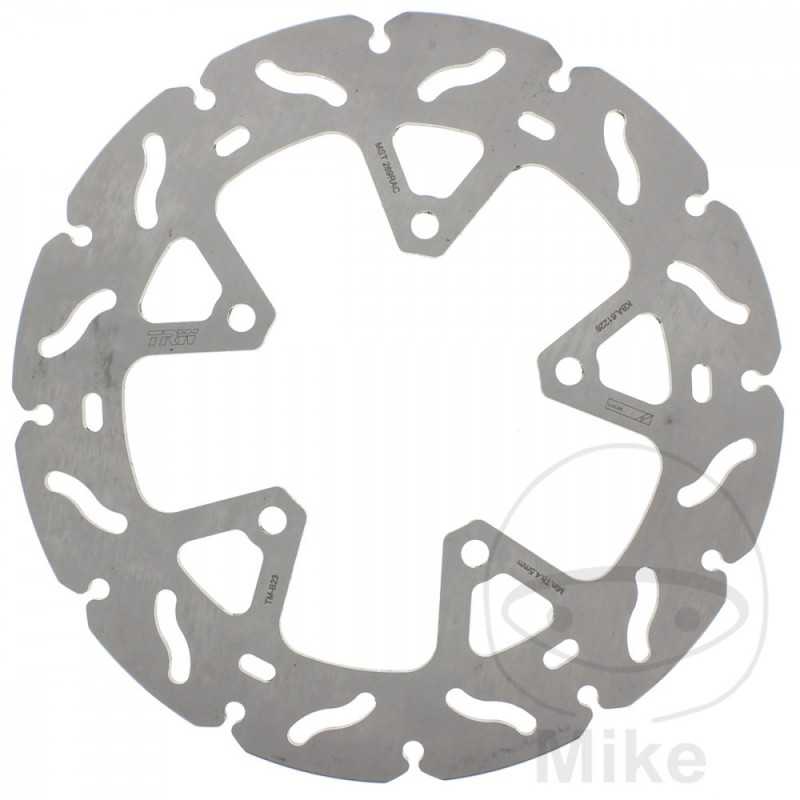

TRW Rigid brake disc for motorcycle RACING 788.00.61

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 89.3MM
CIRCLE SIZE: 108 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM SUPER DUKE 1290 GT LC8 ABS 173 CV, 127 KW 2CIL. - BASTIDORES: --- 2016-2018
KTM SUPER DUKE 1290 GT LC8 ABS 175 CV, 128,7 KW 2CIL. - BASTIDORES: --- 2019-2020
KTM SUPER DUKE 1290 R LC8 ABS 173 CV, 127 KW 2CIL. - BASTIDORES: --- 2014-2016
KTM SUPER DUKE 1290 R LC8 ABS 177 CV, 130 KW 2CIL. - BASTIDORES: --- 2017-2019
KTM SUPER DUKE 1290 R LC8 ABS 180 CV, 132 KW 2CIL. - BASTIDORES: --- 2020
KTM SUPER DUKE 1290 R LC8 SPECIAL EDITION ABS 173 CV, 127 KW 2CIL. - BASTIDORES: --- 2016-2017
