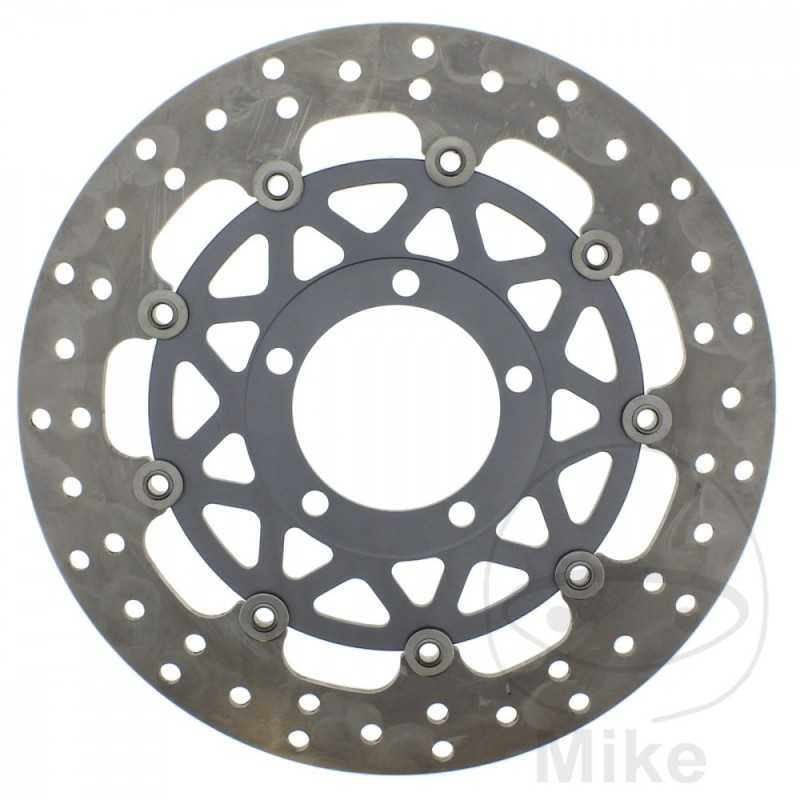

TRW floating brake disc for motorcycle 788.00.46

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC Offroad Discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

A uniform rise and fall in temperature allows for a constant pressure point.

The floating brake discs have titanium-colored anodized aluminum inner rings.

Floating windows do not vibrate, because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 305MM
INSIDE DIAMETER: 84.7MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Tiger 1200 Alpine Edition ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2020-2021
Triumph Tiger 1200 Desert Edition ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2020-2021
Triumph Tiger 1200 XCA ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XCA ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XCX ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XCX ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XR ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XR ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 1200 XRT ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XRT ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XRX ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XRX ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 1200 XRX Low ABS 141 CV, 104 kw 3cil. V301 Bastidores: 1 --1 - 2018
Triumph Tiger 1200 XRX Low ABS 141 CV, 104 kw 3cil. V301A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 800 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE10B8 --SMTTRE10B8 - 2011-2013
Triumph Tiger 800 XC 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE11B8 --SMTTRE11B8 - 2011-2013
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 - 674842-SMTTRE16B8 - 2015
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2011-2013
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2016-2017
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 674841 2014
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE18B8 --SMTTRE18B8 - 855531 2015-2016
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE18B8 --SMTTRE18B8 - 855531 2015-2016
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XCA ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2015
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2015
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XCX ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2019
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2019
Triumph Tiger 800 XCX Low ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 2015
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 855531 2016
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 2015
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 855531 2016
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XR ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XRT ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE17B8 --SMTTRE17B8 - 855531 2015-2016
Triumph Tiger 800 XRT ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XRT ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XRT ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE17B8 --SMTTRE17B8 - 855531 2015-2016
Triumph Tiger 800 XRT ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XRT ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XRT ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 2015
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 2015
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XRX ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XRX Low ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX Low ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XRX Low ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XRX Low ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX Low ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XRX Low ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XRX Low ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger Explorer 1200 ABS 137 CV, 101 kw 3cil. V13VG Bastidores: --- 740276 2016
Triumph Tiger Explorer 1200 ABS 137 CV, 101 kw 3cil. V13VG Bastidores: SMTV1F11E9 --SMTV1F11E9 - 2012-2015
Triumph Tiger Explorer 1200 ABS 98 CV, 72 kw 3cil. V13VG Bastidores: SMTV1F11E9 --SMTV1F11E9 - 2012-2015
Triumph Tiger Explorer 1200 ABS llanta de radios 137 CV, 101 kw 3cil. V13VG Bastidores: --- 740276 2016
Triumph Tiger Explorer 1200 XC ABS 137 CV, 101 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 2013-2014
Triumph Tiger Explorer 1200 XC ABS 137 CV, 101 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 740276 2015
Triumph Tiger Explorer 1200 XC ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 - 740277-1 - 2016-2017
Triumph Tiger Explorer 1200 XC ABS 98 CV, 72 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 2013-2014
Triumph Tiger Explorer 1200 XC ABS 98 CV, 72 kw 3cil. V13VG Bastidores: SMTV1F12E9 --SMTV1F12E9 - 740276 2015
Triumph Tiger Explorer 1200 XCA ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XCX ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XCX Low ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XR ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XRT ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XRX ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
Triumph Tiger Explorer 1200 XRX Low ABS 139 CV, 102 kw 3cil. V201 Bastidores: 1 --1 - 2016-2017
