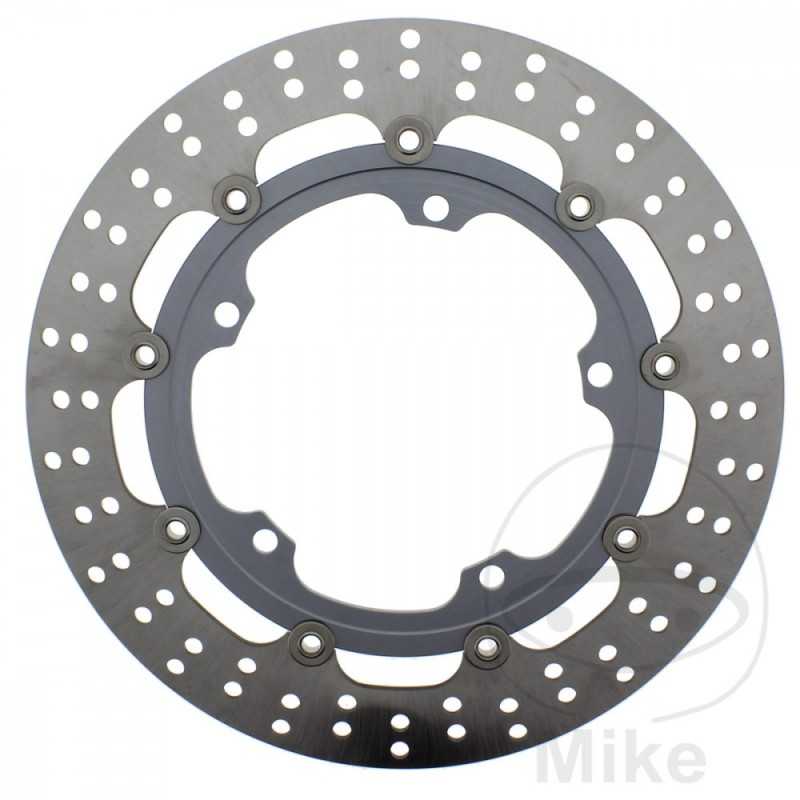

TRW floating brake disc for motorcycle 788.00.43

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

Floating brake discs have titanium anodized aluminum inner rings.

Floating windows don't rattle because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge.

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 150.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
TRIUMPH SPEED TRIPLE 1050 132 CV, 97 KW 3CIL. 515NJ BASTIDORES: SMTTE5855R - 333179-SMTTE5855R - 2007
TRIUMPH SPEED TRIPLE 1050 132 CV, 97 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R - 346970-SMTTE5865R - 2008
TRIUMPH SPEED TRIPLE 1050 132 CV, 97 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R - 419556-SMTTE5865R - 2010
TRIUMPH SPEED TRIPLE 1050 132 CV, 97 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R --SMTTE5865R - 419555 2009
TRIUMPH SPEED TRIPLE 1050 132 CV, 97 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R --SMTTE5865R - 461331 2011
TRIUMPH SPEED TRIPLE 1050 135/98 CV, 99/72 KW 3CIL. 515NV BASTIDORES: SMTTPN105G - 461332-SMTTPN105G - 2011
TRIUMPH SPEED TRIPLE 1050 135/98 CV, 99/72 KW 3CIL. 515NV BASTIDORES: SMTTPN105G --SMTTPN105G - 2012-2013
TRIUMPH SPEED TRIPLE 1050 94 ABS 135 CV, 99 KW 3CIL. 515NV BASTIDORES: SMTTPN115G --SMTTPN115G - 2015-2016
TRIUMPH SPEED TRIPLE 1050 98 CV, 72 KW 3CIL. 515NJ BASTIDORES: SMTTE5855R - 333179-SMTTE5855R - 346969 2007
TRIUMPH SPEED TRIPLE 1050 98 CV, 72 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R - 346970-SMTTE5865R - 2008
TRIUMPH SPEED TRIPLE 1050 98 CV, 72 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R - 419556-SMTTE5865R - 2010
TRIUMPH SPEED TRIPLE 1050 98 CV, 72 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R --SMTTE5865R - 419555 2009
TRIUMPH SPEED TRIPLE 1050 98 CV, 72 KW 3CIL. 515NJ BASTIDORES: SMTTE5865R --SMTTE5865R - 461331 2011
TRIUMPH SPEED TRIPLE 1050 ABS 135 CV, 99 KW 3CIL. 515NV BASTIDORES: SMTTPN115G --SMTTPN115G - 2014-2016
TRIUMPH SPEED TRIPLE 1050 ABS 135/98 CV, 99/72 KW 3CIL. 515NV BASTIDORES: SMTTPN115G - 461332-SMTTPN115G - 2011
TRIUMPH SPEED TRIPLE 1050 ABS 135/98 CV, 99/72 KW 3CIL. 515NV BASTIDORES: SMTTPN115G --SMTTPN115G - 2012-2013
TRIUMPH SPEED TRIPLE 1050 R 94 ABS 135 CV, 99 KW 3CIL. 515NV BASTIDORES: SMTTPN135G --SMTTPN135G - 735336 2015-2016
TRIUMPH SPEED TRIPLE 1050 R ABS 135 CV, 99 KW 3CIL. 515NV BASTIDORES: SMTTPN135G --SMTTPN135G - 2014
TRIUMPH SPEED TRIPLE 1050 R ABS 135 CV, 99 KW 3CIL. 515NV BASTIDORES: SMTTPN135G --SMTTPN135G - 735336 2015-2016
TRIUMPH SPEED TRIPLE 1050 R ABS 140 CV, 103 KW 3CIL. NN01 BASTIDORES: 01 - 735337 henceforth1 - 2016
TRIUMPH SPEED TRIPLE 1050 R ABS 140 CV, 103 KW 3CIL. NN01 BASTIDORES: 01 - henceforth1 - 2017-2018
TRIUMPH SPEED TRIPLE 1050 S ABS 140 CV, 103 KW 3CIL. NN01 BASTIDORES: 01 - henceforth1 - 2016-2017
TRIUMPH SPRINT 1050 GT ABS 130 CV, 96 KW 3CIL. 215ND BASTIDORES: SMTTF6885J --SMTTF6885J - 2010-2014
TRIUMPH SPRINT 1050 GT SE ABS 130 CV, 96 KW 3CIL. - BASTIDORES: --- 2017
TRIUMPH TROPHY 1215 ABS 134 CV, 99 KW 3CIL. V13VH BASTIDORES: SMTV2H10E9 --SMTV2H10E9 - 2013-2014
TRIUMPH TROPHY 1215 SE ABS 134 CV, 99 KW 3CIL. V13VH BASTIDORES: SMTV2H11E9 --SMTV2H11E9 - 2013-2017
