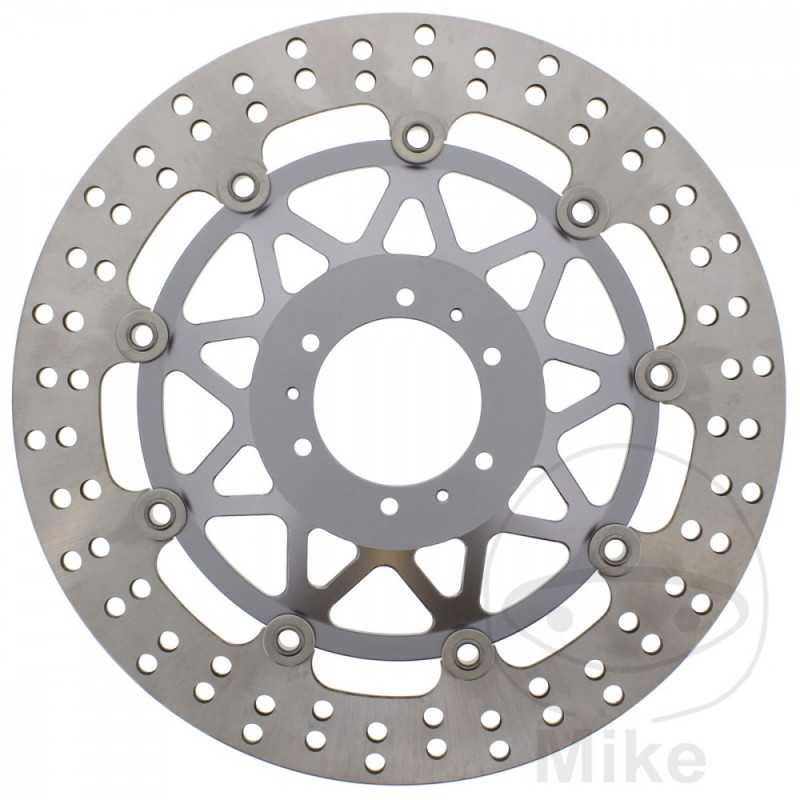

TRW floating brake disc for motorcycle 788.00.38

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

Floating brake discs have titanium anodized aluminum inner rings.

Floating windows don't rattle because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Allround Floating Brake Disc

- Round outer contour with perforated braking edge.

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 296MM
INNER DIAMETER: 62MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
PADDING: 17.7MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 1100 EX SA ABS LLANTA DE RADIOS 90 CV, 66 KW 4CIL. SC65C E BASTIDORES: JH2 SC65C-EK000001-- 2014-2016
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 6 BASTIDORES: JH2 RC46A-6M800001-JH2 RC46A-6M999999 2006-2007
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 8 BASTIDORES: JH2 RC46A-8K010001-- 2008
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 8 BASTIDORES: JH2 RC46A-8M000001-- 2008
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 9 BASTIDORES: --- 2009-2010
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 2 BASTIDORES: JH2 RC46C-2M400001-JH2 RC46C-2M499999 2002
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 3 BASTIDORES: JH2 RC46C-3M500001-JH2 RC46C-3M599999 2003
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 4 BASTIDORES: JH2 RC46C-4M600001-JH2 RC46C-4M699999 2004
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 5 BASTIDORES: JH2 RC46C-5M700001-- 2005
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 6 BASTIDORES: JH2 RC46C-6M800001-JH2 RC46C-6M899999 2006-2007
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 8 BASTIDORES: JH2 RC46C-8K010001-- 2008
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 8 BASTIDORES: JH2 RC46C-8M000001-- 2008
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 9 BASTIDORES: --- 2009-2013
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A B BASTIDORES: JH2 RC60A-BK000001-JH2 RC60A-BK099999 2011
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A C BASTIDORES: JH2 RC60A-CK100001-JH2 RC60A-CK199999 2012
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A D BASTIDORES: JH2 RC60A-DK200001-- 2013-2014
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 4 BASTIDORES: VTM SD02C henceforth4E500001-VTM SD02C henceforth4E599999 2004
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 5 BASTIDORES: VTM SD02C henceforth5E510001-- 2005
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 6 BASTIDORES: VTM SD02C henceforth6E810001-- 2006
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 7 BASTIDORES: VTM SD02C henceforth7E820001-VTM SD02C henceforth7E829999 2007
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 8 BASTIDORES: VTM SD02C henceforth8E830001-VTM SD02C henceforth8E839999 2008
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C 9 BASTIDORES: VTM SD02C-9E840001-VTM SD02C-9E849999 2009
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02C A BASTIDORES: VTM SD02C-AE850001-- 2010
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02D 4 BASTIDORES: VTM SD02D henceforth4E000001-VTM SD02D henceforth4E099999 2004
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02D 5 BASTIDORES: VTM SD02D henceforth5E000001-- 2005
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD02D 6 BASTIDORES: VTM SD02D henceforth6E000001-- 2006
HONDA XL 1000 VA VARADERO ABS 94 CV, 69 KW 2CIL. SD03B B BASTIDORES: ZDC SD03B-BF010001-- 2011-2013
