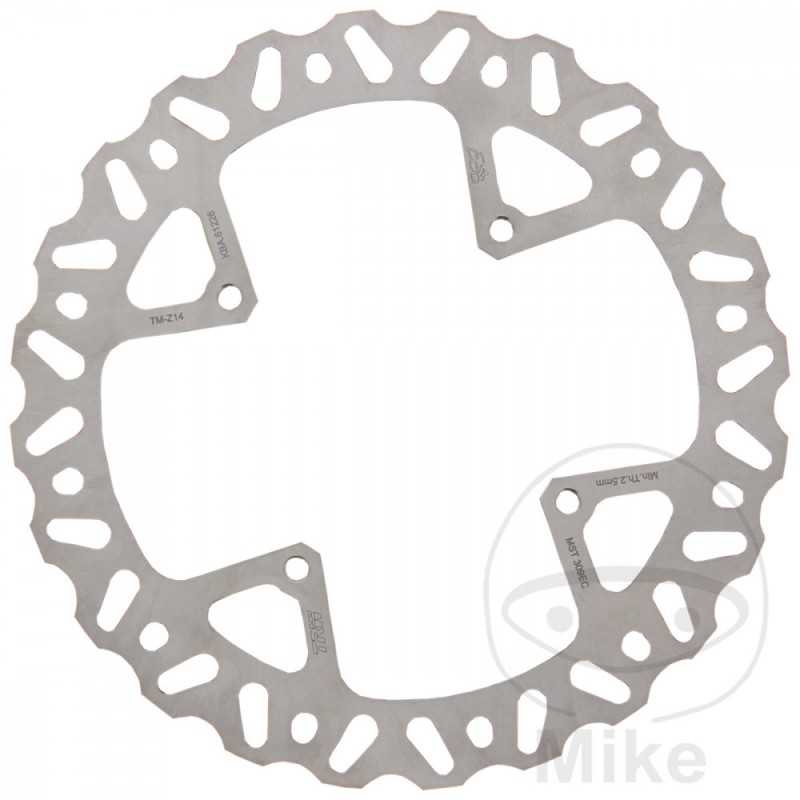

TRW Rigid brake disc for motorcycle OFFROAD 788.00.30

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

suitable for offroad

- Alloy steel hardened for long life.

- Can be combined with all off-road surface mixes.

- Attractive design and high-quality workmanship.

- Perfect response, excellent dosage.

- Extremely attractive price level.
OUTSIDE DIAMETER: 218.5MM
INSIDE DIAMETER: 95MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.5 MM
thickness: 3mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM SX 85 24 CV, 18 kw 1cil. - Bastidores: --- 2003-2006
KTM SX 85 17/14 pulgadas 1cil. - Bastidores: --- 2017-2020
KTM SX 85 17/14 pulgadas 24 CV, 18 kw 1cil. - Bastidores: --- 2007-2012
KTM SX 85 17/14 pulgadas 26 CV, 19 kw 1cil. - Bastidores: --- 2013-2016
KTM SX 85 19/16 pulgadas 1cil. - Bastidores: --- 2018-2020
KTM SX 85 19/16 pulgadas 24 CV, 18 kw 1cil. - Bastidores: --- 2007-2011
