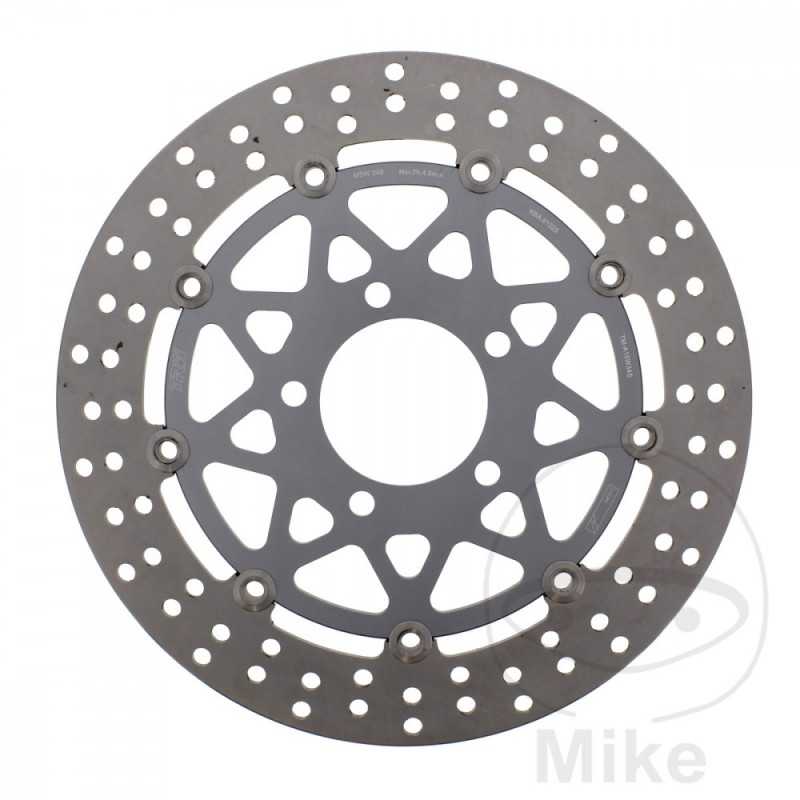

TRW floating brake disc for motorcycle 788.00.08

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

The floating brake discs have aluminum-milled titanium-colored anodized inner rings.

Floating panels do not vibrate because high quality stainless steel floats are held in tension with corrugated washers.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas Offroad Floating Brake Disc

- Round outer contour with perforated braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 69MM
CIRCLE SIZE: 91 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSF 650 BANDIT 78 CV, 57 KW 4CIL. WVB51121 K5 BASTIDORES: B51121 henceforth0100001-B51121 henceforth0107993 2005
SUZUKI GSF 650 BANDIT 78 CV, 57 KW 4CIL. WVB51121 K6 BASTIDORES: B51121 henceforth0107994-- 2006
SUZUKI GSF 650 S BANDIT 78 CV, 57 KW 4CIL. WVB51111 K5 BASTIDORES: B51111 henceforth0100001-B51111 henceforth0105480 2005
SUZUKI GSF 650 S BANDIT 78 CV, 57 KW 4CIL. WVB51111 K6 BASTIDORES: B51111 henceforth0105481-- 2006
SUZUKI GSF 650 SA BANDIT ABS 78 CV, 57 KW 4CIL. WVB51131 K5 BASTIDORES: B51131 henceforth0100001-B51131 henceforth0104939 2005
SUZUKI GSF 650 SU BANDIT 34 CV, 25 KW 4CIL. WVB52111 K5 BASTIDORES: B52111 henceforth0100001-B52111 henceforth0100013 2005
SUZUKI GSF 650 SU BANDIT 34 CV, 25 KW 4CIL. WVB52111 K6 BASTIDORES: B52111 henceforth0100014-- 2006
SUZUKI GSF 650 SUA BANDIT ABS 34 CV, 25 KW 4CIL. WVB52131 K5 BASTIDORES: B52131 henceforth0100001-B52131 henceforth0100040 2005
SUZUKI GSF 650 U BANDIT 34 CV, 25 KW 4CIL. WVB52121 K5 BASTIDORES: B52121 henceforth0100001-B52121 henceforth0100312 2005
SUZUKI GSF 650 U BANDIT 34 CV, 25 KW 4CIL. WVB52121 K6 BASTIDORES: B52121 henceforth0100313-- 2006
SUZUKI GSX 750 F 92 CV, 68 KW 4CIL. WVAK1112 K3 BASTIDORES: AK1112 henceforth0113121-AK1112 henceforth0115412 2003
SUZUKI GSX 750 F 92 CV, 68 KW 4CIL. WVAK1112 K4 BASTIDORES: AK1112 henceforth0115413-AK1112 henceforth0117256 2004
SUZUKI GSX 750 F 92 CV, 68 KW 4CIL. WVAK1112 K5 BASTIDORES: AK1112 henceforth0117257-AK1112 henceforth0118282 2005
SUZUKI GSX 750 F 92 CV, 68 KW 4CIL. WVAK1112 K6 BASTIDORES: AK1112 henceforth0118283-- 2006
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K3 BASTIDORES: BY1111 henceforth0100001-BY1111 henceforth0106361 2003
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K4 BASTIDORES: BY1111 henceforth0106362-BY1111 henceforth0108929 2004
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K5 BASTIDORES: BY1111 henceforth0108930-BY1111 henceforth0110433 2005
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K6 BASTIDORES: BY1111 henceforth0110434-BY1111 henceforth0111673 2006
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K7 BASTIDORES: BY1111 henceforth0111674-BY1111 henceforth0112445 2007
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K8 BASTIDORES: BY1111 henceforth0112446-BY1111 henceforth0113287 2008
SUZUKI SV 650 72 CV, 53 KW 2CIL. WVBY1111 K9 BASTIDORES: BY1111 henceforth0113288-- 2009
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K3 BASTIDORES: BY1321 henceforth0100001-BY1321 henceforth0106875 2003
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K4 BASTIDORES: BY1321 henceforth0106876-BY1321 henceforth0110275 2004
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K5 BASTIDORES: BY1321 henceforth0110276-BY1321 henceforth0112390 2005
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K6 BASTIDORES: BY1321 henceforth0112391-BY1321 henceforth0114477 2006
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K7 BASTIDORES: BY1321 henceforth0114478-BY1321 henceforth0114922 2007
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K8 BASTIDORES: BY1321 henceforth0114923-BY1321 henceforth0115496 2008
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 K9 BASTIDORES: BY1321 henceforth0115497-BY1321 henceforth0115790 2009
SUZUKI SV 650 S 72 CV, 53 KW 2CIL. WVBY1321 L0 BASTIDORES: BY1321 henceforth0115791-- 2010-2016
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K3 BASTIDORES: BY2221 henceforth0100001-BY2221 henceforth0102898 2003
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K4 BASTIDORES: BY2221 henceforth0102899-BY2221 henceforth0104300 2004
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K5 BASTIDORES: BY2221 henceforth0104301-BY2221 henceforth0106186 2005
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K6 BASTIDORES: BY2221 henceforth0106187-BY2221 henceforth0107332 2006
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K7 BASTIDORES: BY2221 henceforth0107333-BY2221 henceforth0108240 2007
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K8 BASTIDORES: BY2221 henceforth0108241-BY2221 henceforth0109065 2008
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 K9 BASTIDORES: BY2221 henceforth0109066-BY2221 henceforth0109494 2009
SUZUKI SV 650 SU 34 CV, 25 KW 2CIL. WVBY2221 L0 BASTIDORES: BY2221 henceforth0109495-- 2010
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K3 BASTIDORES: BY2111 henceforth0100001-BY2111 henceforth0100639 2003
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K4 BASTIDORES: BY2111 henceforth0100640-BY2111 henceforth0101997 2004
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K5 BASTIDORES: BY2111 henceforth0101996-BY2111 henceforth0103959 2005
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K6 BASTIDORES: BY2111 henceforth0103960-BY2111 henceforth0105575 2006
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K7 BASTIDORES: BY2111 henceforth0105576-BY2111 henceforth0106887 2007
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K8 BASTIDORES: BY2111 henceforth0106888-BY2111 henceforth0107793 2008
SUZUKI SV 650 U 34 CV, 25 KW 2CIL. WVBY2111 K9 BASTIDORES: BY2111 henceforth0107794-- 2009
SUZUKI VLR 1800 C1800 R INTRUDER 114 CV, 84 KW 2CIL. WVCT1111 K8 BASTIDORES: CT1111 henceforth0100001-CT1111 henceforth0101359 2008
SUZUKI VLR 1800 C1800 R INTRUDER 114 CV, 84 KW 2CIL. WVCT1111 K9 BASTIDORES: CT1111 henceforth0101360-CT1111 henceforth0102281 2009
SUZUKI VLR 1800 C1800 R INTRUDER 114 CV, 84 KW 2CIL. WVCT1111 L0 BASTIDORES: CT1111 henceforth0102282-CT1111 henceforth0102499 2010
SUZUKI VLR 1800 C1800 R INTRUDER 114 CV, 84 KW 2CIL. WVCT1111 L1 BASTIDORES: CT1111 henceforth0102500-- 2011-2013
SUZUKI VLR 1800 C1800 RT INTRUDER TOURING 114 CV, 84 KW 2CIL. WVCT1111 K9 BASTIDORES: CT1111 henceforth0101860-CT1111 henceforth0102275 2009
SUZUKI VLR 1800 C1800 RT INTRUDER TOURING 114 CV, 84 KW 2CIL. WVCT1111 L0 BASTIDORES: CT1111 henceforth0102276-CT1111 henceforth0102458 2010
SUZUKI VLR 1800 C1800 RT INTRUDER TOURING 114 CV, 84 KW 2CIL. WVCT1111 L1 BASTIDORES: CT1111 henceforth0102459-- 2011-2012
SUZUKI VLR 1800 C1800 RT INTRUDER TOURING 114 CV, 84 KW 2CIL. WVCT1112 K8 BASTIDORES: CT1112 henceforth0101271-CT1111 henceforth0101359 2008
SUZUKI VLR 1800 C1800 RU2 INTRUDER 106 CV, 78 KW 2CIL. WVCT2111 K8 BASTIDORES: CT2111 henceforth0100001-CT2111 henceforth0100221 2008
SUZUKI VLR 1800 C1800 RUF INTRUDER 106 CV, 78 KW 2CIL. WVCT2111 K9 BASTIDORES: CT2111 henceforth0100222-CT2111 henceforth0100272 2009
SUZUKI VLR 1800 C1800 RUF INTRUDER 106 CV, 78 KW 2CIL. WVCT2111 L0 BASTIDORES: CT2111 henceforth0100273-- 2010
SUZUKI VLR 1800 C1800 RUF INTRUDER 106 CV, 78 KW 2CIL. WVCT2111 L1 BASTIDORES: CT2111 henceforth0100273-- 2011-2012
SUZUKI VZ 1500 M1500 INTRUDER 80 CV, 59 KW 2CIL. WVCU1111 K9 BASTIDORES: CU1111 henceforth0100001-CU1111 henceforth0101160 2009
SUZUKI VZ 1500 M1500 INTRUDER 80 CV, 59 KW 2CIL. WVCU1111 L0 BASTIDORES: CU1111 henceforth0101161-- 2010-2011
